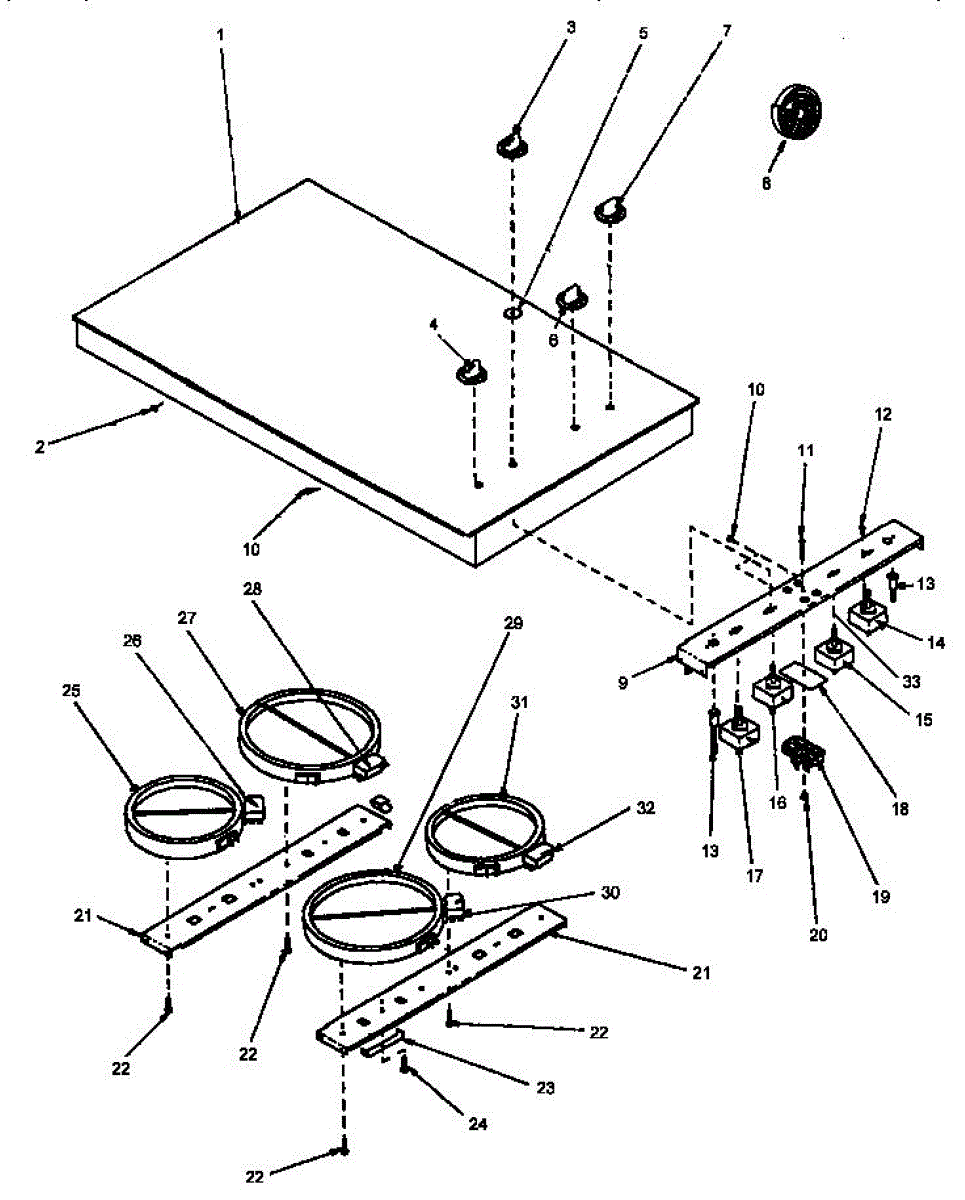

Parts for Amana AK2H30E2-P1131557N: Cooktop Assembly Parts

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This part has been discontinued and is no longer available.

This surface burner infinite switch sits behind the knob and regulates power to the cooktop/range element. Replacing a failed switch restores accurate heat settings so the burner can turn on, modulate properly, and shut off as expected.

• Regulates on/off cycling of the surface element to achieve the selected heat level
• Sends power to the burner based on knob position
• Common failure symptoms: burner won't heat, only runs on high, won't shut off, or heats erratically
• Knob turns but the burner does not respond

• Disconnect power at the breaker before servicing; surface elements operate at high voltage
• Pull off the knob and remove the control panel/backguard as needed to access the switch
• Transfer wires one at a time from the old switch to the matching terminals on the new switch
• Align the shaft to fit your knob, reassemble the panel, restore power, and test operation

Restore reliable, even heat to a single cooking zone with this surface heating element. It replaces a failed top burner element on an electric range or cooktop so pots and pans heat consistently for everyday cooking. What it does:

• Supplies controlled heat to one cooktop burner zone
• Helps resolve: burner won't heat, intermittent heating, or very slow heat-up
• Can address uneven heating or visible damage to the element
• Replaces an open/failed element to restore normal cooking performance

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model's service manual; support the cooktop if lifting a glass top
• Note wire locations and transfer connections one at a time to the new element
• Secure the element with existing brackets/clips as designed, then test operation before reassembly

This part has been discontinued by the manufacturer and is no longer available.
