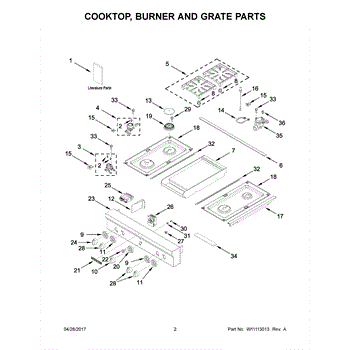

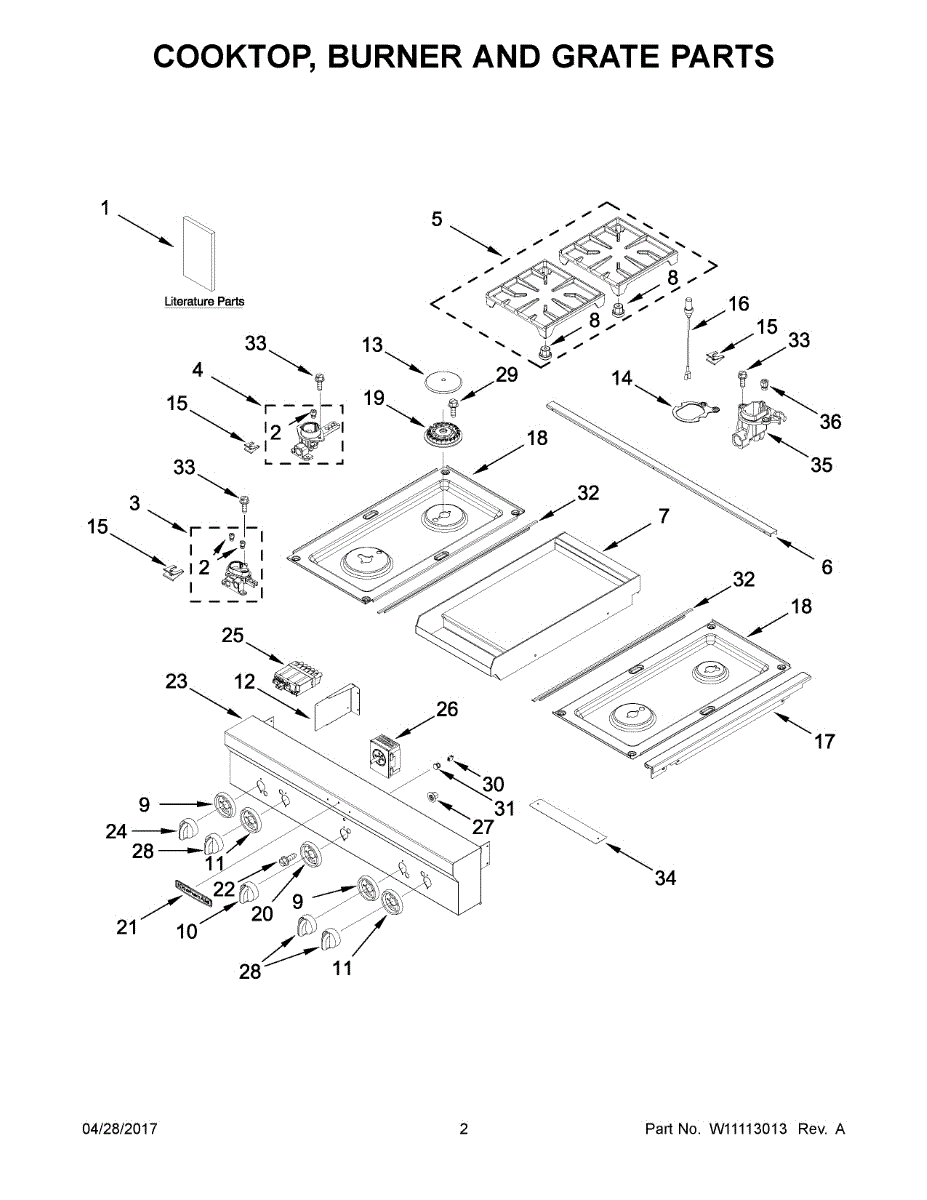

Parts for Kitchenaid KGCU463VSS02: 02 - Cooktop, Burner And Grate Parts

This orifice spud directs gas flow into the burner for consistent ignition and flame control. It restores proper burner performance so cooking heats evenly and burners light reliably. What it does:

• Seats the burner orifice to control gas flow to the burner
• Helps maintain a steady, even flame for consistent cooking
• Can resolve weak or uneven flames and burners that struggle to light
• Works as the sealed interface between the gas manifold and burner tube

• One orifice spud

• Turn off the gas supply and disconnect power before servicing
• Inspect surrounding seals and gaskets for damage and replace if necessary
• Use basic hand tools; avoid overtightening to prevent damage

This orifice is the small, precision-opening nozzle that meters gas flow to a range or cooktop burner for proper flame performance. It helps restore steady ignition and consistent cooking heat when a burner is underperforming. What it does:

• Directs and meters gas to the burner to produce a stable flame
• Helps correct weak, uneven, or yellow flames caused by a worn or damaged nozzle
• Supports consistent burner output for predictable cooking results
• Works as the calibrated passage between the valve and burner head

• One orifice

• Install only after disconnecting gas supply and following appliance shutoff procedures
• Tighten to OEM torque recommendations and use thread sealant only where specified by manufacturer
• Test for leaks with a soap solution or approved gas leak detector before use

This Holder (ORF) secures the related component in place to maintain proper alignment and reliable operation. Replacing a worn or broken holder restores stable mounting and prevents rattling or intermittent function. What it does:

• Secures the ORF component to the appliance chassis to keep parts aligned
• Prevents movement that can cause noise, misalignment, or intermittent operation
• Restores a solid mounting point if the original holder is cracked or broken
• Helps maintain proper spacing so adjacent parts operate without obstruction

• One holder (ORF)

• Disconnect power (and water if applicable) before starting repair
• Basic hand tools typically required; access may involve removing nearby panels
• Inspect surrounding clips and fasteners; replace if damaged to ensure secure fit

The Grate Pad is an OEM replacement part for  Whirlpool gas ranges. This set of 4 pads is designed to fit securely underneath the grates above the burner pans. The grate pad works to protect the grates from scratches and prolong their service life. It also helps distribute heat evenly across cookware during cooking.

Causes of a bad grate pad can include soiling or staining that is not removable through normal cleaning. Exposure to high heat over many years could cause cracks or brittleness in the material.

Symptoms include:

• Scratches or pits appearing on the grate surface
• Warping of the pad shape makes secure fitting difficult
• The pad deteriorating or flaking off in pieces

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other gas ranges

This burner cap sits on top of the surface burner head to shape the flame and shield the head from spills. Replacing a damaged or missing cap helps restore even heating, reliable ignition, and the cooktop's original appearance.

• Covers the burner head and disperses flame for more even cooking
• Protects burner head and ports from food and liquid spills
• Helps maintain proper ignition and a steady blue flame
• Helps with symptoms like uneven/yellow flame, delayed ignition, or poor simmer

• Allow the cooktop to cool completely before handling
• Disconnect power and shut off gas
• Clean the burner head and clear ports before seating the cap
• Center the cap so it sits level and flush; misalignment can affect ignition and flame

This gas surface burner cap sits on top of the burner head to shape an even flame and shield the burner from spills. Replace a missing, chipped, or warped cap to restore proper flame pattern and appearance.

• Directs and evens the flame across the burner for consistent heating
• Shields the burner head and ports from spills and debris
• Helps promote reliable ignition when properly seated on the burner head
• Common signs it's needed: uneven or yellow flames, delayed ignition, flames lifting or noisy, visible chips/warping

• Ensure the cooktop/range is cool; disconnect power and shut off gas if working near igniters
• Lift off the old cap and clean the burner head/ports; do not enlarge or damage the ports
• Place the new cap on the matching burner, centered and seated flat; do not interchange sizes between burners
• Light the burner and confirm a steady, even blue flame; reseat the cap if the flame is uneven

This burner cap covers the auxiliary (small) gas burner on your cooktop or range. It shapes the flame for even heating and protects the burner head—helping restore reliable ignition and a clean, finished look.

• Sits on the auxiliary burner head to shape and contain the flame
• Promotes even heating and dependable ignition when properly centered
• Shields the burner head from spills and debris
• Replace if the original cap is missing, warped, chipped, or discolored
• Typical symptoms: uneven or yellow flame, delayed ignition or continuous clicking without lighting, weak heat on that burner

• Shut off gas and power; allow the surface to cool before servicing
• Lift off the old cap, clean the burner head, and place the new cap over the auxiliary burner
• Align any locating features so the cap sits flat and centered; misalignment can prevent ignition or cause a yellow flame

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

This surface igniter lights gas burners on compatible ranges so burners ignite quickly and reliably. Replaces a cracked, worn or non-sparking igniter to restore normal ignition and help your cooktop operate safely. What it does:

• Sends the spark that ignites the burner when the control knob is turned
• Commonly replaces igniters that click repeatedly, spark without lighting, or don't spark at all
• Works with the burner head and valve to initiate flame during startup
• Helps prevent delayed ignition and assists consistent burner performance

• One surface igniter

• Disconnect power and shut off gas supply before starting any service
• Handle the ceramic igniter element carefully; it is fragile and can crack if dropped or flexed
• Inspect wiring and connector for heat damage; replace connectors or harnesses if corroded

This cooktop glass surface is the smooth top replacement that restores a clean, even cooking area and holds burners and controls in place. It helps maintain safe, efficient stove operation and a finished look for the range. What it does

• Provides the finished glass cooking surface that supports burners and control components.
• Restores a sealed, easy-to-clean area for normal cooking use.
• Common replacement for cracked, chipped or heavily scratched tops that affect appearance or function.
• Helps prevent food and spills from reaching internal components when intact.

• Disconnect power (and gas if applicable) to the appliance before starting work.
• Handle the glass carefully—use gloves and eye protection to avoid cuts from edges or broken pieces.
• Installation may require removing burners, controls, and trim; keep screws and small parts organized.

This auxiliary burner head restores the small/simmer burner on a gas cooktop to proper flame shape and heat delivery, helping improve low-heat cooking control and consistent simmering. What it does:

• Directs and disperses gas to create a stable, even flame for the auxiliary (small) burner.
• Replaces damaged, warped or clogged burner heads that can cause uneven heating.
• Helps address weak, spotty or irregular flames on the small/simmer burner.
• Works with the burner cap and base to maintain correct flame pattern and efficiency.

• Turn off the appliance power and gas supply before servicing; follow all safety precautions.
• Remove the grate and burner cap, lift off the old burner head, then set the new head into place ensuring it seats correctly.
• After reinstalling the cap and grate, test for proper ignition and flame pattern; if you smell gas or see persistent problems, stop.

This burner head distributes gas evenly around the burner for a steady flame and reliable ignition. Replace a worn or clogged head to restore even heating, proper simmering, and consistent burner performance on your gas range or cooktop.

• Spreads gas from the orifice through ports to create an even, controlled flame ring
• Works with the burner cap and igniter/electrode for quick, consistent lighting
• Replace if ports are clogged, corroded, cracked, or warped causing uneven/yellow flames, delayed ignition, or popping
• Can help when the igniter sparks but the burner won't light or the flame won't spread

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap, then lift off the old head (some models use a retaining screw—reuse existing hardware)
• Align the new head with the orifice and igniter; seat fully and level
• Reassemble and test for proper ignition and flame; do not enlarge or clean ports with hard objects

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

This infinite switch is the temperature control for a cooktop griddle, letting you adjust heat smoothly for even cooking. Replaces a worn or failed griddle control to restore reliable temperature regulation and consistent results. What it does:

• Regulates griddle heat by providing variable power levels to the element
• Helps restore proper heating when griddle stays too cool, won't heat, or has inconsistent temperature
• Operates as the user control input for turning heat up or down on the griddle zone
• Compatible with systems that use an infinite (continuously variable) control for temperature adjustment

• One infinite switch (griddle control) as shown

• Disconnect power to the appliance before attempting service to avoid shock hazard
• Access may require removing cooktop or control panel
• Verify harness connector orientation and secure mounting; replace any damaged wiring or fasteners

This control knob replaces a worn, cracked, or missing push-on knob so you can turn and set appliance controls easily. It restores a secure grip and clear control feel for smooth operation. What it does:

• Fits onto the control shaft to allow manual selection of cycles, temperatures, or settings
• Restores a solid grip when the original knob is stripped, cracked, or loose
• Provides precise rotation and tactile feedback for accurate setting changes
• Helps prevent accidental setting changes by providing a secure fit

• Disconnect power to the appliance before servicing.
• This knob installs by pushing onto the splined control shaft; pull straight off to remove.
• Do not force; align splines before seating to avoid damage.
• If knob will not seat or the shaft is damaged, inspect/replace the control shaft or console components.

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

This indicator light lamp assembly notifies you when a control or function is active and restores visible status feedback for your appliance. It's a small, direct-replacement lamp used on control panels and status indicators. What it does:

• Illuminates control-panel indicators so you can see operating status and selected settings.
• Replaces a dim, flickering, or non-working indicator light.
• Helps diagnose control and user-interface issues by restoring visible feedback.
• Fits into the panel socket and connects to the existing wiring harness.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Access typically requires removing the control or trim panel; keep screws and fasteners organized.
• Handle the lamp and lens carefully to avoid damage; do not force-fit.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
