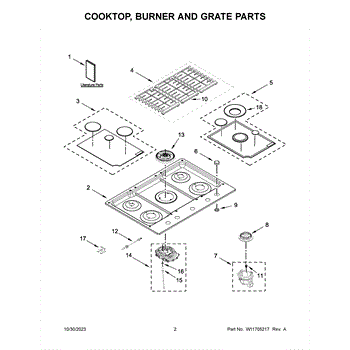

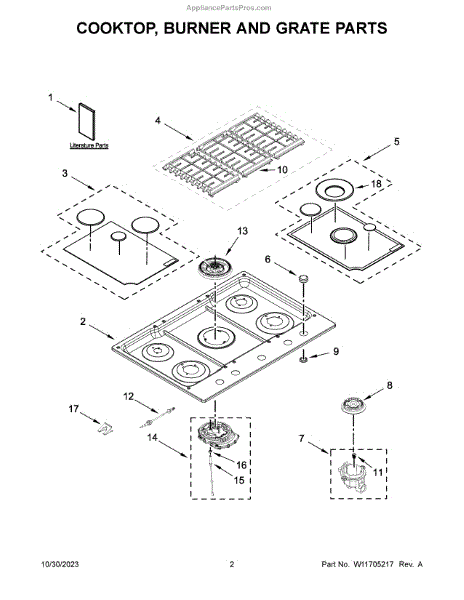

Parts for Kitchenaid KCGS550ESS06: Cooktop, Burner And Grate Parts

This front inner panel is the structural sheet that forms the inside of the appliance's front assembly. Replacing a damaged panel restores proper fit, alignment, and appearance so the front opens, closes, and seals as designed. What it does:

• Forms the inner structural surface of the front assembly
• Provides mounting points for attached hardware and trim
• Helps maintain correct alignment for smooth opening/closing
• Replaces panels that are bent, rusted, or cracked, which can cause rattles, gaps, or poor fit

• One front inner panel

• Disconnect power; shut off water or gas before servicing
• Support the door/drawer/front while removing fasteners to prevent strain or damage
• Handle sharp metal edges; wear cut-resistant gloves and eye protection
• Transfer original screws, clips, insulation, seals, and trim; check alignment before fully tightening

This burner cap sits on top of the gas burner head to shape the flame and shield the burner from spills. Replacing a worn, chipped, or missing cap restores smooth ignition, even heat distribution, and a clean, finished look.

• Shapes and spreads the flame evenly across cookware
• Protects the burner head and ports from spills and debris
• Helps ensure reliable ignition when properly seated
• Common symptoms include uneven or yellow flames, delayed ignition, sputtering flame, or a visibly damaged/missing cap

• Allow the cooktop/range to cool; disconnect power and turn off gas if working near gas components
• Lift off the old cap and clean the burner head/ports of any residue
• Center the new cap on the burner head so it sits flat and fully seated
• Use the correct cap for the specific burner position; test for a steady, even blue flame

This genuine replacement control knob attaches to the control shaft on your appliance so you can turn and set functions as intended. Replace a cracked, stripped, or missing knob to restore smooth operation and a clean, factory look.

• Couples to the control stem to select settings and adjust levels
• Restores proper grip and turning action when the original is worn or broken
• Common symptoms it can address: knob cracked or missing, loose or slipping, won't turn the control, stripped insert
• Note: If the underlying control stem/shaft is damaged, additional parts may be required

• Disconnect power and allow the appliance to cool before servicing
• Pull the old knob straight off the stem; avoid prying that could damage the shaft
• Align the new knob with the flat/indicator on the stem and press firmly into place
• Verify smooth operation and correct pointer alignment before use

This Holder (ORF) is a small mounting bracket that secures the ORF assembly in place, helping keep related components aligned for reliable operation. It's a direct-fit replacement designed to restore proper part positioning. What it does

• Anchors the ORF assembly so connected components remain stable during use
• Prevents loosening and misalignment that can cause rattling or improper operation
• Helps maintain correct clearance and part positioning within the appliance
• Works silently in the background to support neighboring parts and assemblies

• Disconnect power before beginning any repair to avoid electrical shock
• Remove surrounding panels or trim as needed to access the ORF area; keep fasteners organized
• Inspect mating surfaces and related parts; replace any damaged clips or screws for a secure fit

This is the gas cooktop/range rapid burner head. It directs gas and airflow to create an even, reliable flame on the large "rapid" burner, helping your cooktop heat quickly and cook evenly.

• Distributes gas through calibrated ports to form a stable flame on the rapid burner
• Can help resolve weak or uneven flames, delayed ignition, or frequent burner re-lighting
• Replacing a damaged, clogged, or warped head can restore proper burner performance
• Designed to fit the rapid (largest) burner position on compatible units

• Disconnect power and shut off gas before servicing
• Remove the burner cap, lift off the old head, and clean the mounting surface
• Align the new head with the orifice and locating tabs; seat it flat and secure any screws if present
• Reassemble, restore gas/power, and test for proper ignition and flame

Auxiliary burner head that distributes flame on the small simmer burner of gas cooktops and ranges. Replaces a warped, clogged, or damaged head to restore reliable ignition, correct flame pattern, and consistent low-heat performance.

• Directs the gas/air mix through flame ports for even simmer heat
• Helps restore proper ignition when the old head is fouled or damaged
• Can help with delayed ignition or repeated clicking due to misaligned/blocked ports

• Shut off gas supply and disconnect power; allow the surface to cool completely
• Remove grate and burner cap; lift off the old head
• Clean the burner base and align the new head with the orifice and igniter; seat flat
• Reinstall the cap and grate; restore gas/power and verify flame quality and ignition

This burner head sits atop the semi-rapid gas burner on the cooktop, shaping the flame and distributing heat evenly to your cookware for reliable day-to-day cooking performance.

• Directs gas and air mixture to create a stable, even flame on the semi-rapid burner
• Can help address uneven flames, poor ignition, or weak heating at that burner position
• Restores proper heat distribution when the original head is clogged, warped, or damaged
• Designed to fit the semi-rapid burner location as specified by the manufacturer

• Disconnect power and shut off gas before servicing
• Ensure the burner area is clean; remove debris that could affect flame pattern
• Align the ports and locating features carefully; do not overtighten any fasteners
• After installation, check for proper ignition and a consistent blue flame

The Knob Bezel is an OEM part for Whirlpool ranges and cooktops. It serves as the decorative and functional trim piece around the control knobs, helping to protect the appliance's surface and providing a clear indication of knob positions.

You should replace this knob bezel if it becomes damaged or worn out. Causes of a bad knob bezel include wear and tear from frequent use, exposure to cleaning chemicals, or accidental impact that causes cracking or discoloration. Keeping the knob bezel in good condition ensures easy operation and a neat appearance of the control panel.

Symptoms of a bad knob bezel include:

• Cracks or breaks in the bezel
• Discoloration or fading of markings
• Loose or unstable knobs
• Difficulty in accurately adjusting the controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner grate replaces a damaged or missing grate on compatible gas ranges, restoring a stable surface for cookware and helping ensure safe, even cooking. Durable design supports pots and pans during normal use. What it does:

• Provides a stable, heat-resistant platform for cookware above a gas burner
• Replaces cracked, warped, or missing grates that cause pots to wobble
• Helps maintain correct burner flame contact for consistent cooking
• Restores stovetop usability when original grate is damaged or removed

• One burner grate

• Allow the range and burners to cool completely before handling
• This is a lift-off part on most ranges — no tools typically required; align and set into place
• Inspect neighboring components (burner caps, ignition ports) for damage while grates are removed
• If you smell gas or detect a leak, stop.

This orifice spud is the sealed gas fitting that meters fuel to an oven burner, helping maintain a steady, correct flame for consistent baking and roasting performance. Replace a damaged or clogged spud to restore proper oven heating. What it does:

• Controls the flow of gas from the valve to the oven burner for a steady flame
• Helps maintain consistent oven temperature and reliable heating
• Can prevent weak, uneven, or intermittent burner flames when functioning properly
• Works as the interface between the gas valve/orifice holder and the burner tube

• One orifice spud

• Turn off the gas supply and unplug the appliance before starting work
• Use appropriate wrench tools and avoid overtightening; inspect seals and fittings for leaks after installation
• If you smell gas, stop; follow all local codes and safety recommendations
• Your appliance's service manual or parts diagram for exact location and removal steps

This orifice spud meters natural gas to the burner for proper flame size and combustion, helping the oven or range heat evenly and operate safely at higher elevations. What it does:

• Replaces the burner orifice that controls gas flow to a specific burner for correct flame appearance and performance
• Helps restore stable ignition and steady flame when the orifice is damaged or clogged
• Can correct weak, uneven, or yellow/sooty flames caused by an incorrect or obstructed orifice
• Used when adjusting for natural gas service at higher altitudes per manufacturer guidance

• Turn off gas supply and power to the appliance before servicing
• Handle small parts carefully and avoid dropping into burner ports

This surface burner head distributes gas to create an even, consistent flame on your range's cooktop. Replacing a damaged or clogged head restores reliable ignition and proper heat on the affected burner. What it does:

• Directs the gas/air mix through flame ports for an even flame pattern
• Works with the spark igniter and burner cap to light the burner
• Helps ensure steady simmering and full burner output
• Worn, corroded, or clogged heads can cause weak, uneven, yellow, or no flame

• 1 surface burner head

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove grate and burner cap, then lift off or unfasten the old head
• Position the new head over the orifice and igniter; secure with the original hardware
• Reinstall the cap and grate, restore gas/power, and verify ignition and flame pattern

This surface burner spark electrode generates the high-voltage spark that lights a cooktop or range burner. Replace it to restore quick, reliable ignition when a burner clicks but won't light or sparks intermittently. What it does

• Creates the ignition spark at the burner head to light gas
• Works with the spark module and switch harness to start the flame
• Common symptoms: burner clicks but won't ignite, intermittent or weak spark, needs a match to light, visible cracks in the ceramic insulator
• A cracked, fouled, or shorting electrode can prevent proper ignition

• 1 surface spark electrode

• Disconnect power and shut off gas; allow the cooktop/range to cool before servicing
• Lift off the burner cap and head to access the electrode; transfer any screws or brackets from the original if needed
• Handle the ceramic insulator carefully; avoid bending the tip
• Reassemble the burner parts, ensure the electrode tip position matches the original, restore power/gas, and test for a strong, consistent spark

This small retaining ring secures a component in place to help keep moving parts aligned and stable during operation. It provides a simple, durable hold to prevent unwanted movement and maintain proper appliance function. What it does:

• Holds shafts, bearings or assemblies in position to prevent axial movement
• Helps maintain alignment of rotating or sliding parts
• Worn or cracked rings can allow parts to shift, causing noise, vibration or binding
• Replacing a damaged ring restores secure fit and reduces related symptoms

• Disconnect power before servicing the appliance to avoid shock or injury
• Use appropriate snap-ring or pliers tools for safe removal and installation
• Inspect mating grooves and surrounding components for wear when replacing the ring

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

This burner cap is the top cover for a gas cooktop surface burner. It helps direct and stabilize the flame so cookware heats evenly and protects the burner head from spills and debris. What it does:

• Sits on the surface burner head to shape and stabilize the gas flame for consistent cooking heat.
• Protects the burner base from food, grease, and spills that can block ports and affect ignition.
• Helps maintain even heat distribution under pots and pans for better cooking performance.
• Can improve ignition and flame pattern when a cracked or warped cap is replaced.

• One replacement burner cap.

• Make sure the cooktop and burner are completely cool before handling or installing.
• Remove old cap, clean the burner head and surrounding area of debris, then set the new cap squarely into place—no tools required.
• Do not use a damaged or cracked cap; replace if warped or corroded.

This oven cavity insulation panel replaces the worn or damaged heat barrier that surrounds the oven liner to help contain cooking heat and improve oven performance. It restores proper thermal protection for the oven cavity and surrounding cabinet. What it does:

• Provides a thermal barrier between the oven liner and exterior cabinet to help contain heat
• Helps the oven hold temperature more consistently during cooking
• Reduces excess exterior surface temperature at the cabinet and control area
• Replaces torn, compressed, or burned insulation that can cause odors or smoke during operation

• High-level replacement: remove oven/free-standing range from enclosure and access oven liner per service manual
• Keep insulation fibers contained; avoid inhalation and skin contact — wear gloves, eye protection, and a dust mask
• Inspect mounting clips and oven liner for damage; replace any damaged fasteners before reassembly

This tie-down bracket secures the appliance during installation so it stays firmly in place. It helps prevent shifting, vibration, or lifting for a solid, stable fit and reliable operation over time.

• Anchors the unit to its opening as designed, helping keep it stable
• Helps reduce movement, vibration, and rattling during use
• Replaces a bent, damaged, or missing bracket to restore a secure install
• Common signs: appliance shifts or rocks, visible gaps/misalignment, loose fit

• Disconnect power; shut off gas before servicing
• Install in the location/orientation specified by your product's installation instructions
• Reuse the model-specific mounting hardware or replace per your manual
• Tighten hardware securely but do not overtighten to avoid damage

This orifice spud meters gas flow to a burner, ensuring the correct flame size and efficient combustion. Replace a worn or damaged spud to restore proper burner performance and consistent heating.

• Controls gas flow to the burner by setting the jet opening
• Helps maintain a steady, properly sized flame
• Common fix for issues like weak, uneven, or noisy flames
• Can resolve problems after conversion or service if the original jet is damaged

• Disconnect power and shut off gas before servicing
• Allow the appliance to cool; remove burner components to access the orifice
• Use the correct size nut driver/wrench; do not overtighten
• After installation, leak-check all connections and verify proper flame
