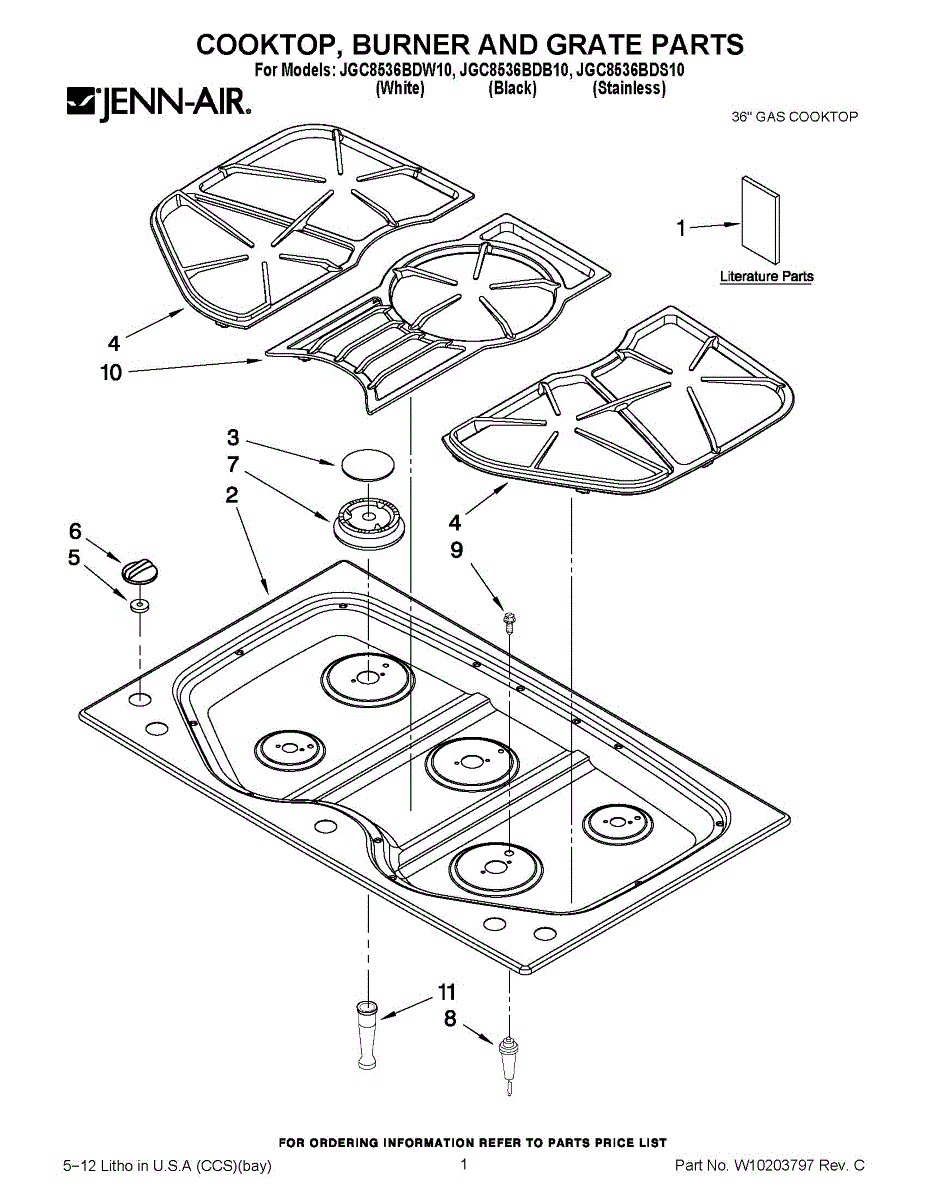

Parts for Maytag JGC8536BDB10: 01 - Cooktop, Burner And Grate Parts

Color: Black. Size: Large.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

This grommet fits into a chassis or cooktop panel opening to cushion and seal where a shaft or component passes through. Replacing a worn grommet helps keep spills and debris out and restores a snug, quiet fit.

• Seals the opening to help prevent moisture and debris from entering the appliance chassis
• Centers and cushions the passing component to reduce vibration and rattling
• Helps maintain proper alignment and smooth operation of the control or related assembly
• Typical signs of wear: cracked or missing grommet, visible gap around the opening, loose/wobbly fit, evidence of spill intrusion

• Disconnect electrical power and, if applicable, shut off gas supply before servicing
• Remove knobs/bezels or access panels as needed to reach the grommet
• Lift out the old grommet and clean the opening of residue
• Press the new grommet fully into place without pinching; reassemble and test operation

This surface burner control knob restores smooth, precise heat selection on your cooktop or range. Replace a cracked, loose, or missing knob to regain clear settings and confident control with a clean, factory look.

• Attaches to the burner valve/infinite switch shaft to turn the surface burner on/off and adjust heat
• Resolves issues like slipping, wobbling, or a knob that won't turn or stay on the stem
• Helpful when indicator markings are worn or hard to read
• Returns the front panel to a clean, factory appearance with the correct fit

• Ensure all controls are off and the cooking surface is cool before starting
• Pull the old knob straight off the stem; do not pry against the panel
• Align the new knob with the stem and press firmly until fully seated
• Turn through all settings to verify smooth, accurate operation

This burner base holds the surface burner assembly in place and helps route gas to the burner for safe ignition. It restores proper burner positioning so the cooktop lights and heats reliably. What it does

• Supports and locates the surface burner head and cap for correct flame formation
• Directs gas flow from the valve to the burner ports for consistent ignition
• Commonly replaced if the burner sits unevenly, won't light reliably, or flame is irregular
• Works with associated burner components to ensure normal operation

• Turn off the appliance gas supply and electrical power before beginning work
• Verify correct fit and orientation; seat the base fully before reinstalling burner head and cap
• Use basic hand tools; tighten fasteners securely but avoid over-torquing

This extra-large base burner is the support plate for the range burner assembly, restoring stable mounting and proper burner alignment so the cooktop operates safely and reliably. What it does

• Provides the mounting surface for the burner assembly and helps position the burner cap and head.
• Restores proper burner alignment to help produce an even, consistent flame.
• Helps prevent burner wobble or misalignment that can affect ignition or heat distribution.
• Use when the original base is cracked, warped, or otherwise damaged.

• Turn off gas supply and electrical power before starting any service.
• Follow the appliance's service manual and diagrams for correct placement and fasteners.
• Inspect related parts (burner head, cap, igniter) and replace as needed for proper function.

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.
