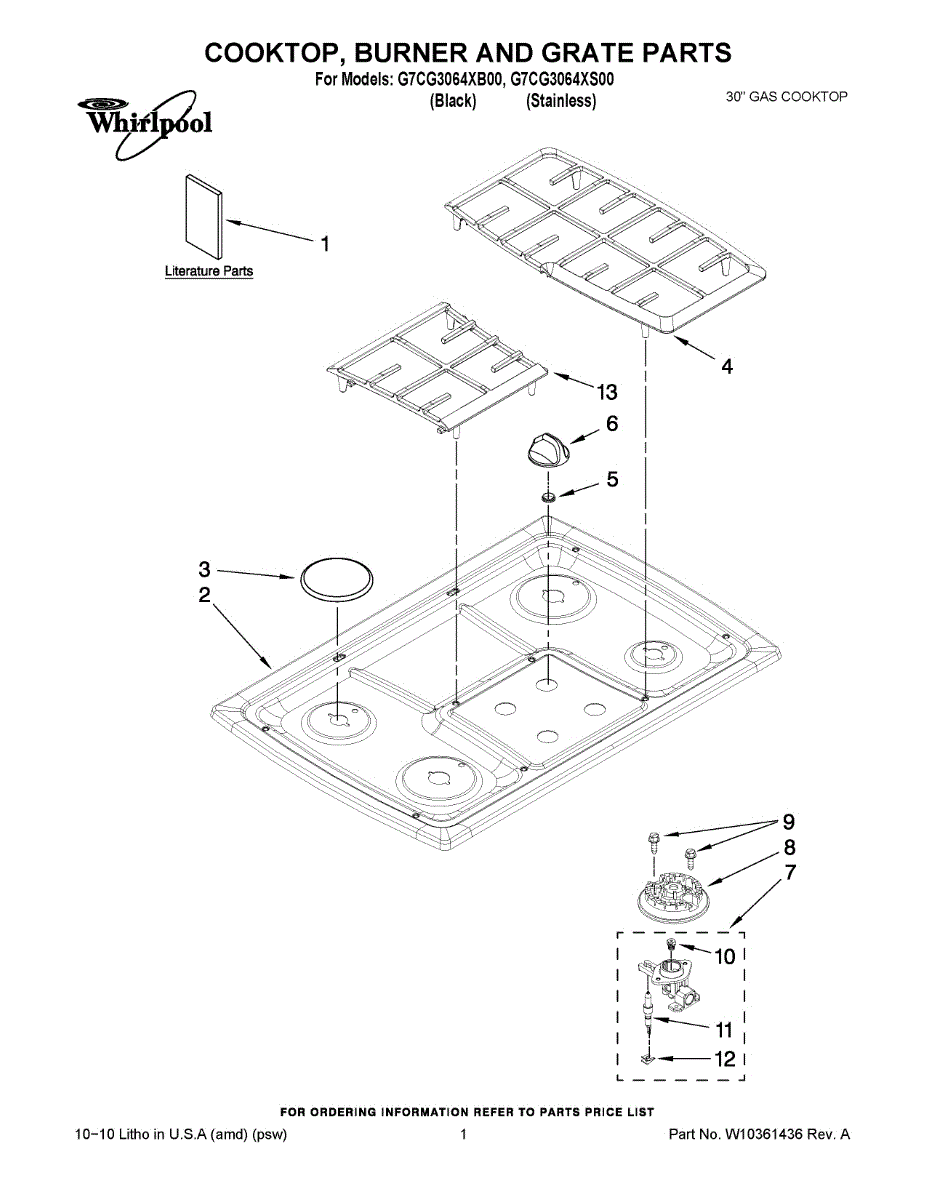

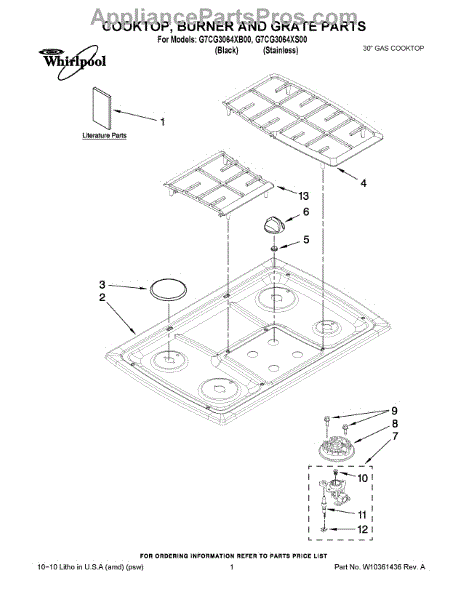

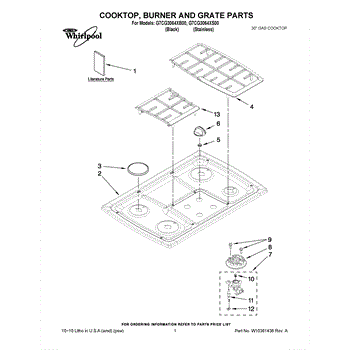

Parts for Whirlpool G7CG3064XB00: 01 - Cooktop, Burner And Grate Parts

Replacement burner cap kit for gas cooktops that restores proper flame shape and protects the burner head from spills and debris, helping burners heat more evenly and reducing ignition issues. What it does:

• Sits over the burner head to shape and stabilize the flame for consistent cooking
• Shields burner ports from spills and food build-up that can clog ports and affect flame
• Replaces cracked, chipped or missing caps that cause uneven heating or noisy flames
• Can help improve ignition reliability when burner ports are clear and caps are seated correctly

• Turn off the gas supply and ensure the cooktop is completely cool before servicing
• Typically installs by lifting off the old cap and placing the replacement into position; do not force parts
• Clean burner head and ports of debris before installing new cap to ensure proper seating and flame

For Grate Foot Pads, order kit# W10185266.

This is a knob grommet. For grate burner feet use part number 8186321.

This OEM Replacement Part is a Whirlpool-manufactured knob intended for ranges, stoves, and ovens. This part serves as a replacement for a lost, broken, or defective knob. The knob plays a crucial role in turning the stove on and off and adjusting the flame intensity from the burner head. It features a D-shaped shaft and requires no tools for replacement.

Causes of a bad knob can include wear and tear from frequent use, accidental damage from forceful turning or impact, or degradation of the internal mechanism that secures the knob to the control panel. A faulty knob can make it difficult to adjust settings or may prevent the appliance from operating correctly.

Symptoms of a bad Knob include:

• Knob not turning smoothly or slipping
• Difficulty in selecting or changing settings
• Knob falling off or not staying in place
• Cracks or visible damage to the knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob is an OEM component for Whirlpool gas ranges. It is the main component that selects cooking functions and temperature levels for individual burners. Precise operation is crucial for optimizing use of the cooking surface.

Symptoms of a faulty knob can be as followed:

• Resistance when turning or difficulty fully engaging desired settings
• Looseness, detachment, or inaccurate fitment preventing burner selection
• Temperature levels that fail to increase or decrease as adjusted
• Inoperable or incorrectly labeled settings causing unexpected heat

Causes may relate to normal wear of internal mechanisms. Improper cleaning techniques could deteriorate connecting structures as well.

This OEM Whirlpool replacement ensures dependable burner control. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore gas ranges and cooktops too.

Replacement burner head (flame spreader) that restores correct gas flow and flame pattern for reliable ignition and more even cooking. Use this part when a burner produces weak, yellow, or uneven flames or won't stay lit. What it does:

• Directs and evens the gas flame across the burner for consistent heating
• Helps correct poor ignition, intermittent flame, or burners that don't stay lit
• Reduces yellow or flickering flames caused by damaged or warped heads
• Works with the burner cap and orifice to restore proper combustion performance

• Turn off gas and electricity to the appliance and ensure the unit is cool before starting
• Remove burner grates and caps, then lift out the old burner head; replace with the new head and reassemble
• Hand-tighten only; avoid force that could strip fittings or damage alignment
• After installation, check ignition and inspect for leaks; if you smell gas, take appropriate action.

This flame spreader sits between the burner base and cap to distribute gas evenly through the burner ports. Replacing a clogged or warped spreader restores reliable ignition and a steady, balanced flame for consistent cooking. What it does:

• Distributes gas to create an even, circular flame pattern
• Supports reliable ignition by positioning ports around the electrode
• Helps maintain proper heat output and flame stability
• Symptoms include uneven/weak flames, yellow flames, delayed ignition, or a burner that won't light

• One flame spreader

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove grate and burner cap; lift off the old spreader (remove retaining screw if present)
• Align the new spreader over the orifice and igniter; seat fully and secure
• Do not clear ports with hard objects; use a soft brush and verify proper flame and ignition after reassembly

The Burner Head is an OEM part for Whirlpool gas cooktops. It is designed to distribute gas evenly to create a stable and consistent flame for cooking. This part ensures efficient heating and proper ignition, contributing to the overall performance of the cooktop.

Causes of a bad burner head can include regular wear and tear from frequent use, exposure to spills and food debris that can cause clogs, or damage from cleaning with abrasive materials.

Symptoms of a bad burner head include:

• Uneven flame distribution or weak flames
• Difficulty igniting the burner
• Flames that are yellow instead of blue
• Visible damage, rust, or clogs on the burner head

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This M4 x 0.7 screw secures small appliance components like trim, panels, and brackets so parts stay aligned and stable. It's a direct-fit replacement designed to restore proper fastening where the original metric screw is missing or damaged. What it does

• Fastens panels, trim pieces, brackets, or small assemblies in place
• Replaces stripped, missing, or corroded metric M4 fasteners
• Helps stop rattling, misalignment, or loose parts caused by a worn screw
• Matches original thread pitch and head style for correct fit and engagement

• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug; do not overtighten
• Keep small parts away from children and pets during installation

The Spark Electrode is an OEM part for Whirlpool gas ranges and cooktops. It is responsible for igniting the gas burner by generating a spark when the burner knob is turned to the ignite position, ensuring efficient and safe ignition of the gas.

Causes of a bad spark electrode can include exposure to high heat, accumulation of food debris, or wear and tear over time. These issues can prevent the electrode from producing a proper spark, leading to ignition problems.

Symptoms of a bad spark electrode include:

• Burner not igniting or taking longer to ignite
• Weak or no spark visible when igniting the burner
• Clicking sound without ignition
• Intermittent ignition problems

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small mounting clip secures small panels and components on compatible Whirlpool appliances, restoring proper fit and preventing parts from coming loose. It's a simple replacement that helps stop rattles and misaligned panels. What it does:

• Secures trim, panels or small components to the appliance frame to maintain proper alignment
• Prevents parts from shifting or vibrating during operation, reducing rattling noises
• Restores fit where a broken or missing clip allowed gaps or loose pieces
• Designed to snap into place for a secure hold without added hardware

• One clip

• Disconnect power to the appliance before attempting any repair
• Remove any trim or panels carefully to access the clip location; note original orientation
• Press or snap the clip into the mounting slot until it seats; some locations may require a flat tool or light force
• Replace or repair the adjacent parts for a secure fit
