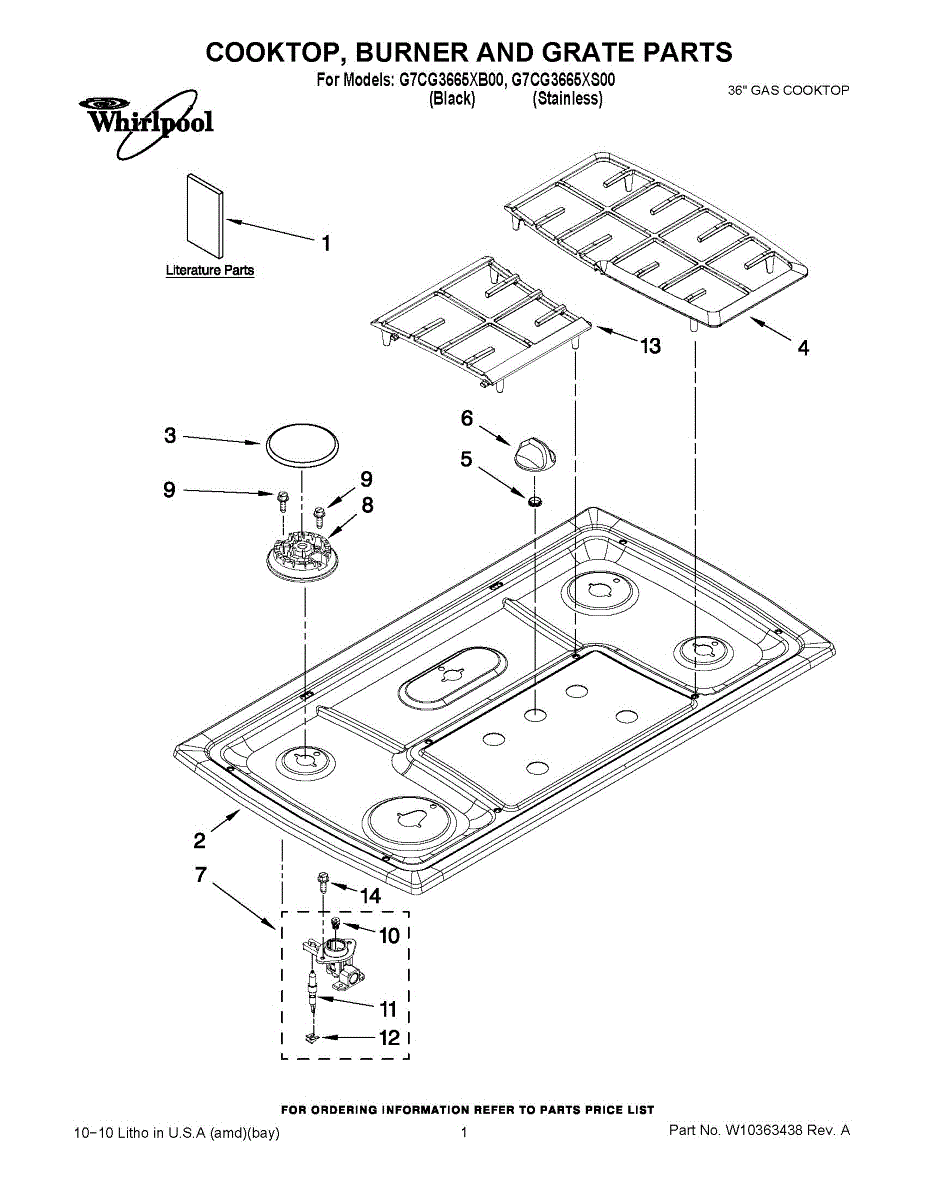

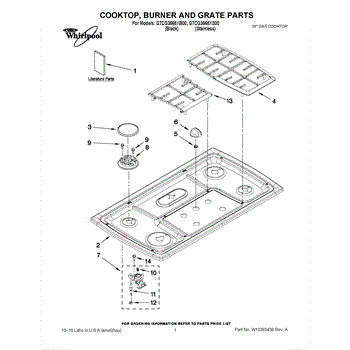

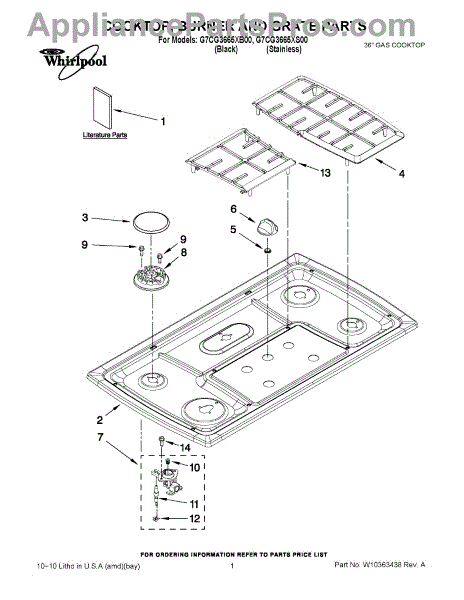

Parts for Whirlpool G7CG3665XB00: 01 - Cooktop, Burner And Grate Parts

For Grate Foot Pads, order kit# W10185266.

This is a knob grommet. For grate burner feet use part number 8186321.

This OEM Replacement Part is a Whirlpool-manufactured knob intended for ranges, stoves, and ovens. This part serves as a replacement for a lost, broken, or defective knob. The knob plays a crucial role in turning the stove on and off and adjusting the flame intensity from the burner head. It features a D-shaped shaft and requires no tools for replacement.

Causes of a bad knob can include wear and tear from frequent use, accidental damage from forceful turning or impact, or degradation of the internal mechanism that secures the knob to the control panel. A faulty knob can make it difficult to adjust settings or may prevent the appliance from operating correctly.

Symptoms of a bad Knob include:

• Knob not turning smoothly or slipping
• Difficulty in selecting or changing settings
• Knob falling off or not staying in place
• Cracks or visible damage to the knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob is an OEM component for Whirlpool gas ranges. It is the main component that selects cooking functions and temperature levels for individual burners. Precise operation is crucial for optimizing use of the cooking surface.

Symptoms of a faulty knob can be as followed:

• Resistance when turning or difficulty fully engaging desired settings
• Looseness, detachment, or inaccurate fitment preventing burner selection
• Temperature levels that fail to increase or decrease as adjusted
• Inoperable or incorrectly labeled settings causing unexpected heat

Causes may relate to normal wear of internal mechanisms. Improper cleaning techniques could deteriorate connecting structures as well.

This OEM Whirlpool replacement ensures dependable burner control. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore gas ranges and cooktops too.

Replacement burner head (flame spreader) that restores correct gas flow and flame pattern for reliable ignition and more even cooking. Use this part when a burner produces weak, yellow, or uneven flames or won't stay lit. What it does:

• Directs and evens the gas flame across the burner for consistent heating
• Helps correct poor ignition, intermittent flame, or burners that don't stay lit
• Reduces yellow or flickering flames caused by damaged or warped heads
• Works with the burner cap and orifice to restore proper combustion performance

• Turn off gas and electricity to the appliance and ensure the unit is cool before starting
• Remove burner grates and caps, then lift out the old burner head; replace with the new head and reassemble
• Hand-tighten only; avoid force that could strip fittings or damage alignment
• After installation, check ignition and inspect for leaks; if you smell gas, take appropriate action.

The Top Burner is an OEM part for Whirlpool gas ranges. It supports the center surface burner, providing a stable and efficient heat source for your cooking needs. It ensures proper gas flow and distribution, allowing the burner to ignite and provide an even flame for cooking.

A bad burner base can occur due to various reasons, such as wear and tear, buildup of food debris or grease, or accidental damage. If you notice symptoms such as uneven flames, difficulty in lighting the burner, or a wobbly or unstable center burner, it may be time to replace the burner base.

Symptoms of a bad burner base include:

• Uneven flames
• Difficulty in lighting the burner
• Wobbly or unstable center burner

Restore the efficient cooking performance of your Whirlpool gas range by replacing the faulty or worn-out center surface burner base with this genuine OEM part.
This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This surface burner head distributes gas to the flame on a gas cooktop or range burner. Replacing a worn or clogged head helps restore even flame, reliable ignition, and consistent heat on the affected burner.

• Channels gas from the orifice through burner ports to create a uniform flame pattern under the cap
• Works with the spark electrode to ignite the gas
• A damaged or clogged head can cause: burner won't light or only clicks; uneven/yellow flame; weak or low heat on that burner
• Carbon buildup or corrosion on the head can lead to delayed ignition

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap; take off the old head and retain any mounting screws
• Align the new head over the orifice and spark electrode; seat flat and secure
• Clean burner ports and cap before testing for a steady, blue flame

This M4 x 0.7 screw secures small appliance components like trim, panels, and brackets so parts stay aligned and stable. It's a direct-fit replacement designed to restore proper fastening where the original metric screw is missing or damaged. What it does

• Fastens panels, trim pieces, brackets, or small assemblies in place
• Replaces stripped, missing, or corroded metric M4 fasteners
• Helps stop rattling, misalignment, or loose parts caused by a worn screw
• Matches original thread pitch and head style for correct fit and engagement

• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug; do not overtighten
• Keep small parts away from children and pets during installation

This orifice spud directs gas flow into the burner for consistent ignition and flame control. It restores proper burner performance so cooking heats evenly and burners light reliably. What it does:

• Seats the burner orifice to control gas flow to the burner
• Helps maintain a steady, even flame for consistent cooking
• Can resolve weak or uneven flames and burners that struggle to light
• Works as the sealed interface between the gas manifold and burner tube

• One orifice spud

• Turn off the gas supply and disconnect power before servicing
• Inspect surrounding seals and gaskets for damage and replace if necessary
• Use basic hand tools; avoid overtightening to prevent damage

The Spark Electrode is an OEM part for Whirlpool gas ranges and cooktops. It is responsible for igniting the gas burner by generating a spark when the burner knob is turned to the ignite position, ensuring efficient and safe ignition of the gas.

Causes of a bad spark electrode can include exposure to high heat, accumulation of food debris, or wear and tear over time. These issues can prevent the electrode from producing a proper spark, leading to ignition problems.

Symptoms of a bad spark electrode include:

• Burner not igniting or taking longer to ignite
• Weak or no spark visible when igniting the burner
• Clicking sound without ignition
• Intermittent ignition problems

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small mounting clip secures small panels and components on compatible Whirlpool appliances, restoring proper fit and preventing parts from coming loose. It's a simple replacement that helps stop rattles and misaligned panels. What it does:

• Secures trim, panels or small components to the appliance frame to maintain proper alignment
• Prevents parts from shifting or vibrating during operation, reducing rattling noises
• Restores fit where a broken or missing clip allowed gaps or loose pieces
• Designed to snap into place for a secure hold without added hardware

• One clip

• Disconnect power to the appliance before attempting any repair
• Remove any trim or panels carefully to access the clip location; note original orientation
• Press or snap the clip into the mounting slot until it seats; some locations may require a flat tool or light force
• Replace or repair the adjacent parts for a secure fit

For Grate Foot Pads, order kit# W10185266.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.
