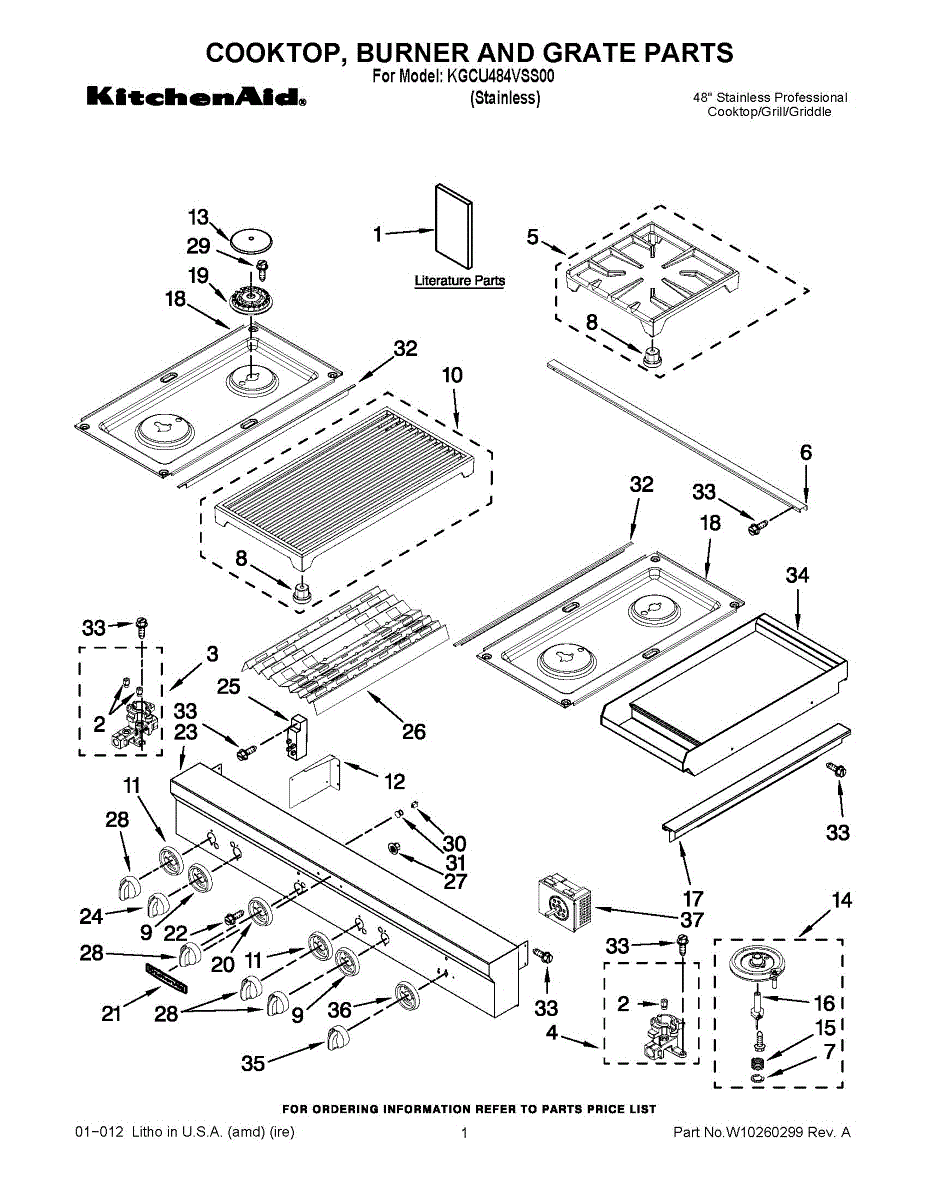

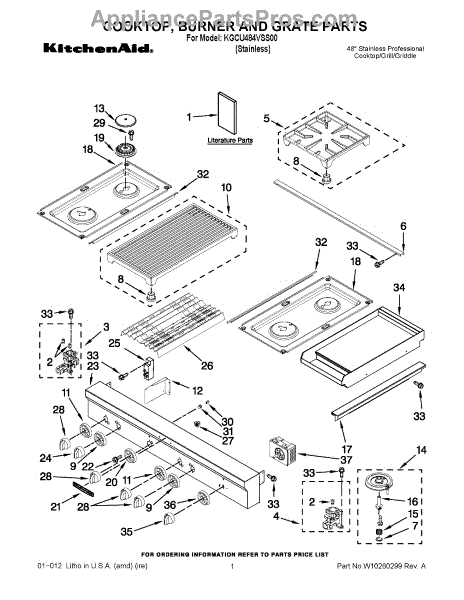

Parts for Kitchenaid KGCU484VSS00: 01 - Cooktop, Burner And Grate Parts

This injector holder assembly secures the injector in place within the appliance's fuel delivery area, keeping the injector positioned for reliable ignition and consistent fuel flow. Replaces a worn or damaged holder to restore proper injector alignment. What it does:

• Holds and positions the fuel injector so the injector can deliver fuel to the burner or burner tube
• Maintains correct injector alignment to support consistent ignition and combustion
• Can address symptoms such as misaligned injector, burner ignition issues, or uneven flame distribution
• Helps prevent injector movement that can lead to improper fuel delivery

• Turn off gas and power to the appliance before starting work
• Follow OEM service instructions and use appropriate tools for removal and installation
• Inspect surrounding seals and connections; replace any damaged components
• If you smell gas or suspect a leak, stop work immediately.

The Holder Orifice is an OEM component specifically designed for Whirlpool ranges. Located inside the gas burner unit, the orifice holds the brass valve that regulates gas flow to each burner flame. Its sturdy construction and precisely sized opening ensure a stable, controlled fuel supply.

Causes of a bad holder orifice can include mineral deposits building over time which diminish sizing accuracy or cracks developing that cause leaks.

Symptoms of a bad holder orifice include:

• Burners emitting unstable or sporadic flames of abnormal sizes
• Inability to efficiently ignite or achieve proper burner settings
• Strong gas or fuel smells coming from the range top
• Discolored or corroded brass components

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore cooking appliances.

Replace worn or damaged surface grates with this grate kit to restore a sturdy, level cooking surface on your gas range or cooktop. It keeps pots and pans stable over the burners for safer, more consistent cooking.

• Supports cookware above the burners and provides a continuous cooking surface
• Helps keep pots and pans level to prevent rocking or tipping
• Replace if grates are cracked, warped, severely chipped, or missing feet/pads
• Can help address wobbly cookware, unstable placement, or uneven pan contact

• Turn all burners off and allow the cooktop to cool completely before handling grates
• Lift off old grates; clean the cooktop surface and burner caps while accessible
• Position the new grates in the proper locations; ensure all feet sit flat and any alignment features engage
• Test pan stability on each burner before cooking

The Grate Pad is an OEM part for Whirlpool cooktops. It is designed to fit onto the grates of the cooktop, providing stability and protecting the cooktop surface from scratches and damage. This is a kit of four grate pads. If you also need the adhesive, order part number W10841140.

You should replace the grate pads if they become worn out or damaged. Causes of bad grate pads can include exposure to high heat over time, physical damage from heavy cookware, or regular wear and tear from frequent use.

Symptoms of bad grate pads include:

• Grates that wobble or do not sit securely
• Scratches or damage on the cooktop surface
• Uneven cooking due to unstable grates

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement burner cap covers the gas burner head to help shape and stabilize the flame for efficient cooking. It restores proper flame pattern and protects the burner head from spills and debris. What it does:

• Seats over the burner head to direct and shape the gas flame for even heat
• Helps prevent flame lifting, sputtering, or uneven heating when properly seated
• Protects the burner head from food spills and corrosion
• Simple, low-profile part designed to match the original burner geometry

• One burner cap (type D)

• Ensure the range is off and the burner is cool before installing
• Lift off the old cap, set the new cap flat and centered on the burner head
• No special tools required; verify the cap sits evenly and does not wobble
• Do not use a cracked or warped cap — replace if damaged

This burner cap (C) is the replaceable top piece that sits on a gas burner head to help shape the flame and protect the burner ports. It restores proper flame pattern and helps maintain consistent heat across the cooking surface. What it does:

• Centers and shapes the burner flame for more even heat distribution during cooking
• Protects the burner head and ports from food spills, debris, and corrosion
• Helps prevent irregular or yellow flames caused by misaligned or damaged caps
• Works with the existing burner base to maintain safe, consistent burner operation

• Allow the cooktop and burner to fully cool and shut off gas or power before servicing
• Remove debris and verify the burner head is clean and properly seated before placing the cap
• Set the cap flat on the burner head so it sits evenly; misalignment can cause flame issues

This burner top assembly restores the burner base that supports the cooktop burner cap and gas flow components for safe, reliable ignition and flame control. It's a direct-fit replacement designed for compatible gas ranges. What it does

• Provides the support and housing for the burner cap, orifice and ignition path
• Restores stable, centered burner cap placement for even flame distribution
• Helps resolve symptoms like a loose or wobbly burner cap, intermittent ignition, or uneven flame
• Works with existing igniters, caps and valves when those components are functioning properly

• One burner top assembly (burner base) as described

• Disconnect the appliance from power and turn off the gas supply before servicing
• Remove cooktop grates and burner caps to access and replace the burner base
• Use basic hand tools; ensure all gas connections and igniter alignment are correct before testing

This auxiliary burner head restores the small/simmer burner on a gas cooktop to proper flame shape and heat delivery, helping improve low-heat cooking control and consistent simmering. What it does:

• Directs and disperses gas to create a stable, even flame for the auxiliary (small) burner.
• Replaces damaged, warped or clogged burner heads that can cause uneven heating.
• Helps address weak, spotty or irregular flames on the small/simmer burner.
• Works with the burner cap and base to maintain correct flame pattern and efficiency.

• Turn off the appliance power and gas supply before servicing; follow all safety precautions.
• Remove the grate and burner cap, lift off the old burner head, then set the new head into place ensuring it seats correctly.
• After reinstalling the cap and grate, test for proper ignition and flame pattern; if you smell gas or see persistent problems, stop.

This single surface burner spark electrode generates the spark that lights the gas on your cooktop or range. Replacing a worn or cracked electrode restores reliable ignition and reduces "click with no flame" at that burner.

• Creates a high-voltage spark at the burner to ignite gas
• Positions the spark at the burner head via a ceramic-insulated tip
• Common symptoms: burner won't light, no spark at that burner, or intermittent ignition
• Visual clues of failure can include cracked/chipped porcelain or a burned electrode tip

• Disconnect electrical power and shut off gas supply before servicing
• Allow the appliance to cool; remove burner cap/head to access the electrode
• Seat the ceramic insulator fully and position the tip correctly near the burner
• Reassemble and test ignition before finalizing the repair

This is the dual surface burner spark electrode for select gas cooktops/ranges. It generates the spark needed to ignite the burner, helping restore reliable lighting when a burner won't start or only lights intermittently.

• Produces the ignition spark at the burner head
• Helps address burners that won't ignite, click without lighting, or light inconsistently
• Can resolve weak or no spark conditions at the affected burner position(s)
• Restores dependable burner ignition when the original electrode is worn, cracked, or fouled

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop/range to cool fully
• Access typically requires removing grates, burner caps, and top panel
• Handle the ceramic insulator carefully; avoid bending the electrode tips

This burner head replaces a damaged or worn gas range burner surface to restore even flame distribution and stable cooking performance. It fits specific Whirlpool-style cooktop assemblies and matches the OEM shape for proper seating. What it does:

• Directs and shapes the gas flame for consistent heat under cookware
• Replaces cracked, warped, or corroded burner surfaces that cause uneven cooking
• Helps stop flame irregularities and supports reliable ignition when used with a compatible cap and base
• Restores correct alignment so cookware sits level on the cooktop

• One (1) burner head (A) as shown

• Turn off gas and electrical power to the appliance before removal or installation
• Handle with care to avoid bending or damaging the burner ports and mounting tabs
• Clean mating surfaces and verify correct seating with the burner cap and base before testing

This burner head (Type D) replaces a damaged or worn burner component to restore proper gas flow and even flame distribution on compatible cooktops. It's a direct-fit part when your existing burner is cracked, warped, or corroded. What it does:

• Directs gas to the cooktop ports so the burner produces an even, controlled flame
• Restores consistent heating when flames are weak, uneven, or drifting
• Prevents gas leakage at the burner surface when seated and secured correctly
• Helps eliminate hotspots caused by a warped or damaged burner surface

• Turn off gas supply and power to the appliance before starting work
• Ensure burner is cool and remove grates and burner caps to access the head
• Seat the new burner head fully on its base so ports align; test for proper flame after reassembly
• If you smell gas, can't reassemble, or the burner still behaves abnormally, stop.

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

This control knob replaces a worn, cracked, or missing push-on knob so you can turn and set appliance controls easily. It restores a secure grip and clear control feel for smooth operation. What it does:

• Fits onto the control shaft to allow manual selection of cycles, temperatures, or settings
• Restores a solid grip when the original knob is stripped, cracked, or loose
• Provides precise rotation and tactile feedback for accurate setting changes
• Helps prevent accidental setting changes by providing a secure fit

• Disconnect power to the appliance before servicing.
• This knob installs by pushing onto the splined control shaft; pull straight off to remove.
• Do not force; align splines before seating to avoid damage.
• If knob will not seat or the shaft is damaged, inspect/replace the control shaft or console components.

The Whirlpool screw is an OEM replacement part responsible for fastening and securing different components in the washer. This screw is used in various locations throughout the appliance, such as attaching panels, brackets, and other parts together. Its main function is to provide a tight and reliable connection, preventing any loose or unstable components that could disrupt the washer's operation.

This part fixes the following symptoms:

• Loose or unstable components in the washer
• Visible signs of wear, rust, or damage on the screw
• Unusual noises or rattling sounds during washer operation

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This indicator light lamp assembly notifies you when a control or function is active and restores visible status feedback for your appliance. It's a small, direct-replacement lamp used on control panels and status indicators. What it does:

• Illuminates control-panel indicators so you can see operating status and selected settings.
• Replaces a dim, flickering, or non-working indicator light.
• Helps diagnose control and user-interface issues by restoring visible feedback.
• Fits into the panel socket and connects to the existing wiring harness.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Access typically requires removing the control or trim panel; keep screws and fasteners organized.
• Handle the lamp and lens carefully to avoid damage; do not force-fit.

This Trim Top replaces the upper decorative trim that surrounds and protects the cooktop/control panel area. It restores a finished appearance and helps keep spills and debris away from control components. What it does

• Covers and protects the upper edge of the cooktop/control panel from spills and debris.
• Restores the oven/range's finished look after damage, wear or during a rebuild.
• Helps prevent moisture and food from entering control openings.
• Secures and aligns the control panel trim area for a proper fit.

• Disconnect power to the appliance before starting any work.
• Handle edges carefully; trim pieces and surrounding panels can be sharp.
• Typically attaches with a few screws or clips—retain original fasteners and follow model-specific instructions.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This infinite switch is the temperature control for a cooktop griddle, letting you adjust heat smoothly for even cooking. Replaces a worn or failed griddle control to restore reliable temperature regulation and consistent results. What it does:

• Regulates griddle heat by providing variable power levels to the element
• Helps restore proper heating when griddle stays too cool, won't heat, or has inconsistent temperature
• Operates as the user control input for turning heat up or down on the griddle zone
• Compatible with systems that use an infinite (continuously variable) control for temperature adjustment

• One infinite switch (griddle control) as shown

• Disconnect power to the appliance before attempting service to avoid shock hazard
• Access may require removing cooktop or control panel
• Verify harness connector orientation and secure mounting; replace any damaged wiring or fasteners
