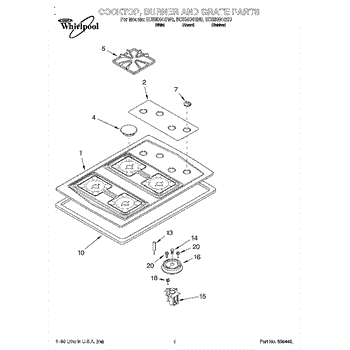

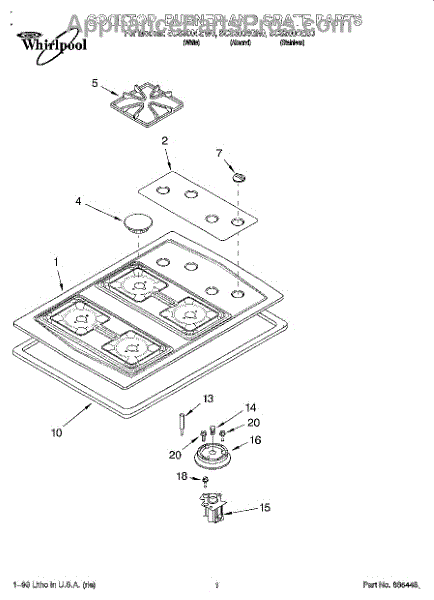

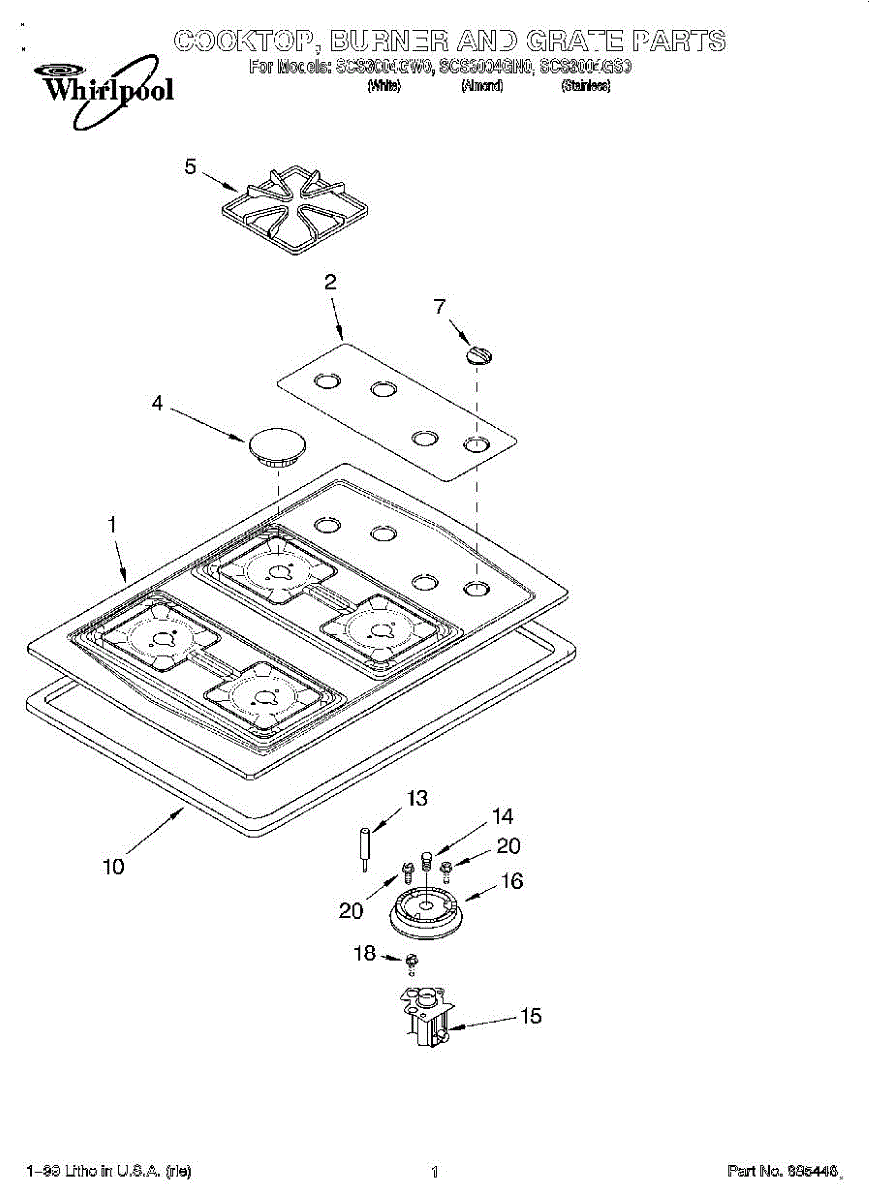

Parts for Whirlpool SCS3004GS0: 01 - Cooktop, Burner And Grate Parts

Color: Almond. Other colors: For black use WP3191242, for white use WP3191243, for stainless steel use W11230936.

This cooktop surface top replaces a damaged or worn cooktop to restore a smooth, usable cooking area and proper fit. It provides the finished surface that sits over the cooktop opening for a clean look and stable cooking zones. What it does:

• Replaces a cracked, chipped, or heavily scratched cooktop surface
• Restores a flat, stable cooking area so cookware sits evenly
• Helps prevent debris from falling into the cooktop cavity
• Can resolve fit or sealing issues caused by a warped or damaged top

• Disconnect electrical power (and gas if applicable) before starting any work
• Handle edges carefully — glass/porcelain surfaces can chip or crack if dropped
• Follow your appliance's service manual for correct fasteners, sealants, and alignment

Color: Black. Other colors: For white use WP3191243, for almond use 3191244, for stainless steel use W11230936.

Color: Black. Other colors: For white use 3191284, for almond use 3191285.

Color: White. Other colors: For black use 3191283, for almond use 3191285.

Color: Almond. Other colors: For black use 3191283, for white use 3191284.

Medium. Color: Black. Measures about 2-1/2 inches in diameter.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Replace worn or damaged cooktop grates with this grate kit to restore a stable, level platform for your pots and pans. It helps maintain safe, consistent pan support and keeps your range or cooktop looking and performing its best. What it does:

• Supports cookware above the burners at the correct height
• Restores level, stable pan support when grates are cracked, warped, or missing
• Helps reduce rocking or tipping of pots and pans
• Common signs it's needed: chips or cracks, grates won't sit flat, unstable cookware

• One grate kit

• Turn off all burners and allow the appliance to cool completely before handling
• Lift off old grates; clean support ledges and burner surrounds
• Position new grates per the burner layout; ensure they sit level and centered
• Verify pan stability before cooking

Color: black. Measures about 1-1/2 inches in diameter.

Surface burner spark electrode.

Location: Left front.

Location: Right rear & left rear.

Locaction: Left front. 14,000 BTU.

Includes spark electrode.

Includes spark electrode.

Includes spark electrode.

Includes spark electrode.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Size: 15 inches long.

Size: 28 inches long.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
