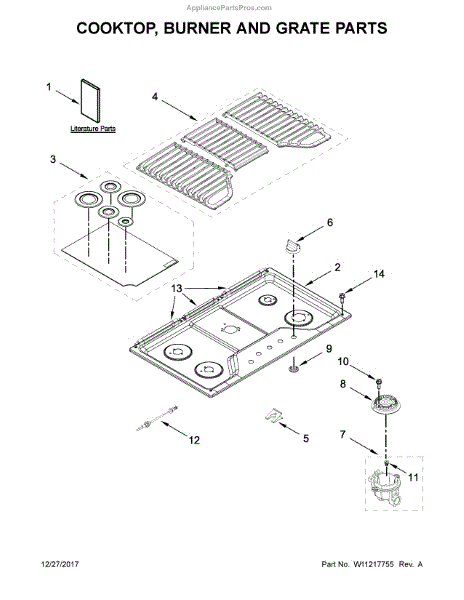

Parts for Whirlpool WCG55US6HS00: Cooktop, Burner And Grate Parts

This burner cap sits on top of the gas burner head to shape the flame and shield it from spills. Replacing a damaged or missing cap restores proper flame pattern, reliable ignition, and even heating.

• Shapes and disperses the burner flame for even cooking and proper simmering
• Shields the burner head/orifices from spills, grease, and debris
• Must sit level and centered for consistent ignition and flame quality
• Replace if cracked, chipped, warped, missing, or if flames are uneven or yellow

• Allow the appliance to cool completely. Turn off gas supply and power before servicing.
• Lift off the old cap; clean and dry the burner head so the new cap seats properly.
• Center the new cap on the matching burner; it should sit flat with no rocking or gaps.
• Light the burner to verify an even, blue flame; realign the cap if ignition is delayed or the flame is uneven.

The Grate Kit is an OEM part for Whirlpool cooktops. It includes the grate component that sits directly above the cooking elements on an electric or gas cooktop. This grate allows for food and cookware to be placed directly over the heating surfaces while also protecting the cooking elements from accidents.

Causes of a bad grate kit can include wear and tear from repeated heating cycles, cracks or breaks from impacts with cookware, or corrosion issues from spills or cleaning products.

Symptoms of a bad grate include:

• Gap openings that allow liquids or debris to come in contact with burners or heating elements
• Wobbly or unstable installation providing uneven cooking surfaces
• Broken or missing grate components that compromise safety and usability

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

The Knob is an OEM part for Whirlpool cooktops. This knob allows you to control the heat settings of the burners, enabling precise adjustments for various cooking needs.

Causes of a bad cooktop knob can include wear and tear from frequent use, damage from accidental impacts, or exposure to high heat. Over time, these factors can lead to the knob becoming loose, cracked, or difficult to turn.

Symptoms of a bad knob include:

• The knob not turning or getting stuck
• The knob feeling loose or wobbly
• Difficulty in adjusting the burner temperature
• Visible cracks or damage to the knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Orifice holder secures the burner orifice in place to help maintain proper gas flow at the burner, supporting consistent ignition and flame performance. It's a small replacement part used where the orifice needs stable support. What it does

• Holds the burner orifice securely so it stays aligned with the burner assembly
• Helps maintain steady gas flow for consistent ignition and flame pattern
• Can address symptoms like burners that won't light reliably or produce weak/uneven flames
• Restores proper positioning after damage or wear to the original holder

• One Orifice holder

• Turn off and shut off the gas supply before attempting service
• Inspect nearby gaskets, fittings, and the orifice for damage and replace if needed
• Do not overtighten fasteners; follow OEM torque/installation guidance when available

This Holder ORF retainer secures the related component in place to restore correct alignment and reliable operation. It's a direct-fit replacement designed to match the OEM mounting and fit points. What it does:

• Holds and stabilizes the specified assembly or component to prevent shifting or misalignment
• Helps stop rattling, binding, or loose movement associated with a worn or broken holder
• Restores proper fit where the original retainer has cracked, deformed, or failed
• Works with the factory mounting locations for a secure replacement

• One Holder ORF retainer (single piece as shown)

• Replace with power off and appliance disconnected from mains before servicing
• Inspect surrounding clips, screws, and mounting surfaces; replace any damaged fasteners for secure fit
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the retainer

This Holder ORF is a factory-style mounting bracket that secures internal appliance components for reliable alignment and support. It restores proper part positioning to help reduce rattling and ensure consistent operation. What it does

• Provides a secure mount and positional support for the associated internal component
• Helps stop movement or vibration that can cause noise or misalignment
• Restores correct part alignment that may prevent intermittent operation or fit issues
• Durable replacement that matches OEM fit and function

• One Holder ORF mounting bracket

• Designed to replace the original factory bracket; verify visual match before installation
• Use basic hand tools; disconnect power and/or water (if applicable) before beginning repair
• Handle edges carefully and avoid forcing parts to prevent damage

This Holder ORF mounting clip secures small appliance components to reduce movement and prevent rattling, helping panels and assemblies stay properly aligned for reliable operation. What it does

• Secures a component or panel to its mounting point to prevent shifting and vibration
• Helps stop rattling or intermittent contact caused by a loose fastener
• Restores proper alignment for covers, trim pieces, or internal brackets
• Supports reliable operation by keeping parts in their intended position

• Disconnect power to the appliance before beginning any repair.
• Remove surrounding trim or access panels to reach the clip; common tools include a screwdriver or nut driver.
• Replace only the damaged or missing clip; keep fasteners oriented as originally installed.

Auxiliary burner head that distributes flame on the small simmer burner of gas cooktops and ranges. Replaces a warped, clogged, or damaged head to restore reliable ignition, correct flame pattern, and consistent low-heat performance.

• Directs the gas/air mix through flame ports for even simmer heat
• Helps restore proper ignition when the old head is fouled or damaged
• Can help with delayed ignition or repeated clicking due to misaligned/blocked ports

• Shut off gas supply and disconnect power; allow the surface to cool completely
• Remove grate and burner cap; lift off the old head
• Clean the burner base and align the new head with the orifice and igniter; seat flat
• Reinstall the cap and grate; restore gas/power and verify flame quality and ignition

This is the gas cooktop/range rapid burner head. It directs gas and airflow to create an even, reliable flame on the large "rapid" burner, helping your cooktop heat quickly and cook evenly.

• Distributes gas through calibrated ports to form a stable flame on the rapid burner
• Can help resolve weak or uneven flames, delayed ignition, or frequent burner re-lighting
• Replacing a damaged, clogged, or warped head can restore proper burner performance
• Designed to fit the rapid (largest) burner position on compatible units

• Disconnect power and shut off gas before servicing
• Remove the burner cap, lift off the old head, and clean the mounting surface
• Align the new head with the orifice and locating tabs; seat it flat and secure any screws if present
• Reassemble, restore gas/power, and test for proper ignition and flame

This burner head sits atop the semi-rapid gas burner on the cooktop, shaping the flame and distributing heat evenly to your cookware for reliable day-to-day cooking performance.

• Directs gas and air mixture to create a stable, even flame on the semi-rapid burner
• Can help address uneven flames, poor ignition, or weak heating at that burner position
• Restores proper heat distribution when the original head is clogged, warped, or damaged
• Designed to fit the semi-rapid burner location as specified by the manufacturer

• Disconnect power and shut off gas before servicing
• Ensure the burner area is clean; remove debris that could affect flame pattern
• Align the ports and locating features carefully; do not overtighten any fasteners
• After installation, check for proper ignition and a consistent blue flame

The Grommet is an OEM part for Whirlpool gas cooktops. It forms a protective barrier and seal where wiring or mounting bolts pass through ventilation cutouts.

Causes of a bad grommet typically include degradation of the rubber material over time due to heat exposure during cooking. Physical stress from repeated installation/removal can also crack or loosen the seal.

Symptoms of a bad grommet include:

• Air leaks appearing around wiring/bolt openings
• Drafts disturbing burner or element temperatures
• Noise from loose fixtures rattling
• Risk of sparks near exposed connections

Replacing with an OEM grommet restores the protective seal while blending seamlessly with range aesthetics. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore cooktop models.

This orifice spud directs and meters gas flow to a range or cooktop burner for proper combustion and consistent flame. Replacing a worn or damaged spud helps restore reliable ignition and more even heating at the affected burner. What it does

• Seats in the burner assembly to control the gas jet size and flow to the burner
• Ensures a correctly sized gas stream for stable flame and proper cooking temperature
• Common symptom: uneven or weak flame at one burner
• Common symptom: burner will not light or requires extended time to ignite

• Shut off gas supply and disconnect power before servicing; follow all safety precautions
• Use the correct OEM part number and orientation when installing to ensure proper fit
• Hand-tighten and then snug to OEM torque recommendations; avoid over-tightening which can damage threads

This orifice spud secures and aligns the gas orifice at the burner, ensuring a consistent flame for safe cooking. Replacing a worn or damaged spud restores proper burner performance and reliable ignition. What it does:

• Holds the orifice in place at the burner to maintain correct gas flow and flame shape
• Helps prevent uneven or weak flames and poor heat distribution
• Can resolve ignition issues or burners that will not light cleanly
• Works with the burner assembly to stabilize the burner head

• Shut off the appliance gas supply before starting any repair
• Basic hand tools may be required; follow the appliance service manual for disassembly
• Inspect surrounding burner parts and gaskets; replace if damaged

This orifice spud is the small gas-fitting that directs fuel from the valve to a burner so the burner can ignite and hold a steady flame. Replacing a worn or blocked spud restores proper gas flow to the burner. What it does:

• Guides and meters gas from the valve into the burner assembly for consistent ignition.
• Helps maintain correct flame shape and strength at the burner.
• Commonly linked to symptoms like weak or uneven flames, burner that won't light, or burners that sputter.
• Works as a direct replacement for the OEM orifice spud designated for the appliance.

• One orifice spud (1 piece).

• Turn off gas supply and disconnect power before servicing.
• Only use the correct orifice for your appliance and fuel type — do not modify the part.
• After installation, check all fittings for leaks with a soap-and-water solution or approved gas leak detector.
• Follow manufacturer instructions and local codes when reinstalling components.

Orifice spud is a small gas valve fitting that secures the orifice to the burner assembly, helping direct fuel to the burner for consistent ignition and stable flames. What it does:

• Secures the orifice to the gas valve/burner assembly so fuel is delivered correctly.
• Directs gas flow from the valve through the orifice into the burner port.
• Can cause burner ignition problems or uneven/weak flames when damaged or loose.
• Associated with reduced burner performance or a noticeable gas odor when connections are not tight.

• Turn off gas supply and electrical power before servicing any gas components.
• Replace only with the exact OEM part; tighten and seat per manufacturer instructions.
• Follow all local codes and safety practices when working on gas appliances.

The surface igniter is an OEM part for Whirlpool ranges and cooktops. It is responsible for generating the heat needed for gas burners to ignite. The igniter contains a small ceramic element inside that produces an electric spark whenever a burner is turned on.

Symptoms of a bad surface igniter include:

• Gas burners that fail to light or ignite intermittently
• Dim or weak burner flames
• Rattling or buzzing sounds coming from below the cooktop

Causes of failure are generally normal wear and tear over many burner ignitions. Mineral buildup or food debris could also potentially obstruct the electric spark.

This replacement igniter is also compatible with ranges, cooktops, and built-in ovens from Maytag, Jenn-Air, Amana, Magic Chef, Admiral, and several Kenmore models.

Surface ignitor restores the ignition spark to a gas range surface burner so the burner can light reliably. Use this direct replacement when a burner produces weak sparks or won't ignite. What it does:

• Generates the spark that ignites gas at a surface/burner assembly.
• Replaces a cracked, worn or non-sparking electrode to restore ignition.
• Commonly used when a burner clicks but does not light or produces intermittent sparks.
• Works as the single electrode component in a surface burner ignition assembly.

• Turn off electrical power and gas supply before service.
• Handle the ceramic tip carefully — avoid touching or bending the electrode.
• Ensure proper connection of the ignitor's wire and correct seating in the burner assembly.

The Cooktop Hinge is an OEM part for Whirlpool gas cooktops. It works to securely attach the cooktop while allowing smooth lifting for easy access during cooking or cleaning.

Symptoms of a bad cooktop hinge include:

• The cooktop not sitting flush or lying flat
• Difficulty lifting or lowering the cooktop
• Gaps appearing in the sealing surface
• Excessive noise or vibration

Causes of failure can be normal wear and tear over extended use. Damage from heavy pots or pans dropped could also weaken the hinge. Over time, loosened screws or stripped hinge mounting points deteriorate performance.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose panels, rattling, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or control assemblies in place
• Stops vibration-related noise caused by loose hardware
• Helps maintain safe, stable operation by keeping components secured
• Restores original fit and alignment after repair

• Use the matching screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or component damage
• Disconnect power to the appliance before accessing internal components
• Replace all matching fasteners for best results

This is a #10 x 2 inch appliance screw used to fasten panels and components in household appliances. It provides a simple, reliable hold to keep parts aligned and reduce vibration. What it does:

• Secures trim, panels, brackets, and internal components
• Helps prevent rattling or movement from loose or missing fasteners
• Restores proper alignment where a worn or missing screw causes gaps
• Works wherever a #10 x 2" fastener is specified by the manufacturer

• Disconnect power and water to the appliance before servicing
• Use the correct driver to avoid stripping the head; do not overtighten
• Keep track of removed fasteners and replace with identical-size screws
• Inspect mating threads and replace any damaged hardware

The Harness Wire is an OEM component specifically designed for Whirlpool ranges. This harness wire aids in safely transmitting electrical signals throughout the cooking elements and internal components.

It is responsible for guiding power to essential range functions such as the oven bake/broil elements, surface burners, lights, timers, and controls. The harness wire ensures split-second communication between electronic modules and heating components.

Causes of a bad harness wire can include cracking, loosening, or separation of wire connections over many heating and cooling cycles. Corrosion of wire connectors may occur due to humidity or other environmental factors inside the range cavity.

Symptoms of a bad harness wire include:

• Stove elements failing to heat properly or unevenly
• Surface burners not igniting or working intermittently
• Oven lights, timers, or controls malfunctioning
• Electrical shorts, sparks, or safety issues detected

This replacement is also compatible with Maytag, KitchenAid, Jenn-Air, and other Whirlpool brand cooking appliances.

This tie-down bracket secures the appliance during installation so it stays firmly in place. It helps prevent shifting, vibration, or lifting for a solid, stable fit and reliable operation over time.

• Anchors the unit to its opening as designed, helping keep it stable
• Helps reduce movement, vibration, and rattling during use
• Replaces a bent, damaged, or missing bracket to restore a secure install
• Common signs: appliance shifts or rocks, visible gaps/misalignment, loose fit

• Disconnect power; shut off gas before servicing
• Install in the location/orientation specified by your product's installation instructions
• Reuse the model-specific mounting hardware or replace per your manual
• Tighten hardware securely but do not overtighten to avoid damage

The LP Conversion Kit is an OEM replacement part for Whirlpool cooktops. It allows you to convert your cooktop from natural gas to LP gas, ensuring compatibility with your available fuel source. It includes all the necessary parts and instructions to safely and effectively convert your cooktop.

Causes of needing a conversion kit include:

• Switching from natural gas to LP gas as the fuel source
• Moving to a new location with different gas supply requirements

By using this LP conversion kit, you can enjoy the versatility and convenience of using LP gas on your Whirlpool cooktop.
This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
