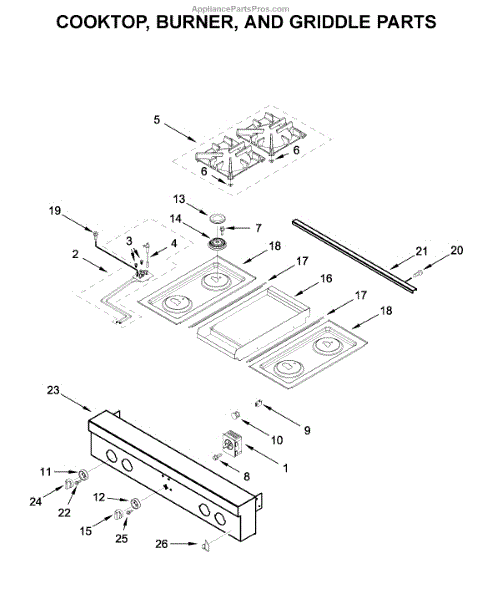

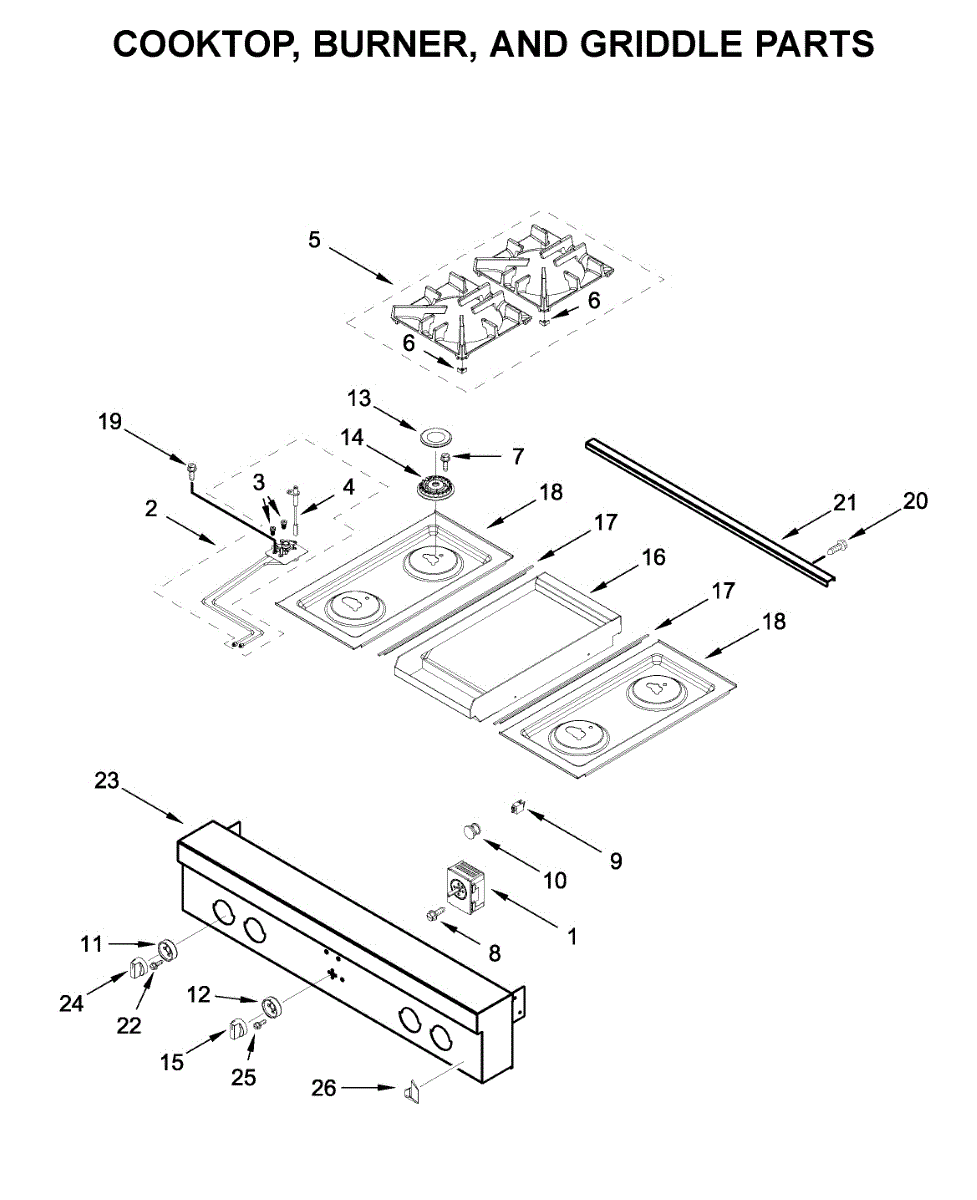

Parts for Jenn-Air JGCP536HL00: Cooktop, Burner, And Griddle Parts

This infinite switch is the control that regulates heat for a range's surface top burner, letting you vary burner temperature smoothly for cooking. It replaces a worn or failed control to restore adjustable burner heat. What it does:

• Controls the top burner's heat level by cycling power to the surface element
• Restores adjustable temperature when a burner won't change heat settings
• Stops erratic cycling or constant-on surface caused by a failed switch
• Helps eliminate no-heat or intermittent-heat symptoms at the affected burner

• Disconnect power to the range before servicing to avoid electrical shock
• Remove the cooktop or control panel to access the switch
• Take care when handling glass cooktops, trim, and wiring harnesses to avoid damage

This brass burner orifice meters natural gas to the burner for correct flame size and reliable cooking heat. Replaces a worn or clogged orifice to restore consistent ignition and even burner performance. What it does:

• Controls gas flow to the burner for a stable, properly sized flame
• Helps correct low, uneven, or weak burner flames caused by a restricted orifice
• Prevents rich/sooty combustion from an oversized orifice
• Used where a 2.5k BTU natural gas flow rate is required for the burner

• Turn off gas and electricity before servicing; follow all safety precautions
• Remove burner cap and unscrew old orifice; install new orifice hand-tight then snug with appropriate tool
• Do not overtighten; check for gas leaks after installation using a leak-safe method

This orifice controls natural gas flow to a burner for a precise 17.5K BTU output, restoring proper flame size and consistent heating. Use when a burner produces weak, uneven, or no flame. What it does:

• Meter gas to the burner for a 17.5K BTU natural gas flame
• Helps correct low or uneven burner flames and improves heat output
• Commonly replaced when a burner won't light, sputters, or shows an unstable/yellow flame
• Works as the fixed orifice that matches appliance gas pressure and burner design

• Shut off gas supply and disconnect power before servicing
• Replace only with the correct orifice size for safe operation
• Use proper fittings and thread sealant rated for gas; check all connections for leaks

This heavy-duty 15" igniter lead wire connects the oven/range igniter to the appliance wiring, providing a durable electrical path for reliable ignition. It replaces worn or damaged lead wires to restore consistent burner lighting. What it does:

• Carries ignition voltage from the control harness to the oven/range igniter
• Helps prevent intermittent or no-heat symptoms caused by cracked, frayed, or corroded wiring
• Designed for high-temperature areas near the oven or burner assembly
• Maintains a secure electrical connection for stable ignition performance

• Disconnect power and shut off gas supply before accessing the appliance
• Inspect and replace only when the wire shows visible damage, charring, or loose terminals
• Handle ceramic or insulated ends carefully to avoid cracking; ensure tight terminal connections

This cast-iron burner grate supports cookware above a gas burner, restoring a stable cooking surface and proper heat distribution. It replaces a cracked, warped, or missing grate so pots and pans sit securely on the cooktop. What it does:

• Provides a stable platform for cookware over a gas burner to improve cooking consistency.
• Keeps cookware centered over the flame and helps prevent tipping or sliding.
• Replaces grates with chips, cracks, or excessive wear that can interfere with heating.
• Helps maintain safe spacing between flame and cookware for efficient operation.

• Only install when the range is cool and all controls are OFF; disconnect power/gas per manufacturer instructions if required.
• Remove old grate, clean cooktop surface, and set new grate into position; no special tools usually required.
• Ensure the grate sits flat and stable before use; do not use if warped or damaged.
• Clean with non-abrasive cleaners and dry thoroughly to help prevent surface corrosion.

The Grate Pad is an OEM component for Whirlpool gas and electric ranges. Located underneath grates atop burner assemblies, this insulating pad protects the cooktop surface during use.

Symptoms of a degraded or improperly fitting grate pad include:

• Scratches or nicks appearing on the ceramic glass cooktop
• The range of burners becoming more difficult to clean
• Noise or vibration issues heard from the cooktop area

Causes related to normal wear over extended use, exposure to cleaning chemicals, or damage from heavy pans accidentally sliding off grates.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels and components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose trim. It's sized for appliance sheet-metal and trim fastening and matches the OEM finish for visible areas. What it does:

• Fastens panels, brackets, trims and small components to prevent movement and vibration
• Helps restore proper alignment and reduces rattling or gaps caused by missing or damaged fasteners
• Fits standard 8-18 threads with a 1.00 in. shank for common appliance mounting points
• Matches white finish for a discreet appearance on exposed areas

• Disconnect power and remove any access panels before working on the appliance
• Use the proper driver (Phillips or specified head) and start threads by hand to avoid cross-threading
• Tighten firmly but avoid over-torquing to prevent stripping or damaging sheet-metal
• Replace all like fasteners for even fit and alignment

This indicator light lamp assembly notifies you when a control or function is active and restores visible status feedback for your appliance. It's a small, direct-replacement lamp used on control panels and status indicators. What it does:

• Illuminates control-panel indicators so you can see operating status and selected settings.
• Replaces a dim, flickering, or non-working indicator light.
• Helps diagnose control and user-interface issues by restoring visible feedback.
• Fits into the panel socket and connects to the existing wiring harness.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Access typically requires removing the control or trim panel; keep screws and fasteners organized.
• Handle the lamp and lens carefully to avoid damage; do not force-fit.

This knob bezel is the trim ring that sits behind a control knob, covering the panel opening and spacing the knob correctly. Replacing a cracked, loose, or missing bezel restores a finished look and smooth, consistent knob feel.

• Provides finished trim and support around the control-shaft opening
• Maintains proper clearance so the knob turns without scraping the panel
• Helps keep the knob aligned and seated on the shaft
• Helps when you notice wobbling, visible gaps, broken/missing ring, or a hard-to-turn knob

• Disconnect power (and gas, if applicable) before servicing
• Pull the control knob straight off; remove the old bezel from the panel
• Align the new bezel's orientation tabs and press it fully into place
• Reinstall the knob and verify smooth operation

This burner head replaces a damaged or clogged surface burner to restore proper gas flow and even flames on a gas cooktop. It provides a stable burner base for the burner cap and helps maintain consistent heat for cooking. What it does:

• Directs gas to the burner ports so the burner cap produces an even flame
• Helps restore normal burner performance when flames are weak, uneven, or misdirected
• Works with the existing burner cap and igniter to light and sustain a steady flame
• Prevents flame lift and popping caused by warped or clogged burner openings

• One surface burner head

• Turn off the gas supply and disconnect power to the range before beginning work
• Allow the appliance to cool completely; remove the burner cap and replace the burner head, ensuring ports align correctly
• Hand-tighten and seat parts; avoid over-tightening and verify the burner cap sits flat on the head
• If the igniter or burner cap is damaged or cracked, replace those components as well for reliable operation

This surface burner head directs and shapes the gas flame for even heating on a gas cooktop. It restores proper flame pattern and helps burners light and heat cookware reliably. What it does:

• Replaces a damaged or warped burner head to restore consistent flame distribution.
• Helps correct uneven heating, sputtering flames, or flame lift caused by cracked or corroded heads.
• Works with compatible cooktop caps and grates to safely contain the burner flame.
• Fits the factory burner assembly to maintain proper spacing and ignition performance.

• One replacement burner head

• Turn off gas supply and power to the appliance before beginning any work.
• Clean surrounding surface and check burner cap and orifice for debris before reassembly.
• Hand-tighten and seat parts; avoid overtightening.
• Use only with compatible burner caps, grates, and factory-specified components.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
