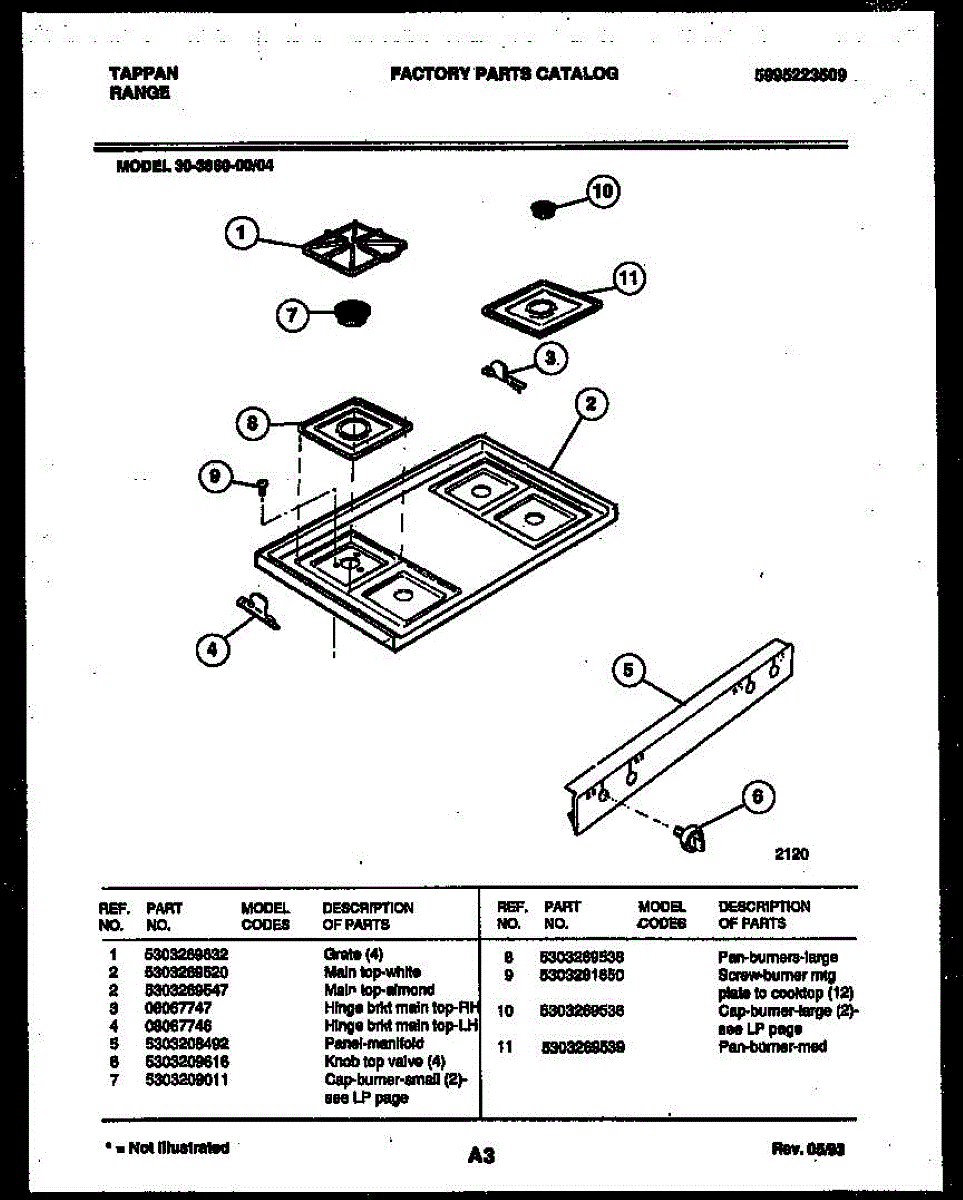

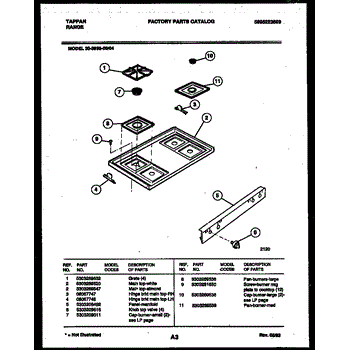

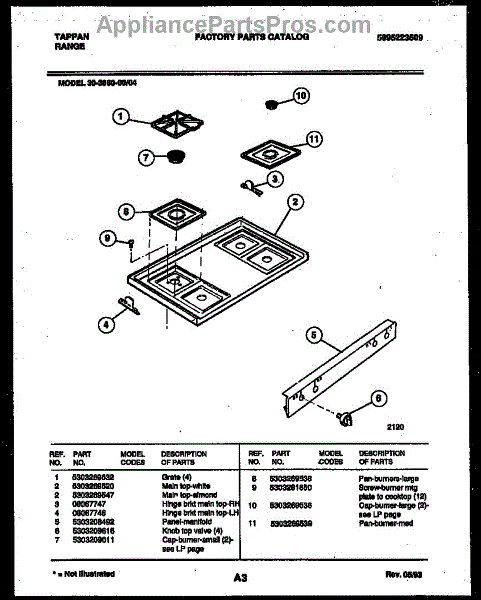

Parts for Frigidaire 30-3860-00-04: 03 - Cooktop Parts

Set Of 4

This manifold panel is the replacement cover that mounts over the appliance manifold to protect internal tubing and provide the finished surface for controls. Restores proper fit and appearance after damage or wear. What it does:

• Covers and protects the manifold and associated tubing from debris and accidental contact
• Provides the finished mounting surface for control components and trim
• Helps maintain correct alignment of control openings and knobs
• Commonly replaced when the panel is dented, cracked, missing, or has broken mounting tabs

• Disconnect power (and gas supply on gas models) before starting any repair
• Use care handling sharp edges; wear gloves to avoid cuts
• Removal typically requires lifting or removing the cooktop/control assembly
• Secure all mounting tabs and fasteners; do not force mismatched parts

This part has been discontinued and is no longer available.

By Tappan/Frigidaire. Single square drip pan with an approximate 3-3/4" opening. Color: Chrome. Fits most conventional gas ranges (GE, HotPoint, Tappan, Frigidaire and others).

This burner mounting screw fastens the surface burner assembly to its base on the cooktop, keeping it stable and properly aligned. Replace stripped, rusted, or missing screws to eliminate wobble and maintain even flame positioning.

• Secures the surface burner to the orifice holder/cooktop assembly
• Helps keep the burner level, stable, and properly seated
• Can address a loose or wobbly burner or one that lifts when removing the grate/cap
• Restores proper seating when original hardware is lost or corroded

• Disconnect power and shut off the gas supply; allow the cooktop to cool completely
• Remove grate, cap, and burner head (as designed) to access the fastener
• Start threads by hand and use the correct driver to avoid cross-threading
• Tighten snugly without overtightening; clean or chase threads if corrosion is present
