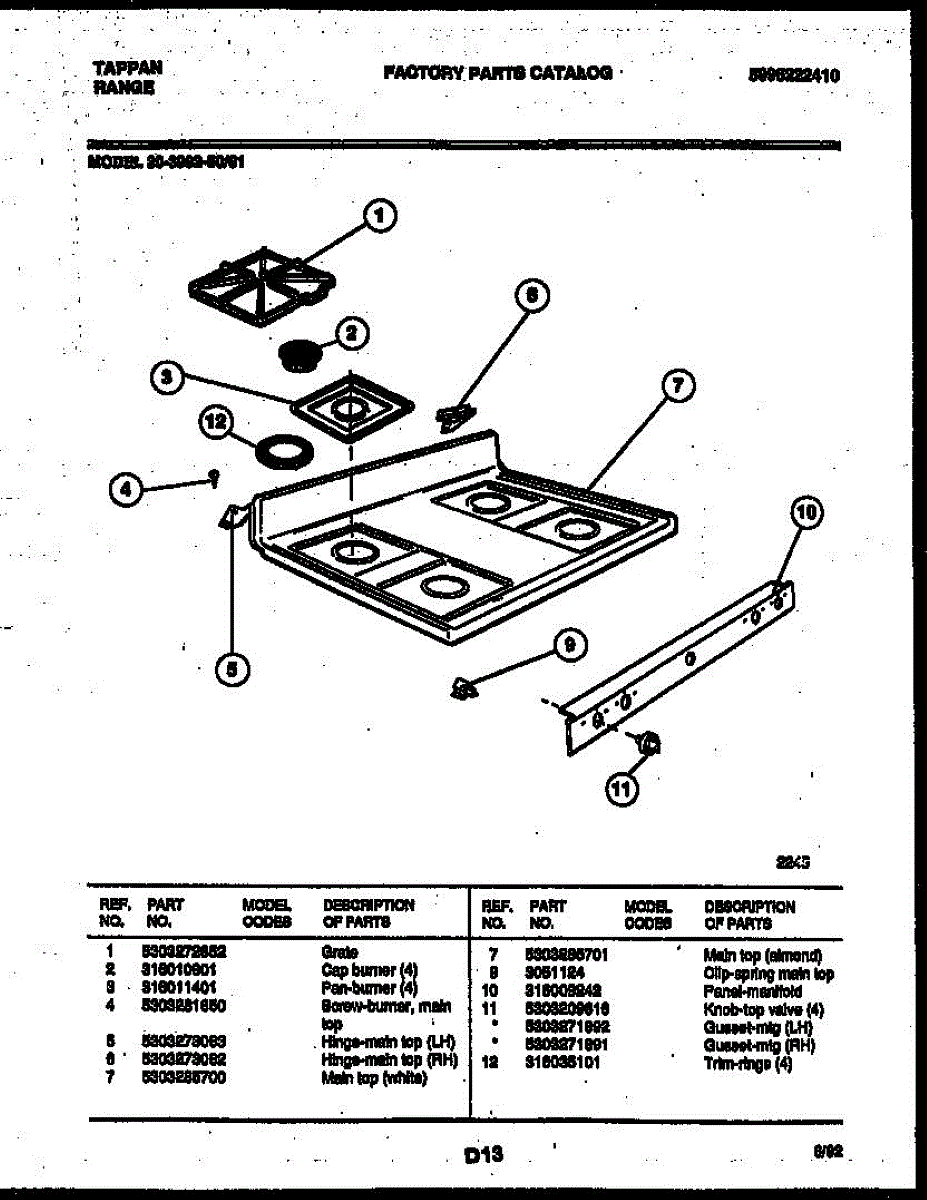

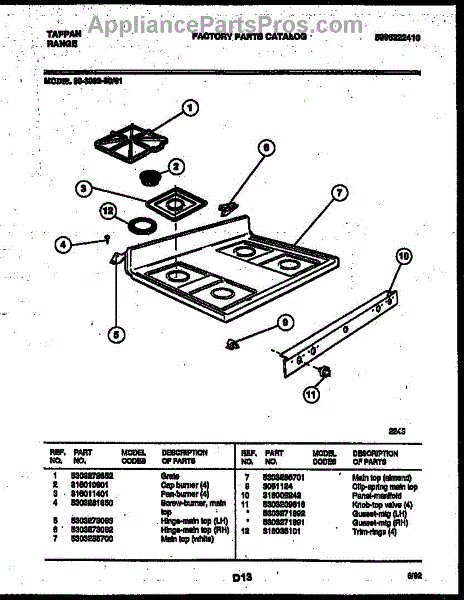

Parts for Frigidaire 30-3982-23-01: 03 - Cooktop Parts

Set Of 4

This burner cap sits on top of a gas cooktop surface burner to shape and protect the flame for even heating and safe operation. It restores proper flame pattern and helps keep the burner head clean. What it does:

• Covers the burner head to direct gas flow and create an even flame
• Helps prevent food and spills from clogging the burner ports
• Can improve ignition consistency and reduce yellow or uneven flames
• Replaces cracked, warped, or missing caps that cause poor heat distribution

• One replacement burner cap

• Ensure the appliance is OFF and completely cool before servicing
• Lift off the old cap and set the new cap in the correct position on the burner head
• No special tools required; verify the cap sits flat and centered before use
• Inspect for cracks or heavy corrosion; replace if damaged

The Square Gas Drip Pan is an OEM part for Frigidaire gas ranges. This component is designed to sit beneath the burner to catch spills, drips, and splatters during cooking. It measures 9” wide by 9” deep.

Symptoms of a bad Square Gas Drip Pan include:

• Heavy accumulation of burnt-on grease and food particles that can be difficult to clean.
• Rusting or corrosion that compromises the integrity of the pan.
• Warping or bending of the pan, which can affect its fit and function.
• Discoloration or severe staining that detracts from the overall appearance of the stove.

Causes of a bad drip pan can include exposure to high temperatures, acidic or sugary spills that are not cleaned promptly, and general wear and tear over time.

This OEM part is also compatible with other brands like Electrolux, Gibson, Kelvinator, and Kenmore models.

This burner mounting screw fastens the surface burner assembly to its base on the cooktop, keeping it stable and properly aligned. Replace stripped, rusted, or missing screws to eliminate wobble and maintain even flame positioning.

• Secures the surface burner to the orifice holder/cooktop assembly
• Helps keep the burner level, stable, and properly seated
• Can address a loose or wobbly burner or one that lifts when removing the grate/cap
• Restores proper seating when original hardware is lost or corroded

• Disconnect power and shut off the gas supply; allow the cooktop to cool completely
• Remove grate, cap, and burner head (as designed) to access the fastener
• Start threads by hand and use the correct driver to avoid cross-threading
• Tighten snugly without overtightening; clean or chase threads if corrosion is present

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

This part has been discontinued and is no longer available.
