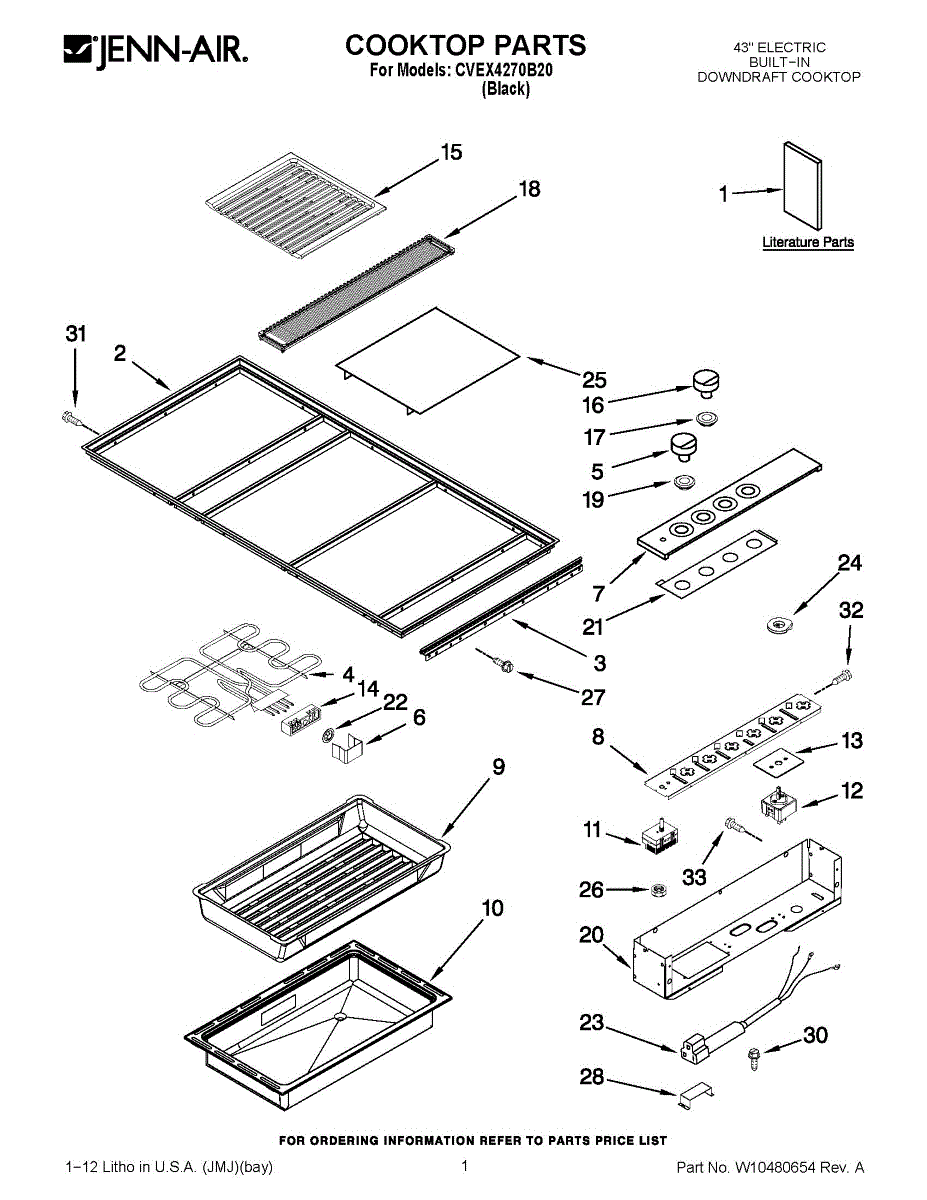

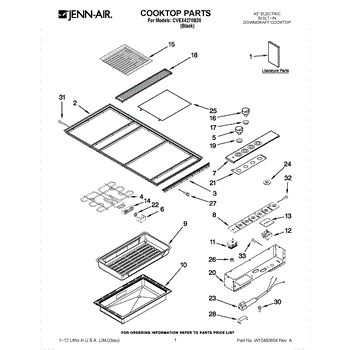

Parts for Jenn-Air CVEX4270B20: 01 - Cooktop Parts

A replacement control knob that restores safe, reliable selection of settings on the appliance. Fits the original shaft design to provide a secure, easy-turn interface for temperature and function selection. What it does:

• Replaces cracked, stripped, missing, or loose control knobs so settings can be selected and held securely.
• Engages the control shaft spline to transmit user input to the selector or valve.
• Provides a tactile grip and clear pointer for accurate setting selection.
• Helps resolve symptoms like a knob that won't turn, won't stay set, or spins freely without engaging the control.

• Disconnect power to the appliance before starting any repair.
• Align the knob to the control shaft spline and push straight on until fully seated; do not force.
• If the knob does not seat easily, verify shaft and spline condition before proceeding.

This surface burner infinite switch regulates power to the top burner based on your knob setting. Replacing a failed switch restores smooth, accurate heat control when a burner won't heat correctly, only runs on high, or won't shut off.

• Regulates power cycling to achieve the selected heat level on the surface element
• Common symptoms: burner won't heat, heats only on high, won't turn off, or temperature control is erratic
• Restores responsive burner operation to match knob adjustments

• Disconnect power at the breaker before servicing; allow the cooktop/range to cool.
• Pull off the knob and remove the control/back panel to access the switch.
• Transfer wires to the new switch one at a time to the matching terminals; secure the switch in place.
• Reassemble, reinstall the knob, restore power, and test burner operation.
