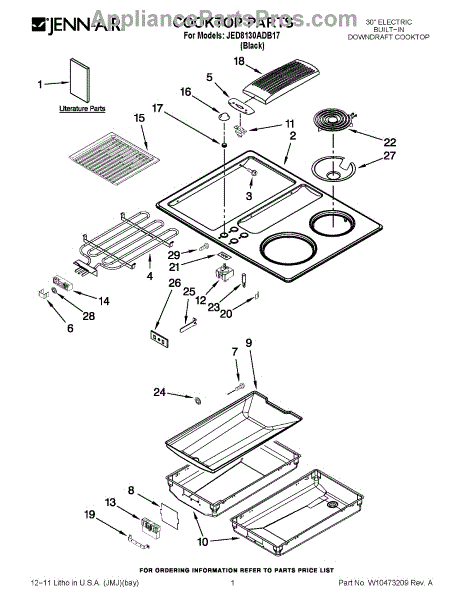

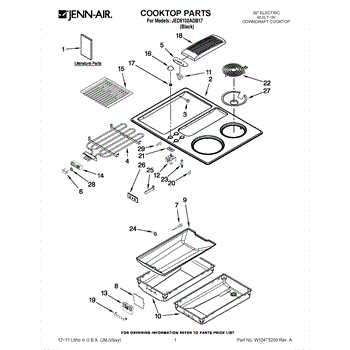

Parts for Jenn-Air JED8130ADB17: 01 - Cooktop Parts

This grill element is the radiant heating coil used for the appliance's grill/broil function. Replacing a failed element restores strong, even radiant heat for searing, browning, and finishing as designed.

• Provides direct radiant heat for the grill/broil cycle
• Cycles under control to maintain target temperature
• Common fix for no broil/grill heat or uneven top browning
• Visible damage such as blisters, breaks, or arcing points indicates replacement is needed

• Disconnect power at the breaker or unplug before servicing; allow the unit to cool
• Access the element per your model; remove mounting screws and carefully lower/slide it out
• Disconnect the wire terminals; support wires so they don't retract into the cavity
• Attach wires to the new element, secure with original hardware, and avoid bending the coil

This surface burner infinite switch regulates power to the top burner based on your knob setting. Replacing a failed switch restores smooth, accurate heat control when a burner won't heat correctly, only runs on high, or won't shut off.

• Regulates power cycling to achieve the selected heat level on the surface element
• Common symptoms: burner won't heat, heats only on high, won't turn off, or temperature control is erratic
• Restores responsive burner operation to match knob adjustments

• Disconnect power at the breaker before servicing; allow the cooktop/range to cool.
• Pull off the knob and remove the control/back panel to access the switch.
• Transfer wires to the new switch one at a time to the matching terminals; secure the switch in place.
• Reassemble, reinstall the knob, restore power, and test burner operation.

This replacement surface burner knob restores reliable control of your cooktop or range. It attaches to the control shaft so you can turn the surface element/burner on and accurately adjust the heat level. What it does:

• Mounts on the surface control valve/switch shaft to select OFF and adjust heat settings
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps resolve issues like a knob spinning freely, wobbling, or not staying on the stem
• Restores confident, consistent control over the surface burner/element

• 1 surface burner knob

• Disconnect power and allow all burners to cool; if applicable, shut off gas
• Pull the old knob straight off the control shaft—do not pry against the panel
• Align the new knob with the shaft and press straight on until fully seated
• Verify smooth operation and OFF alignment; reseat if needed

1200w. Size: 6 inch. Location: Left front, right rear, and left rear.
