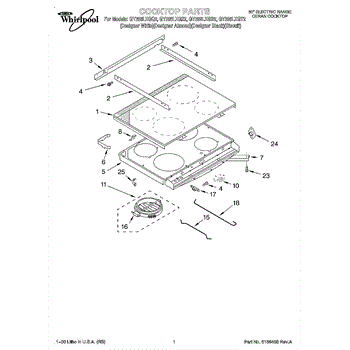

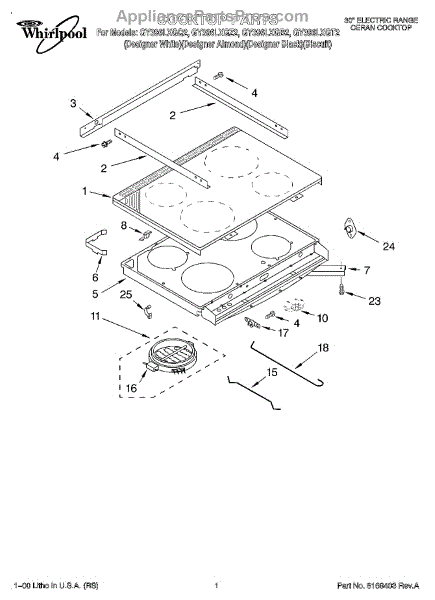

Parts for Whirlpool GY396LXGT2: 01 - Cooktop Parts

Color: Black. Other colors: For white use 9781894CW, for biscuit use 9781894CC.

Color: Biscuit. Other colors: For black use 9781894CB, for white use 9781894CW.

Color: White. Other colors: For black use 9781894CB, for biscuit use 9781894CC.

Size: 10-16 x 3/8 inch.

Comes with limiter

Comes with limiter

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element is an OEM replacement part for Whirlpool ranges and cooktops. Specifically designed for the 7" cooktop element, the entire body of the Surface Element measures approximately 8" in diameter. It generates and distributes heat evenly across the cooktop.

Causes of a bad Surface Element can include electrical issues, such as wiring problems or a malfunctioning switch, and physical damage or wear that impairs its heating capability.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat
• Visible damage to the element, such as burns or breaks
• The element not responding to the control switch
• Uneven cooking results due to fluctuating temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Small, ceran element rod.

Large, ceran element rod.

Size: 10-16 x 1/2 inch.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation
