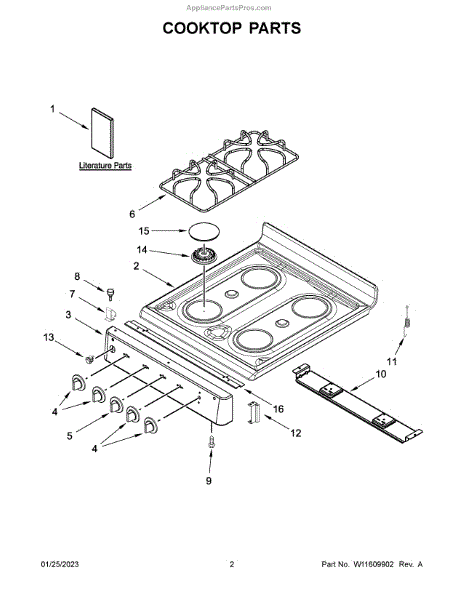

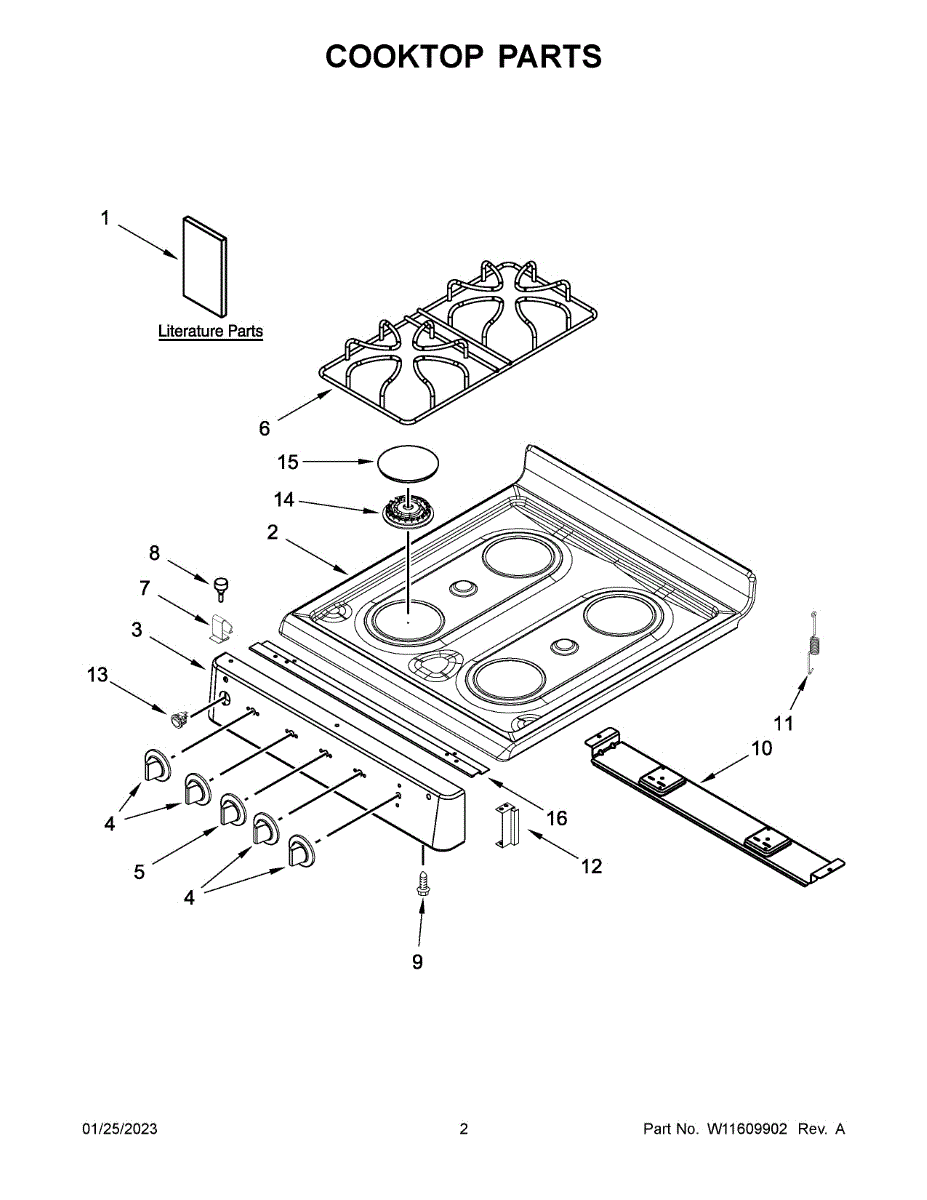

Parts for Amana AGG222VDW6: Cooktop Parts

Color: White

This backguard is the metal rear panel that mounts behind the range controls to protect internal components and finish the appliance's rear appearance. It restores a secure, finished back surface and helps keep wiring covered. What it does:

• Covers and protects control housing, wiring and components at the rear of the range
• Restores a finished appearance after damage, corrosion or previous part removal
• Helps maintain correct spacing and mounting for the control console
• Prevents debris from entering the control area

• Disconnect power to the appliance before beginning any work to avoid shock
• May require removal of the cooktop or control console and several mounting screws
• Use caution handling sheet metal edges; wear gloves to prevent cuts

This control knob replaces a worn or missing dial so you can reliably select settings on your appliance. It restores a secure fit on the control stem and smooth turning for accurate adjustments.

• Interfaces with the control stem to set temperatures, cycles, or power levels
• Replaces cracked, stripped, loose, or missing knobs that wobble or won't stay on
• Helps restore smooth turning and a firm, accurate feel
• Common symptoms: knob broken, spins freely, hard to turn, or falls off

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the old knob straight off the control stem; avoid prying sideways
• Align the new knob with the stem shape and press until fully seated; if your design uses a set screw, tighten gently
• If the knob won't fit or stay on, inspect the control stem for damage

Color: Black. Includes one double grate. For gray order WPW10180089.

The Clip is an OEM component specifically designed for Whirlpool ranges. This clip plays a role in securely holding and mounting components within the appliance.

The clip is designed to securely grip parts in place, preventing unwanted movement or dislodging that could impact the operation or result in damage. It allows for components to be effortlessly installed while remaining firmly affixed.

Causes of a bad clip can include wear and tear over time, damage due to excessive force or impact, or deterioration from heat exposure.

Symptoms of a bad clip include:

• Loose or detached components inside the appliance
• Increased vibration or unwanted noise during operation
• Components that are not sitting securely or properly installed
• Difficulty accessing or removing parts that rely on the clip

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This burner head sits on the cooktop and channels gas through precision ports to produce an even flame. Replacing a worn or clogged head restores quick ignition and consistent heat across the burner.

• Mixes gas and air and distributes the flame evenly around the burner
• Works with the spark igniter for reliable lighting
• Can address delayed ignition or a burner that won't light due to clogged or damaged ports

• Disconnect power and shut off the gas supply; allow the surface to cool completely
• Remove the grate and burner cap; remove the center retaining screw and lift off the old head
• Clean the orifice and igniter area; align and seat the new head flat over the orifice and igniter
• Reinstall the cap and grate; restore utilities and verify ignition and a uniform flame pattern (do not enlarge or poke burner ports)

Color: Black. Measures about 3 inches in diameter. For grey use WP98017461.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification
