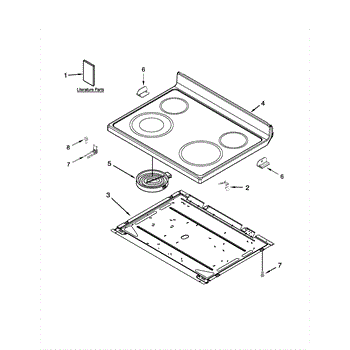

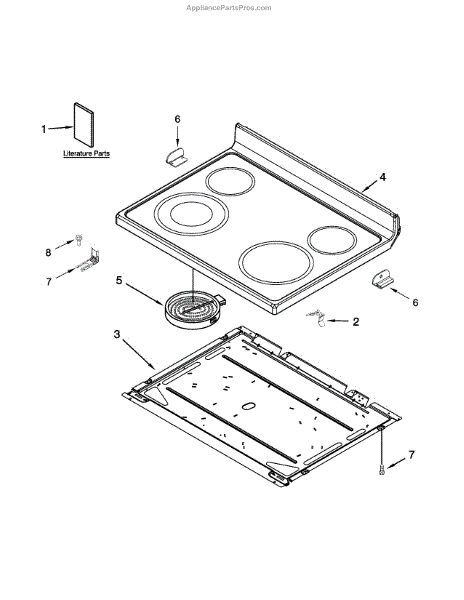

Parts for Ikea IES505DS0: Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This surface heating element replaces a broken or worn top burner to restore electric range cooking performance. It provides a direct-replacement heating coil for compatible Whirlpool-style cooktops and matches OEM fit and function. What it does:

• Heats cookware on the cooktop surface so pots and pans reach cooking temperature
• Replaces a burner that won't heat, heats intermittently, or shows visible damage
• Restores even heating when the original element has burned out or failed
• Works with the existing terminal connections and locking mechanism for a direct swap

• One surface heating element

• Disconnect power to the range at the breaker before servicing to avoid shock
• Remove the cooktop or drip pan as needed to access element terminals
• Disconnect the element from its terminal block and replace with the new element, ensuring secure terminal connections

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Radiant Surface Element is an OEM part for Whirlpool ranges. It provides the heat necessary for cooking by radiating heat through the cooktop surface. This element is designed to fit under the glass surface of your range, delivering consistent and even heat for various cooking tasks.

Causes of a bad radiant surface element can include wear and tear from regular use, overheating, or damage due to impact. Electrical issues can also affect the performance of the element, leading to inconsistent heating.

Symptoms of a bad Radiant Surface Element include:

• Uneven heating or hot spots
• The element not heating up at all
• Visible damage or burn marks on the element
• Difficulty in controlling the temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 2500 watts R/F element

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This factory wire harness is the pre-terminated wiring assembly that links key components inside your appliance. Replacing a damaged harness restores reliable electrical connections and can help resolve dead, intermittent, or erratic operation of individual functions. What it does:

• Distributes power and signals between the control and components such as motors, switches, heaters, sensors, and lights
• Provides model-specific, correctly keyed connectors and lengths for secure, clean routing
• Helps correct issues from burnt, broken, pinched, or corroded wires and loose/melted connectors
• Symptoms can include components not running, intermittent operation, error codes, or visible heat damage at connectors

• 1 wire harness assembly

• Disconnect electrical power before servicing; if applicable, also shut off water or gas supplies
• Photograph existing routing and connections to match the original layout during reassembly
• Route the new harness away from sharp edges, moving parts, and hot surfaces; secure with existing clips/ties
• Seat each connector fully until locked; inspect mating terminals for heat damage and address as needed
