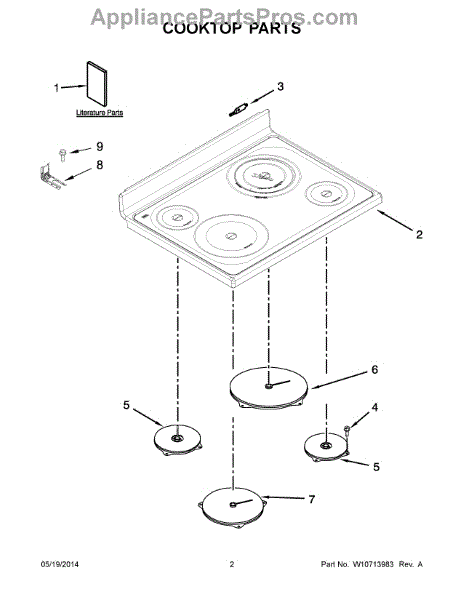

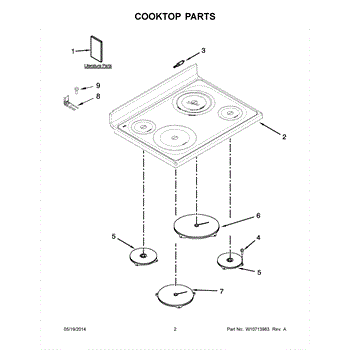

Parts for Kitchenaid KIRS608BSS1: 02 - Cooktop Parts

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This single hotplate is the surface heating element used on compatible electric ranges and cooktops to provide a reliable cooking surface. It replaces a damaged or non-working element so burners heat properly again. What it does:

• Heats cookware on the cooktop for boiling, frying and simmering
• Replaces elements that fail to power on or produce heat
• Restores even heating when an old element heats unevenly or flickers
• Works with the existing burner receptacle and wiring on compatible ranges

• Disconnect power to the appliance at the breaker before servicing
• Allow the cooktop to cool completely and use gloves to avoid cuts
• Handle electrical terminals carefully; verify tight connections during reassembly

This single hotplate is a direct-replacement surface heating element for electric ranges, restoring even cooking and reliable heat on a single burner. It delivers a simple swap to get a cold or weak burner working again. What it does:

• Heats cookware on a single stove-top location so pots and pans cook properly
• Replaces a burner that runs cool, takes too long to boil, or doesn't heat at all
• Restores stable temperature for better cooking control
• Matches OEM mounting and terminal locations for a correct fit

• Disconnect power to the range at the breaker before starting any work
• Handle terminals carefully; avoid bending or damaging connection tabs
• After installation, restore power and test the burner on low and high settings

A single hotplate replacement that restores even surface cooking and reliable heat transfer for electric ranges. Designed to mount in the cooktop so pans heat properly and cooking performance returns. What it does:

• Heats cookware on the cooktop surface for boiling, frying and simmering
• Replaces a cracked, warped or visibly damaged hotplate element
• Restores consistent heating when a burner no longer warms or heats unevenly
• Works with the existing burner housing and controls when installed correctly

• Disconnect power to the appliance before starting any work
• Allow the cooktop to cool completely and handle the element by insulated edges
• Verify mounting hardware and wiring connections are secure and match the original
• Test the burner at low and medium settings after installation;

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

Size: 10-24X5/16-NI
