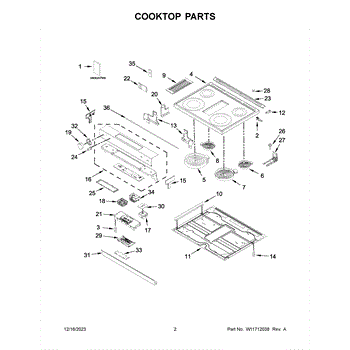

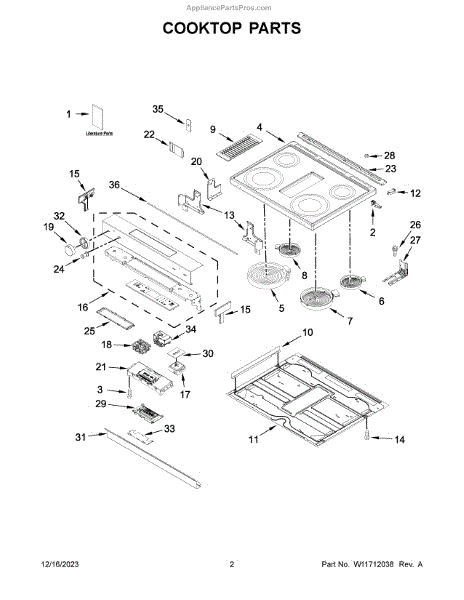

Parts for Kitchenaid KSEG950ESS6: Cooktop Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement cooktop top panel that provides the flat cooking surface and structural support for burners, restoring a stable, safe area for cookware and improving appliance appearance after surface damage or wear. What it does:

• Provides the cooking surface and supports heating elements and burner assemblies.
• Restores a secure, level surface when the original panel is cracked, chipped, warped, or cosmetically damaged.
• Helps improve burner seating and alignment that can affect even heating.
• Returns a finished appearance to the range and prevents debris from entering internal components.

• Disconnect power to the appliance at the breaker before starting any work.
• Handle the panel carefully—wear gloves and eye protection, especially if the surface is cracked.
• Use the correct part number and hardware; keep removed fasteners and components organized for reassembly.

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

This is a radiant surface heating element for smooth-top electric ranges. It replaces a failed burner to restore up to 1300 watts of even heat and dependable temperature control under the glass-ceramic cooktop. What it does:

• Generates radiant heat beneath the glass surface when powered by the burner control
• Restores proper heating if a burner will not heat, heats unevenly, or cycles off too quickly
• Helps eliminate long heat-up times caused by a weakened or open element
• Replaces elements with visible damage such as broken ribbons, burn spots, or charred terminals

• 1 radiant surface element (1300W)

• Disconnect power at the breaker or unplug the range before servicing
• Allow the cooktop to cool fully; lift/prop the glass top to access the element
• Note wire positions; transfer any mounting brackets/clips from the old element and reconnect wires securely
• Handle the element carefully and avoid stressing the ribbon; reassemble and test the burner before finalizing

The Air Grille is an OEM part for Whirlpool gas ranges. It is installed at the front of the range below the cooktop to direct ventilation and airflow for safe, efficient operation.

Causes of a bad air grille typically involve normal wear and tear exposing the grille to spills and debris, accidental dents or damage during cleaning, or corrosion of metal mesh components.

Symptoms of a bad air grille include:

• An inability for the range to properly vent excessive heat and combustion gases
• Overheating of internal range components without sufficient airflow
• Dust or residue blowing from the front of the range near openings

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas range models.

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

This end cap is the outer trim piece that finishes and protects the edge of a appliance panel, restoring a clean appearance and helping keep the panel properly aligned. Ideal for replacing a cracked, missing, or worn end cap. What it does:

• Covers and protects the outer edge of a control or access panel to prevent snagging and moisture intrusion
• Helps hold the panel edge flush for a finished look and proper fit
• Replaces cracked, broken, or otherwise damaged trim that affects appearance or panel alignment
• Matches the OEM shape and attachment points for a direct replacement when part numbers match

• Disconnect power to the appliance before starting any repair
• Usually installs with a few screws or snap clips; keep hardware from the original part when possible
• Handle edges carefully to avoid scratching adjacent surfaces during installation

The control panel is an OEM part for Whirlpool ranges. It houses all the control buttons, digital displays, and components that allow users to operate and program the range features. The control panel is designed to provide intuitive temperature and function selection while withstanding high heat from repeated oven use.

Causes can be normal wear and tear, exposure to accidental damage or spills, or internal component failure over time.

Symptoms of a bad control panel include:

• Buttons or knobs not working properly
• Lights or displays flickering or malfunctioning
• Responsiveness issues when selecting cooking modes
• Physical damage like cracks or peeling affecting usability

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement control knob restores safe, reliable finger control for an appliance's front panel. It provides a secure grip to select settings and replaces worn, cracked, or missing knobs so controls operate smoothly. What it does

• Fits onto the control shaft so you can turn and select oven, range or appliance settings.
• Replaces knobs that are cracked, loose, hard to turn, or missing.
• Restores clear indicator alignment for accurate setting selection.
• Helps prevent accidental slips and improves grip when adjusting controls.

• Disconnect power to the appliance before servicing; follow manufacturer safety guidance.
• Typically installs by pulling the old knob straight off the shaft and pushing the replacement onto the shaft until seated.
• If the knob feels loose after installation, check the shaft adapter or insert for wear and replace as needed.

This control knob replaces a damaged or missing range/oven control knob to restore safe, reliable control of temperature and cooking settings. It provides a secure grip and direct engagement with the control shaft for accurate adjustment. What it does:

• Fits onto the appliance control shaft to select temperature, burner or oven settings
• Restores grip and tactile feedback when the original knob is cracked, stripped or missing
• Prevents accidental setting changes caused by a loose or damaged knob
• Works with split-shaft or D-shaft style controls depending on your original knob design

• Pull-off style: firmly pull the old knob straight off the control shaft; push the replacement knob on until fully seated
• Verify shaft type and alignment before forcing the knob onto the control; do not hammer or over-torque
• Disconnect power or follow appliance safety procedures when working near heating elements or live controls

Restore precise control with this replacement control knob. It mounts on the control shaft so you can smoothly select settings again, replacing a cracked, stripped, or missing knob and bringing back a clean, finished look.

• Attaches to the control shaft to select temperature, power level, or cycle
• Common fix for knobs that crack, strip, wobble, or fall off
• Restores positive engagement so the control turns as intended
• Helps maintain consistent operation and an intact user interface

• Disconnect power and shut off gas/water if applicable before servicing
• Pull the old knob straight off; avoid prying against the console
• Align the flat side or splines of the shaft and press the new knob on firmly until seated
• Verify smooth rotation and proper engagement after installation

Replacement control knob restores easy, accurate operation of your appliance's control panel. Fits the factory control shaft to replace cracked, loose, or worn knobs so you can select settings with a secure grip and clear markings. What it does:

• Replaces a damaged, cracked, or missing control knob so functions can be selected reliably.
• Provides a secure grip and clear position indication for precise setting selection.
• Commonly used when the original knob spins on the shaft, is loose, or has worn-off markings.
• Intended to match the appliance's original control mounting.

• Disconnect power to the appliance before removing or installing the knob.
• Most knobs simply pull straight off the control shaft; align the new knob and push on until fully seated.
• If the knob is held by a screw or retaining clip, save the hardware and refer to the owner's manual for removal specifics.
• If the control shaft is damaged, repair or replace the underlying control assembly before installing the new knob.

The Control-Electric is an OEM part for Whirlpool ranges. It houses the digital controls that allow users to set various cooking functions and temperatures with ease.

Causes of a faulty control board can include liquid damage, overheating, power surges, or regular component failures over many usage cycles.

Symptoms of a bad control board include:

• Unresponsive or inaccurate buttons and dials
• Erratic or incorrect temperature readings
• Inability to ignite burners or turn on oven lights
• Blank or non-functioning display screens

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This trim vent replaces a damaged or worn vent grille to restore proper airflow appearance and help direct air where the appliance needs it. It's a direct-replacement exterior trim piece that cleans up the unit's vent opening. What it does:

• Covers and protects the appliance vent opening while providing a finished appearance
• Directs airflow and helps prevent debris from entering the vent area
• Replaces cracked, broken, or faded vent trim that affects appearance or fit
• Helps reduce rattling or loose trim that can occur with damaged vent pieces

• One trim vent (single grille piece)

• Disconnect power to the appliance before beginning any work
• Typically installs with snap-in tabs or a few screws; avoid forcing to prevent breakage
• Inspect surrounding clips or screws and replace if worn for a secure fit

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Control Board is an OEM replacement part for Whirlpool ranges. It is responsible for controlling and regulating various functions of the range, such as temperature settings, timers, and cooking modes.

A bad control board can occur due to electrical malfunctions, component failure, or damage. If you notice symptoms such as unresponsive buttons, error codes on the display, or the range not functioning properly, it may be time to replace the control board.

Symptoms of a bad control board include:

• Unresponsive buttons or controls
• Error codes displayed on the control panel
• Malfunctioning or inconsistent temperature settings

Restore your range by replacing the faulty or damaged control board with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.

This bezel-knob replaces a worn, cracked or missing control knob trim to restore a finished look and proper fit around the control shaft. It helps keep the control knob centered and improves usability of the control panel. What it does:

• Replaces damaged or cosmetic bezel around a control knob
• Centers and stabilizes the control knob on the control shaft
• Restores a finished appearance to the control panel
• Helps eliminate wobbling, binding, or misalignment when turning controls

• Disconnect power to the appliance before beginning any service
• Typically installs by aligning over the control shaft and pressing into place; panel removal may be required on some models
• Use care to avoid damaging surrounding trim or control components during installation

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
