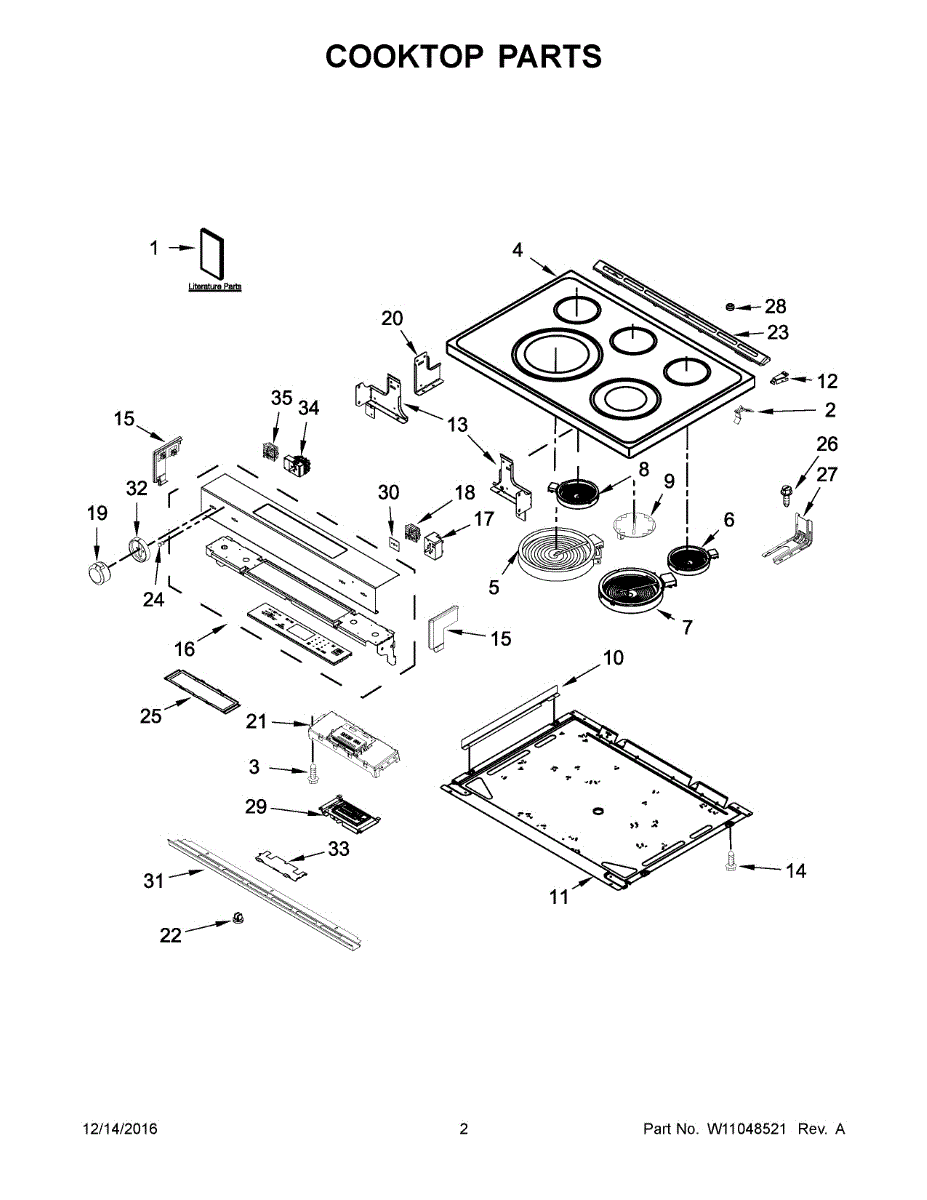

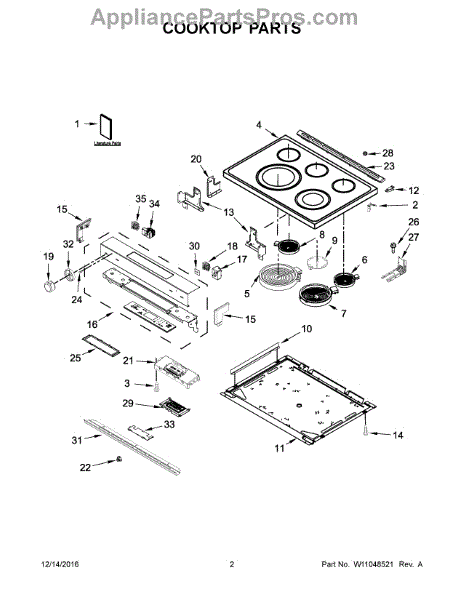

Parts for Kitchenaid YKSEG700ESS1: 02 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The surface element is an OEM part for Whirlpool electric ranges. It is responsible for generating heat through its electric coils or elements on the cooktop.

Causes of a bad surface element can include wear and tear over time, cracks or damage to the electric coils from heat stress or impact, or failure of the underlying electric components.

Symptoms of a bad surface element include:

• Slow or uneven heating of the cooktop surface
• Hot or cold spots when cooking
• Elements failing to glow red when turned on
• Burned or charred pans and cookware
• Tripped breakers or blown fuses

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, and some Kenmore electric ranges and cooktops.

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

This is a radiant surface heating element for smooth-top electric ranges. It replaces a failed burner to restore up to 1300 watts of even heat and dependable temperature control under the glass-ceramic cooktop. What it does:

• Generates radiant heat beneath the glass surface when powered by the burner control
• Restores proper heating if a burner will not heat, heats unevenly, or cycles off too quickly
• Helps eliminate long heat-up times caused by a weakened or open element
• Replaces elements with visible damage such as broken ribbons, burn spots, or charred terminals

• 1 radiant surface element (1300W)

• Disconnect power at the breaker or unplug the range before servicing
• Allow the cooktop to cool fully; lift/prop the glass top to access the element
• Note wire positions; transfer any mounting brackets/clips from the old element and reconnect wires securely
• Handle the element carefully and avoid stressing the ribbon; reassemble and test the burner before finalizing

This replacement pan is the appliance's drip tray that catches and channels condensate or minor spills to help prevent water from pooling inside the cabinet. It restores proper water collection and reduces the risk of internal leaks. What it does:

• Collects condensate, drips or minor leaks from the evaporator/hoses and channels it to the drain area
• Helps prevent water from pooling beneath components that could cause odor or corrosion
• Restores the appliance's intended water-management function when a cracked or warped pan causes leaks
• Suitable when you see standing water, dripping inside the cabinet, or water under the appliance

• One replacement pan as pictured

• Turn off and unplug the appliance (or shut off power at the breaker) before servicing
• Remove access panels or shelving as needed to reach the pan; keep track of fasteners
• Inspect surrounding hoses and mounts for damage while the pan is out; replace damaged parts as required

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

This end cap is the outer trim piece that finishes and protects the edge of a appliance panel, restoring a clean appearance and helping keep the panel properly aligned. Ideal for replacing a cracked, missing, or worn end cap. What it does:

• Covers and protects the outer edge of a control or access panel to prevent snagging and moisture intrusion
• Helps hold the panel edge flush for a finished look and proper fit
• Replaces cracked, broken, or otherwise damaged trim that affects appearance or panel alignment
• Matches the OEM shape and attachment points for a direct replacement when part numbers match

• Disconnect power to the appliance before starting any repair
• Usually installs with a few screws or snap clips; keep hardware from the original part when possible
• Handle edges carefully to avoid scratching adjacent surfaces during installation

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This insert is a small OEM component designed to fit into a specific location on your appliance to secure, align, or finish an assembly. Replacing a worn, damaged, or missing insert restores proper fit and clean appearance.

• Provides a snug interface or cover within the designated assembly
• Helps prevent looseness, vibration, or gaps in the connected part
• Replaces cracked, worn, or missing insert pieces
• Common symptoms include loose or wobbly parts, misalignment, or a missing cap/cover

• Disconnect power and shut off gas/water before servicing
• Refer to your model's parts diagram to confirm location and orientation
• Use non-marring tools to avoid cosmetic damage
• Seat the insert fully; do not overtighten adjacent fasteners

The Vent Trim is an OEM part for Whirlpool ranges. It enhances the appearance of your kitchen while providing a finished look to the range vent area. It covers the gaps and edges around the range vent, creating a clean design.

A bad vent trim can occur due to wear and tear, accidental damage, or improper installation. If you notice symptoms such as loose or missing trim, gaps around the vent area, or an uneven and unfinished look, it may be time to replace the vent trim.

Symptoms of a bad vent trim include:

• Loose or missing trim
• Gaps around the range vent area
• Uneven and unfinished appearance

Repair your range by replacing the worn-out or damaged vent trim with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This electronic display/user interface assembly mounts behind the control panel and handles button inputs and the visual readout. Replacing a failed board restores a readable display and responsive controls so you can set and monitor functions reliably.

• Drives the control panel display and indicator lights
• Interprets keypad/touch inputs and sends commands to the appliance
• Interfaces with the main control to execute selected functions
• Typical symptoms: blank or dim display, unresponsive or erratic buttons, incorrect readouts, or UI-related error codes

• Disconnect power before servicing; use ESD protection when handling electronics
• Access through the control panel; note screw and clip locations during disassembly
• Transfer any model-specific brackets, trim, or insulators from the original part as required
• Seat wire harness connectors fully; restore power and perform any model-specific UI reset or calibration.

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

The Infinite Switch is an OEM part for Whirlpool ranges. It controls the heat levels of the elements on your cooktop, allowing you to adjust the temperature for precise cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from frequent use, or physical damage due to impacts or spills.

Symptoms of a bad infinite switch include:

• Burners not heating up or heating inconsistently
• Burners stuck on a single heat setting
• No response when adjusting the heat level
• Sparks or electrical odors coming from the control area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
