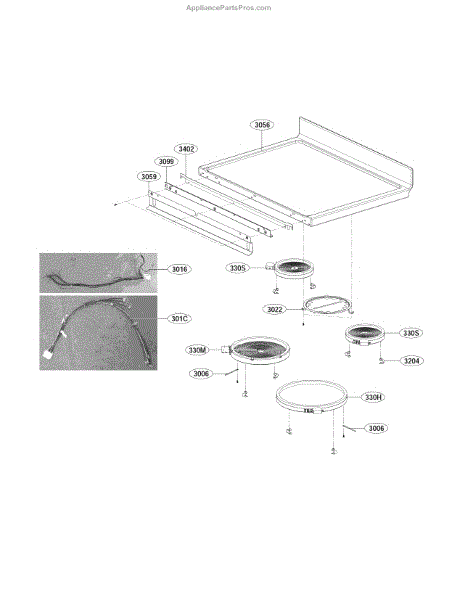

Parts for Lg LDE4413ST / 00: Cooktop Parts

This single wiring harness connects appliance components to ensure reliable electrical signals and restores proper circuit continuity. Use it to replace a damaged or worn harness and help remove intermittent power or function failures. What it does:

• Carries electrical signals between controls, motors, and sensors to enable normal operation
• Restores proper connections when original wiring is frayed, burnt, or damaged
• Helps eliminate intermittent faults, loss of power to a component, or erratic operation caused by bad wiring
• Matches original connector types and routing for a direct replacement

• One pre-assembled single wiring harness as pictured

• Disconnect power (unplug or switch off breaker) before starting any repair
• Inspect mating connectors and terminals; replace any corroded or damaged parts

This radiation heater is the element that delivers direct radiant heat for the microwave's grill/browning feature. Replacing a failed heater restores proper grilling performance and helps foods brown and crisp during grill or combination-cook settings. What it does:

• Supplies radiant heat for grill/browning and combo-cook modes
• Typically mounted at the top of the cavity to radiate heat downward
• Common failure symptoms: no heat in grill mode, element does not glow, poor or uneven browning
• Visual clues can include cracks, blistering, or burnt spots on the heater

• 1 radiation heater element

• Disconnect power before servicing; microwaves contain high-voltage components that can retain a charge even when unplugged
• Access may require removing the outer case and interior shroud; beware of sharp metal edges
• Note wire positions before removal; route leads away from hot or moving parts during reassembly
• Verify secure mounts and connections before testing the grill function

The Dual Surface Element is an OEM part for LG ranges. This part is located on the cooktop and provides heat for cooking. It features two heating zones, allowing for versatile cooking options and accommodating different pot and pan sizes.

Causes of a bad dual surface element can include wear and tear over time, damage from heavy cookware, or electrical issues that cause the element to malfunction.

Symptoms of a bad Dual Surface Element include:

• The element not heating up or only heating partially
• Uneven heating or hot spots
• Visible damage or discoloration on the element
• The element cycling on and off irregularly

This OEM LG part is also compatible with some Kenmore models.

This Radiant Surface Element is an OEM replacement part for LG electric ranges and cooktops. It is a high-power coil heating unit located below the cooktop surface that provides efficient, customizable heat for various cooking needs.

Causes of failure can be wear and damage to coiled filaments from prolonged heating cycles, cracking of ceramic insulators, or loose wiring connections suffering arcing or resistance over time.

Symptoms of a faulty element include:

• Slow or inadequate heating of cookware even on high settings
• Temperature fluctuations within the heating zone
• Burning or charring of spills and foods on the element itself
• Tripped circuit breakers obstructing range operation

This replacement is also compatible with some Kenmore models

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This mounting plate fastens to the wall and supports an over-the-range microwave during installation. Replacing a bent or missing plate restores a secure, level fit and proper weight distribution for the unit.

• Anchors the microwave to wall studs and distributes weight across the bracket
• Aligns the unit for the top mounting bolts and correct clearances
• Replace if the plate is bent, deformed, corroded, or mounting holes are stripped
• Symptoms include: microwave can't be mounted securely, sits crooked, or shifts after installation

• Disconnect power and protect the cooking surface before starting
• Use the installation guide/template for accurate height and level positioning
• Secure the plate to wall studs or approved anchors per your model's instructions
• A two-person lift is recommended when hanging the microwave on the bracket

This heater bracket is a metal mounting support that holds the appliance's heater or heating element securely in place, helping maintain proper alignment and reduce movement. Replacing a bent or broken bracket restores stable support for the heater assembly. What it does:

• Secures the heater or heating element to the appliance frame so the element stays aligned and does not contact other components.
• Prevents rattling, shifting, or sagging of the heater assembly that can cause noise or uneven heating.
• Helps maintain safe clearances between the heater and surrounding parts.
• Used when the original bracket is cracked, bent, or missing hardware.

• Disconnect power (and gas, if applicable) before beginning work to avoid electrical shock or gas hazards.
• Handle metal parts carefully — edges may be sharp. Wear gloves and eye protection.
• Match the part number and orientation, secure all fasteners, and ensure the heater is properly aligned before restoring power.
