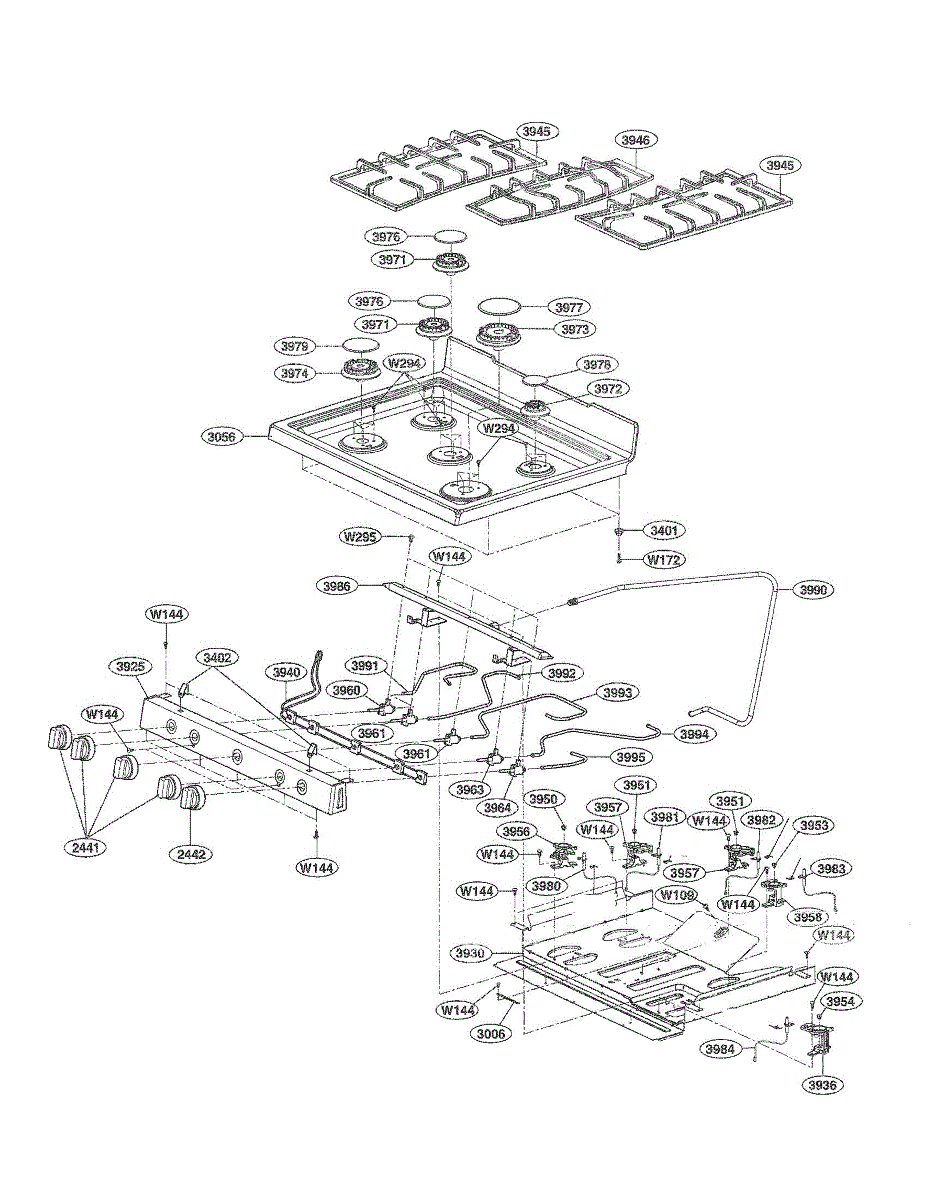

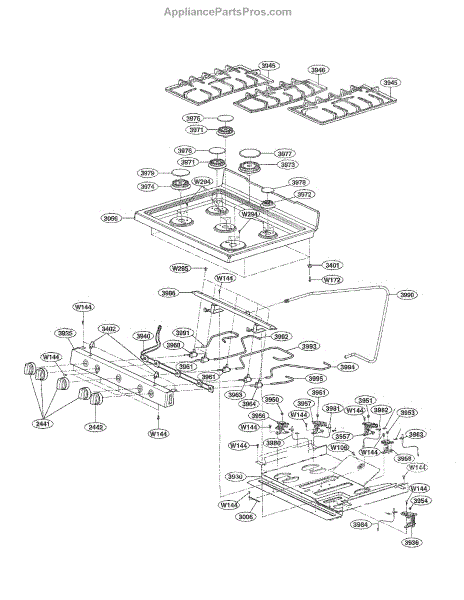

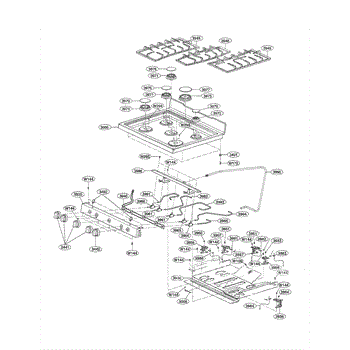

Parts for Lg LDG3015ST/00: Cooktop Parts

This 4.0x16mm tapping screw secures trim and internal components on compatible appliances, providing a reliable fastener for repair or reassembly. Use the correct screw to maintain fit and function during service. What it does:

• Fastens appliance panels, brackets, and small components where a self-tapping thread is required
• Replaces stripped or missing screws that cause loose panels or rattling
• Helps restore proper alignment and secure electrical or mechanical parts
• Suitable where a 4.0 x 16mm size and tapping/sharp thread are specified

• One 4.0x16mm tapping screw (quantity: 1)

• Use the matching screw location and thread engagement; do not force a misaligned fastener
• Tighten until seated; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow appliance safety procedures before servicing
• If screws repeatedly strip, inspect mating threads or use an approved repair insert

The Burner Knob Assembly is an OEM replacement part specific to LG gas ranges and cooktops. It refers to the assembly that includes the control knob and stem that adjusts burner flame levels on the stovetop.

Causes of a bad burner knob assembly can include wear from frequent use that results in hard-to-turn or unstable knobs. Overheating from pans placed directly on the knob could also warp and damage plastic components.

Symptoms of a bad burner knob assembly include:

• Difficulty smoothly adjusting burner flames up and down
• Knobs that do not stay securely in the selected flame setting
• Loose, unstable, or misaligned knobs

This genuine LG replacement part is compatible with specific Sears/Kenmore brand models.

The Burner Knob Assembly is an OEM replacement part specific to LG gas ranges and cooktops. It refers to the assembly that includes the control knob and stem that adjusts burner flame levels on the stovetop.

Causes of a bad burner knob assembly can include wear from frequent use that results in hard-to-turn or unstable knobs. Overheating from pans placed directly on the knob could also warp and damage plastic components.

Symptoms of a bad burner knob assembly include:

• Difficulty smoothly adjusting burner flames up and down
• Knobs that do not stay securely in the selected flame setting
• Loose, unstable, or misaligned knobs

This genuine LG replacement part is compatible with specific Sears/Kenmore brand models.

This burner tube directs gas from the valve to the oven's burner assembly for proper flame distribution and heat during baking and broiling. Replacing a damaged tube restores safe, even combustion and consistent cooking performance. What it does

• Channels gas to the oven burner so the flame lights and stays steady
• Helps maintain even heat for reliable cooking and browning
• Prevents gas leaks caused by cracks, holes or severe corrosion
• Can resolve symptoms like weak or uneven flames, flame blowouts, or visible tube damage

• Turn off gas supply and electrical power before beginning any service.
• Inspect mounting hardware, gaskets and alignment; replace any worn seals to ensure a proper fit.
• Do not force, bend, or dent the tube during installation; handle carefully to avoid leaks.

This switch assembly is the door lock mechanism for select front-load washers. It detects when the door is closed and locks it during operation, allowing the washer to start and run safely without interruptions.

• Monitors door position and signals the control; failure can prevent the cycle from starting or trigger door/lock errors
• Engages the latch to secure the door during wash and spin; a bad lock may stop the cycle mid-wash
• Coordinates door unlock at cycle end; faults can delay or prevent unlocking
• Intermittent operation may cause sporadic starts or pauses

• Disconnect power and turn off water supply before servicing
• Access the lock behind the front panel at the door opening; remove the door boot clamp to reach the mounting screws
• Move wire connectors to the new assembly one at a time to maintain placement
• Reassemble and verify proper locking and unlocking before running a full cycle

This grille assembly replaces a damaged or missing front trim piece to restore your refrigerator's finished look and airflow at the base. Durable plastic construction keeps the lower front panel secure and neat. What it does:

• Covers and protects the refrigerator kick/vent area from dust and debris
• Maintains proper airflow to condenser components (helps reduce rattling from loose trim)
• Restores cosmetic appearance when original grille is cracked, broken, or discolored
• Secures to the cabinet with factory clips or screws to prevent gaps and movement

• Disconnect power to the appliance before beginning work
• Removal and installation typically require removing toe kick or lower access panel and releasing retention clips or fasteners
• Handle plastic trim carefully to avoid breaking tabs; replace any damaged clips

The Grille Assembly is an OEM part for LG gas ranges. This assembly covers the ranges' cooking surface and plays an important safety and functional role.

Symptoms of a bad grille assembly include:

• Warping or bending of grates inhibiting pan placement
• Grates unable to withstand normal cooking loads
• Chips, cracks, or holes reduce safety and performance
• Grates difficult to remove or clean after cooking

Causes of failure can include damage from years of heat exposure, damage from heavy pans, or warping due to cleaning techniques.

Replace yours today with this genuine OEM LG assembly to maintain a sturdy, reliable, and safe cooking surface. This replacement grate is compatible with some Samsung and Kenmore Elite brand ranges. The grille ensures properly centered cookware and protection from spills or flare-ups.

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

The Nozzle is an OEM part for LG gas ranges. It is a critical component that functions to release gas fuel from the supply line in a regulated and controlled manner to achieve the desired burner flame. The Nozzle has precision-engineered orifices and materials resistant to corrosion to provide reliable and safe operation over extended use.

Symptoms of a bad nozzle include:

• Burner flames that appear uneven, yellow, or unstable
• Inability to achieve or maintain desired flame height
• Unpleasant gas smells were detected around the range
• Potential safety hazards if damage severely restricts or leaks fuel

Replacing a faulty nozzle restores the exact fuel-air mixture for clean controlled cooking. This affordable OEM LG part ensures optimal and safe burner performance customers expect from their gas range.

This OEM LG part is also compatible with ranges from Crosley, Jenn-Air, and select Kenmore gas models.

The Nozzle is an OEM part for LG gas ranges. It is a critical component that functions to release gas fuel from the supply line in a regulated and controlled manner to achieve the desired burner flame. The Nozzle has precision-engineered orifices and materials resistant to corrosion to provide reliable and safe operation over extended use.

Symptoms of a bad nozzle include:

• Burner flames that appear uneven, yellow, or unstable
• Inability to achieve or maintain desired flame height
• Unpleasant gas smells were detected around the range
• Potential safety hazards if damage severely restricts or leaks fuel

Replacing a faulty nozzle restores the exact fuel-air mixture for clean controlled cooking. This affordable OEM LG part ensures optimal and safe burner performance customers expect from their gas range.

This OEM LG part is also compatible with ranges from Crosley, Jenn-Air, and select Kenmore gas models.

This nozzle is the burner orifice that meters gas flow to a single burner, helping your range or cooktop produce a correct, stable flame for consistent heating and cooking performance.

• Controls gas flow to its designated burner for proper flame size and shape
• A clogged, worn, or incorrect nozzle can cause weak or oversized flames, yellow tipping, uneven heating, or noisy flames
• Commonly replaced during LP/Natural gas conversions; each burner requires the exact nozzle specified by the service manual
• Useful to check if burner cleaning doesn't restore normal flame behavior

• Disconnect electrical power and shut off the gas supply before servicing
• Match the nozzle to the exact burner position and gas type; verify markings against the original
• Access under the burner/cooktop; use the correct wrench size and avoid overtightening
• After installation, leak-test all fittings with a soap solution and confirm proper flame characteristics per the manual

This replacement burner surface element restores heating on compatible electric cooktops, letting you resume even, controllable cooking. Designed to match the original part's fit and function for straightforward service. What it does:

• Provides the heating element that transfers heat to cookware for stovetop cooking
• Replaces a cracked, non-heating, or unevenly heating surface element
• Helps stop hot spots or intermittent operation caused by a failed element
• Restores normal cooktop temperature control when paired with a working terminal block and controls

• One burner surface element (single replacement part)

• Disconnect power at the breaker before starting any repair to avoid shock
• Remove the cooktop or lift the element from its housing per your model's service instructions; handle gently to avoid bending terminals

This replacement burner cap fits over the cooktop burner head to protect the burner, help shape the flame, and keep spills out of the burner assembly for more consistent cooking performance. What it does:

• Protects the burner head from spills, debris and oxidation
• Helps direct and shape the gas flame for more even heat distribution
• Can resolve symptoms like uneven flame, yellow/orange flame color, or intermittent ignition
• Prevents food and liquid from entering the burner ports, reducing clogs and ignition problems

• One burner cap

• Turn off the cooktop's gas supply and electrical power and allow all parts to cool before working on the appliance
• Remove the old cap, clean the burner head and surrounding area, then set the cap in place seated flat and centered on the burner
• After installation, restore power/gas and verify proper ignition and flame pattern; if flame problems continue, inspect the burner head and igniter
• Use caution—if you smell gas or suspect a leak, stop and

The Cap, burner is an OEM part for LG gas ranges. It serves as a protective cover for the burner component on the cooktop. The cap is designed to fit securely over the burner head, shielding it from debris, liquid spills, or other hazards while still allowing for optimal heat transfer during the cooking process.

Causes of a bad burner cap can include warping, cracking, or discoloration due to high heat exposure over time. Gap openings from loose or ill-fitting caps can lead to decreased burner performance.

Symptoms of a bad burner cap include:

• Flames unable to ignite or burning unevenly
• Hot spots or cool spots on the cooktop surface
• Dripping or spillage onto the burner below
• Off-gassing odor or discoloration from the cooktop surface

This part is also compatible with select Sears/Kenmore models.

The Burner Cap is an OEM component specifically designed for LG gas ranges. This cap sits atop each burner element and functions to safely contain the burner flame during cooking.

The burner cap regulates burner temperature and optimizes heat conduction. It distributes the flame evenly across the bottom of the cookware for rapid, consistent cooking results.

Symptoms of a bad burner cap include:

• Warping, cracks, or holes that allow flame to escape
• Discoloration or material fatigue affecting flame quality
• Loose fit that impacts flame control or introduces safety issues

Causes may include normal wear over time exposed to heat, burns, or bending from heavy pots/pans.

Replacing this OEM LG burner cap will restore your range's heating performance, avoid potential safety hazards, and maintain proper cooking temperatures.
