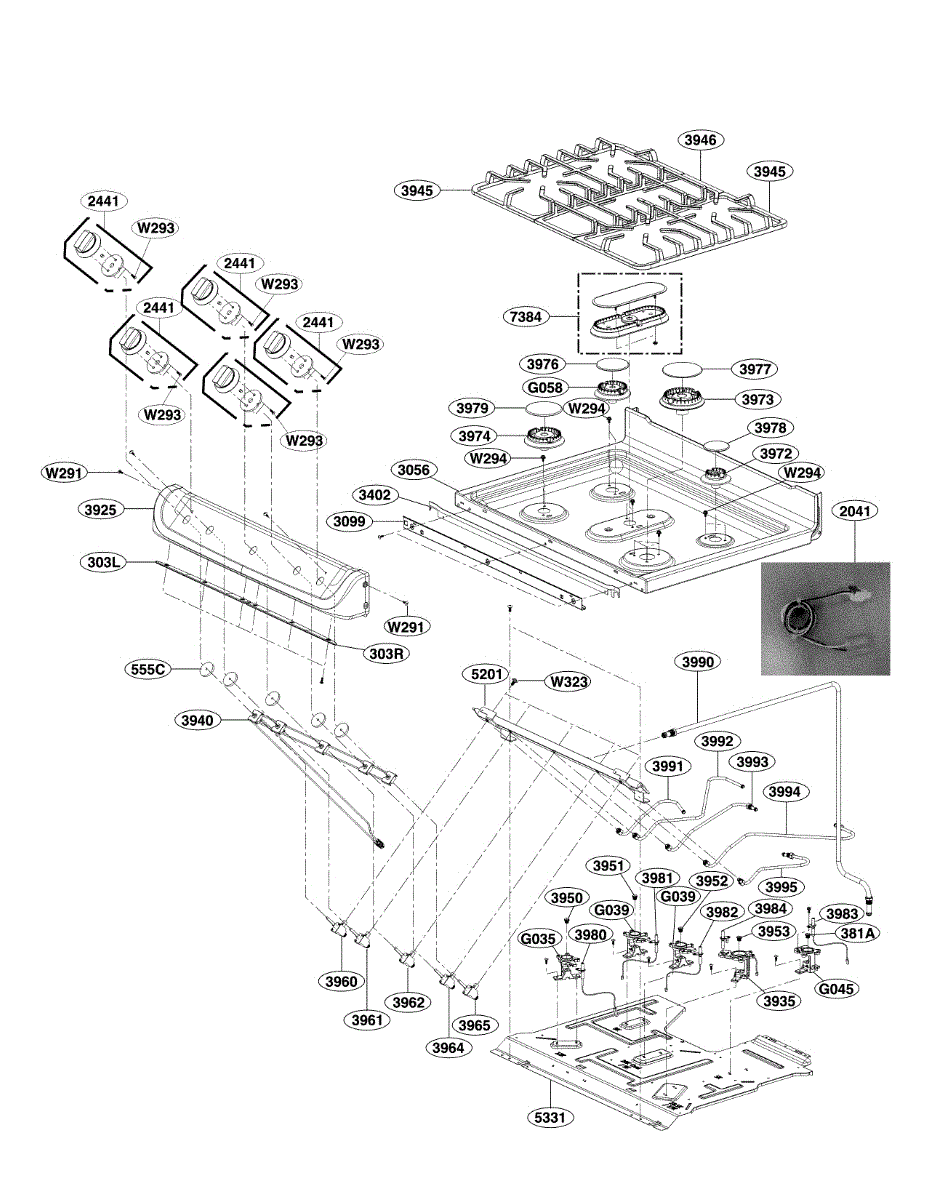

Parts for Lg LDG4315BD/00: Cooktop Parts

This gas surface burner head restores even flame and reliable lighting on your range cooktop. Replacing a worn or clogged burner helps bring back proper ignition, flame pattern, and consistent heat output. What it does:

• Directs gas from the orifice through precisely formed ports to create an even ring of flame
• Works with the spark igniter for quick, consistent ignition
• Helps maintain correct flame size and color for efficient cooking
• Typical symptoms include: burner won't light, delayed ignition, weak/uneven flame, or yellow-tipped flames

• Includes 1 burner head

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift off the old burner head and clean the mating surface
• Align the new burner head over the orifice and ensure proper clearance to the igniter
• Reassemble, restore gas/power, and test burner operation and flame pattern

This customized screw is the exact fastener specified by the manufacturer to secure components in select LG appliances. Replacing a missing or stripped screw restores a tight, rattle-free fit and helps maintain proper alignment over time.

• Secures panels, brackets, and internal assemblies at original mounting points
• Helps reduce vibration and rattling noises from loose hardware
• Replaces missing, rusted, or stripped screws
• Supports stable operation by keeping parts firmly in place

• Disconnect power; shut off water or gas before service
• Match the screw to the exact location using your model's parts diagram
• Start threads by hand; tighten snugly without overtightening to avoid stripping
• Use the correct driver bit for the head style to prevent damage

This replacement screw is a factory-style fastener used to secure components in place and restore proper fit and function. It's a direct-fit hardware piece sized and finished to match the original installation. What it does:

• Secures panels, brackets, or assemblies to prevent rattling or misalignment
• Restores original mounting strength where a stripped or missing screw causes loose parts
• Helps maintain proper panel gaps and component positioning for reliable operation
• Appropriate where the appliance requires the OEM-style screw head and thread form

• Screw

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage plastic parts
• Replace any damaged or corroded mating hardware for best results
• Disconnect power to the appliance and follow manufacturer safety instructions before servicing

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

This is a plate assembly intended for use with gas ranges. It is also called the main top or cooktop assembly. This part is black in color and is made of metal. This part houses the burners.If the plate assembly is dented or damaged in any way, this part is a genuine replacement part. Be sure to disconnect the range from its power source before replacing this part.This part is compatible with gas ranges that are manufactured by the LG brand. It is sold individually. This plate assembly is sourced from the manufacturer itself.

This switch assembly is the door lock mechanism for select front-load washers. It detects when the door is closed and locks it during operation, allowing the washer to start and run safely without interruptions.

• Monitors door position and signals the control; failure can prevent the cycle from starting or trigger door/lock errors
• Engages the latch to secure the door during wash and spin; a bad lock may stop the cycle mid-wash
• Coordinates door unlock at cycle end; faults can delay or prevent unlocking
• Intermittent operation may cause sporadic starts or pauses

• Disconnect power and turn off water supply before servicing
• Access the lock behind the front panel at the door opening; remove the door boot clamp to reach the mounting screws
• Move wire connectors to the new assembly one at a time to maintain placement
• Reassemble and verify proper locking and unlocking before running a full cycle

The Surface burner grate is an OEM component specifically designed for LG cooktops and ranges. This burner grate sits atop the surface burner to support cookware during use.

Causes of a bad surface burner grate can include warping, cracks, or breaks from prolonged high-heat exposure. Surface levels may become uneven due to impact or normal wear over time.

Symptoms of a bad surface burner grate include:

• Cookware that is unstable or wobbles during use
• Food or liquid spills into the burner below
• Difficulty cleaning built up residues from an uneven surface
• Visible damage or cracks in burner grate material

This OEM LG part is also compatible with select Sears/Kenmore ranges and cooktops.

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

The Nozzle is an OEM part for LG gas ranges. It is a critical component that functions to release gas fuel from the supply line in a regulated and controlled manner to achieve the desired burner flame. The Nozzle has precision-engineered orifices and materials resistant to corrosion to provide reliable and safe operation over extended use.

Symptoms of a bad nozzle include:

• Burner flames that appear uneven, yellow, or unstable
• Inability to achieve or maintain desired flame height
• Unpleasant gas smells were detected around the range
• Potential safety hazards if damage severely restricts or leaks fuel

Replacing a faulty nozzle restores the exact fuel-air mixture for clean controlled cooking. This affordable OEM LG part ensures optimal and safe burner performance customers expect from their gas range.

This OEM LG part is also compatible with ranges from Crosley, Jenn-Air, and select Kenmore gas models.

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

The Nozzle is an OEM part for LG gas ranges. It is a critical component that functions to release gas fuel from the supply line in a regulated and controlled manner to achieve the desired burner flame. The Nozzle has precision-engineered orifices and materials resistant to corrosion to provide reliable and safe operation over extended use.

Symptoms of a bad nozzle include:

• Burner flames that appear uneven, yellow, or unstable
• Inability to achieve or maintain desired flame height
• Unpleasant gas smells were detected around the range
• Potential safety hazards if damage severely restricts or leaks fuel

Replacing a faulty nozzle restores the exact fuel-air mixture for clean controlled cooking. This affordable OEM LG part ensures optimal and safe burner performance customers expect from their gas range.

This OEM LG part is also compatible with ranges from Crosley, Jenn-Air, and select Kenmore gas models.

This gas valve assembly controls and delivers gas to the burner when the appliance calls for heat. Replacing a failing valve restores reliable ignition, steady flame, and consistent heating performance while maintaining proper safety shutoff when not heating.

• Regulates gas flow to the burner(s) under the appliance's control and safety circuits
• Provides positive gas shutoff when no heat is requested
• Helps resolve no heat/flame, igniter glows or sparks but no ignition, burner lights then goes out, or intermittent heating
• Before replacement, also inspect the igniter, flame sensor, wiring, and regulator settings

• Disconnect electrical power and turn off the gas supply before servicing
• Note connection orientation; transfer any required fittings or brackets from the original valve
• Use an approved gas-rated thread sealant where applicable and leak-test all joints with a soap solution after installation
• Verify proper ignition and stable flame per the product's service or test procedure

Restore reliable flame performance with this replacement burner. It mixes and distributes gas to produce the cooking flame on your appliance, helping it light consistently and deliver even, controllable heat during everyday use. What it does:

• Directs gas through burner ports to form a controlled cooking flame
• Replaces burners that are cracked, warped, corroded, or clogged
• Can help resolve weak/uneven or yellow flames and delayed ignition
• Restores stable simmer and more even heat distribution

• Includes 1 burner

• Disconnect power and shut off the gas supply; allow the appliance to cool completely
• Access the burner per your model's procedure; remove any grates/caps and retaining hardware if applicable
• Position the new burner over the orifice and igniter; ensure it sits flat and properly aligned
• Reassemble and restore gas/power; test for proper ignition and flame pattern

This replacement burner restores consistent flame on your gas range or cooktop by replacing a worn, warped, or clogged original. It helps deliver even heat and dependable ignition so your cooking performance returns to normal. What it does:

• Channels gas through ports to produce a stable, even cooking flame
• Works with the existing igniter in your appliance to light the burner
• Helps resolve weak, uneven, or yellow flames caused by damaged or blocked ports
• Restores burners that won't light when the igniter sparks but the head is clogged or damaged

• 1 burner

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool completely
• Remove the burner cap, lift off the old burner, and clean the mating surface
• Align the new burner with the igniter and locator features; seat fully for proper ignition
• Many models use different burners by position—match the part to the location shown in your parts diagram

This burner is the cooktop surface flame assembly that produces heat for cooking. It replaces a damaged or worn surface burner to restore proper flame and even heating on the cooktop. What it does

• Provides the primary flame source for a gas cooktop burner
• Restores consistent flame distribution when the original burner is warped, cracked, or clogged
• Can resolve symptoms such as weak or uneven flame, burner that won't sustain a flame, or visible damage to the burner head
• Works with the igniter/safety valve assembly to light and maintain the burner

• One surface burner

• Turn off gas supply and power to the appliance before servicing
• Use basic hand tools; handle the burner carefully to avoid bending or damaging the ports
• Clean burner ports of debris before installation to ensure proper flame pattern

This burner cap is the top cover for a gas cooktop burner that protects the burner head and helps promote an even flame for consistent cooking. It restores proper flame pattern and appearance when the cap is damaged or missing. What it does:

• Covers and shields the burner head from spills and debris
• Helps shape and stabilize the burner flame for even heating
• Prevents food and liquids from clogging the burner ports
• Symptoms it can fix: uneven or sputtering flame, visible damage or missing cap, burner not seating properly

• Ensure cooktop is completely cool and gas is turned off before handling
• Lift old cap straight off the burner; set the replacement cap down evenly on the burner head
• No special tools required for most installs; verify correct seating so the cap sits flat
• Replace if cracked, warped, or severely corroded to ensure proper flame performance

This replacement pipe/tubing routes fluids inside the appliance, restoring proper channeling of water or condensate to prevent leaks and ensure normal operation. Use when the original tubing is cracked, clogged, or damaged. What it does:

• Provides a sealed pathway for water or condensate to move between components
• Prevents leaks by replacing cracked or brittle tubing
• Restores proper flow when original pipe is clogged, kinked, or collapsed
• Helps eliminate odors or water pooling caused by damaged tubing

• One replacement pipe/tubing as shown

• Turn off power and water supply to the appliance before beginning service
• Inspect connection ends and replace any damaged clamps or fittings
• Use appropriate tools and avoid over-tightening clamps to prevent pinching the pipe

This is a replacement pipe used in the appliance's water/ice system to route water between components and maintain proper water flow. Replacing a damaged pipe restores reliable water delivery and helps prevent leaks. What it does:

• Carries water between the inlet, dispenser, and/or ice maker components
• Stops or reduces leaks when a cracked or corroded pipe is replaced
• Helps restore normal water flow if an internal blockage or break caused reduced dispensing
• Maintains proper routing to prevent kinks or stress on fittings

• Turn off the appliance power and shut off the household water supply before starting.
• Remove only the damaged pipe and install the matching replacement; use the same routing and fittings.
• Tighten fittings to manufacturer torque guidance and check all connections for leaks after restoring water.

This burner assembly replaces a damaged or worn surface burner on compatible gas ranges, restoring reliable ignition and even heat distribution for cookware. Designed to fit into the cooktop and connect to the existing valve and igniter. What it does:

• Provides the main gas outlet and burner ports for an even cooking flame
• Replaces cracked, warped, or clogged burner components that cause uneven heating
• Restores proper ignition when the burner head is the source of lighting problems
• Helps stop sputtering or inconsistent flame patterns caused by a damaged burner

• Turn off the gas supply and unplug the appliance before starting work
• Remove the cooktop or burner cap per your model's service instructions to access the assembly
• Inspect and, if needed, replace associated gaskets, igniter, or valve components per OEM guidance
