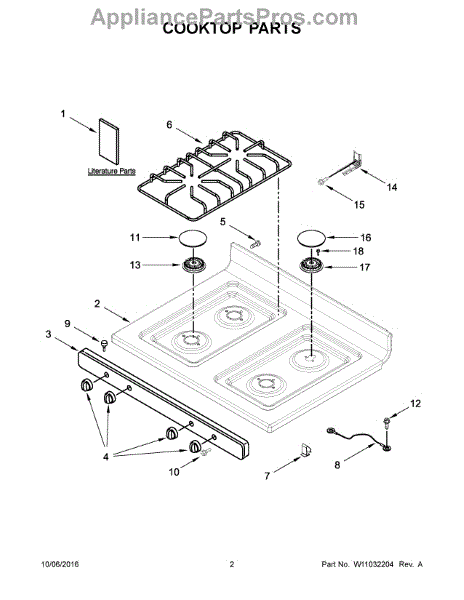

Parts for Maytag AGR5330BAS1: 02 - Cooktop Parts

This is the cooktop top assembly that gives your range a finished surface and supports the burners, knobs, and other controls for safe cooking operation. It restores a secure, stable surface and helps prevent heat or spill damage to internal components. What it does:

• Provides the finished top surface that holds burners and grates in place.
• Protects internal components from spills and heat exposure.
• Restores proper alignment for controls and burner openings.
• Helps eliminate rattling or instability caused by a damaged top.

• One cooktop top assembly

• Disconnect power and gas supply before starting any work.
• Follow OEM service instructions and use proper tools to avoid damaging trim or control components.
• Keep all fasteners and brackets organized for reassembly; some seals or gaskets may need replacement.

This is a control knob for a range/cooktop. It lets you turn the burner valve shaft to adjust flame or heat settings. A worn or cracked knob can slip, sit crooked, or fail to turn the control smoothly.

• Replaces a damaged or stripped knob so settings engage properly
• Common symptoms: knob cracks, loosens, wobbles, or won't turn the valve shaft
• Restores clear pointer alignment and tactile click/feel during adjustment

• Disconnect power and allow all surfaces to cool before servicing
• Pull the old knob straight off the valve shaft; align the new knob's D-shape/flat with the shaft and press firmly
• Do not force—verify the knob matches the shaft style and location
• Test each control for smooth movement and correct alignment after installation

This control knob fits the surface burner valve and lets you turn the burner on and adjust flame level. A fresh knob restores clear settings and smooth control when the old one is cracked, stripped, or missing.

• Controls the surface burner's valve for on/off and flame adjustment
• Replaces worn, cracked, or hard-to-read knobs
• Helps when the knob is loose, won't turn the stem, or the indicator is faded
• Direct, slide-on design for the correct valve stem type

• Disconnect power and shut off gas before servicing
• Pull the old knob straight off the valve stem; align and press the new knob on
• Do not force—verify stem shape and orientation for a proper fit
• Test burner operation and ensure the knob turns smoothly and points to the correct markings

This genuine ground screw secures appliance grounding connections to the chassis, helping maintain electrical safety and reliable grounding. It's a direct-fit fastener used where a secure ground point is required. What it does:

• Provides a secure chassis grounding point for appliance electrical safety
• Secures ground wires or grounding straps to sheet metal or grounding posts
• Helps prevent loose ground connections that can cause intermittent faults or safety risks
• Matches OEM thread and length for correct fit and electrical contact

• Use appropriate tools; avoid stripping the head or over-tightening which can damage threads or the grounding surface
• Ensure the mating surfaces are clean and free of paint or corrosion for good electrical contact
• Disconnect power to the appliance before servicing electrical grounding connections

This is a replacement black burner grate for gas ranges. It provides a stable cooking surface so pots and pans sit securely over the burner, restoring safe, even cookware support. What it does:

• Supports pots and pans above the burner for stable cooking
• Restores proper pot-to-flame positioning for consistent heating
• Replaces warped, cracked, chipped or missing grates that cause cookware wobble
• Protects the cooktop surface from direct contact with hot cookware

• Designed for drop-in replacement; no special tools usually required
• Allow the cooktop and grate to cool completely before handling
• Inspect burners and ports for debris before reinstalling the grate
• If you smell gas or detect a problem with burner operation, stop use and have the appliance serviced.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

This bumper is a small cushioning stop used at contact points on the appliance. It absorbs impact and prevents metal-to-metal contact to reduce noise and protect surfaces when doors, drawers, lids, or racks close.

• Cushions closing to soften impact and protect finishes
• Serves as a stop to maintain proper spacing at the contact point
• Helps reduce slamming, squeaks, and rattles
• Replace if cracked, flattened, missing, or if new clunking noises occur when closing

• Disconnect power (and shut off water/gas if applicable) before servicing
• Note the bumper's original location and orientation
• Remove the old bumper and clean the mounting area or hole
• Press the new bumper fully into place and verify a secure fit and proper clearance

Screw for side trim.

Color: Black. Measures about 3 inches in diameter. For grey use WP98017461.

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This surface burner head replaces a worn or clogged top burner on gas ranges and cooktops, restoring a steady, even flame and reliable ignition so your burners heat consistently for everyday cooking.

• Mixes gas and air to produce the cooking flame
• Works with the igniter to light the burner
• Directs flame evenly around cookware
• Common symptoms: weak or uneven flame, yellow tipping, delayed ignition or no light, soot, or popping noises

• Disconnect electrical power and shut off the gas; allow the cooktop to cool completely
• Remove grate and burner cap; take out the mounting screw(s) and lift off the old burner head
• Align the new head with the igniter and orifice holder; reinstall screw(s) and the cap
• Restore gas and power; test ignition and verify a clean, even flame

• Many models use different burners by position and output; match the exact part number for the correct location
• Clear clogged ports with a soft brush or compressed air—do not enlarge ports with pins or drill bits

This mounting bracket secures and supports appliance components, providing a stable attachment point to keep parts aligned and reduce movement during operation. It's a simple, durable metal bracket used where a fixed support is required. What it does:

• Provides a secure attachment point for panels, assemblies, or internal components
• Keeps parts aligned to prevent vibration, noise, or rubbing
• Restores proper fit and function when a bracket is bent, cracked, or missing
• Compatible with OEM mounting locations that accept this bracket style

• One mounting bracket

• Turn off power and disconnect the appliance before beginning any repair
• Use appropriate fasteners and torque to match the original hardware; replace any damaged screws
• Handle sharp edges carefully and wear gloves to protect your hands

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Surface Burner Cap is an OEM replacement part designed for Whirlpool gas ranges. This component covers and protects the burner head, helping to evenly distribute the flame for consistent cooking heat. It also shields the burner from debris and prevents clogs that could impede performance.

Over time, burner caps can suffer from regular wear and tear, high heat exposure, or damage from accidental impact.

Color: Black

Symptoms of a faulty surface burner cap include:

• Uneven or inconsistent flame pattern
• Difficulty igniting the burner
• Visible cracks, warping, or discoloration
• Poor fitting, leading to debris buildup around the burner head

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Burner and Electrode is an OEM part for Whirlpool cooktops and ranges. This component is essential for igniting the gas burner, ensuring efficient and reliable cooking performance. The burner provides a stable flame for cooking, while the electrode generates the spark needed to ignite the gas. Includes the igniter. The compatible screw is part number WP3368921 / AP6008125

You should replace the surface burner and electrode if they become faulty. Causes of a bad surface burner and electrode can include regular wear and tear, food residue buildup, or damage from high heat. A malfunctioning burner or electrode can lead to ignition issues and inefficient cooking.

Symptoms of a bad surface burner and electrode include:

• The burner not igniting or taking multiple attempts to light
• Weak or inconsistent flames
• Clicking sound without ignition when trying to light the burner
• Uneven cooking or hotspots on cookware

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it
