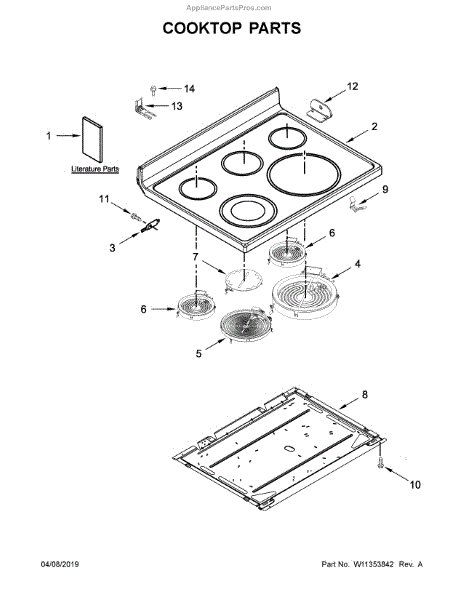

Parts for Maytag YMER8800FZ2: Cooktop Parts

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

This surface heating element replaces a broken or worn top burner to restore electric range cooking performance. It provides a direct-replacement heating coil for compatible Whirlpool-style cooktops and matches OEM fit and function. What it does:

• Heats cookware on the cooktop surface so pots and pans reach cooking temperature
• Replaces a burner that won't heat, heats intermittently, or shows visible damage
• Restores even heating when the original element has burned out or failed
• Works with the existing terminal connections and locking mechanism for a direct swap

• One surface heating element

• Disconnect power to the range at the breaker before servicing to avoid shock
• Remove the cooktop or drip pan as needed to access element terminals
• Disconnect the element from its terminal block and replace with the new element, ensuring secure terminal connections

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This surface heating element restores dependable heat to an electric range or cooktop's top burner. Replacing a failed element helps the burner heat evenly and respond correctly to temperature settings for everyday cooking.

• Supplies controlled heat to the selected surface burner during cooking
• Common symptoms: no heat, intermittent heating, only part of the element glows, or visible damage such as hot spots or breaks
• Often tests open for continuity when failed
• Inspect the element receptacle/terminal block and wiring for heat damage during replacement

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Handle the element carefully; avoid bending terminals or touching heating surfaces with bare hands
• Transfer any brackets/insulators from the original element if present, and route wiring exactly as original
• Ensure a secure fit and connections before restoring power and testing

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This factory fastener secures appliance panels, brackets, or internal components. Replacing a missing, rusted, or stripped screw restores a tight fit, reduces vibration/noise, and helps keep parts properly aligned for reliable operation.

• Fastens components to the appliance cabinet or frame
• Replaces missing, corroded, or damaged fasteners
• Helps correct loose, rattling, or misaligned panels and trim
• Supports stable, rattle-free performance when originals are worn or stripped

• Disconnect power; shut off gas or water before servicing
• Match to the original location; start threads by hand to avoid cross-threading
• Use the correct driver that fits the screw head to prevent stripping
• Snug firmly but do not overtighten; repair damaged threads if needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This wire harness routes power and signals between an appliance's controls and components to restore reliable electrical connections. Replacing a damaged harness helps eliminate intermittent or failed electrical paths and unsafe wiring. What it does:

• Carries power and control signals between the control board and components.
• Restores proper electrical connections when wires or terminals are burned, frayed, or broken.
• Commonly used to address intermittent operation, failure to start, or components not responding.
• Helps prevent shorts or arcing caused by damaged insulation or loose terminals.

• Disconnect power before starting any repair.
• Compare connectors and wire routing to the original; replace only if identical.
• Disconnect and reconnect connectors by hand; avoid pulling on wires. Use proper tools when needed.
• Follow OEM wiring diagrams and secure routing/clamps to prevent chafing or heat exposure.
