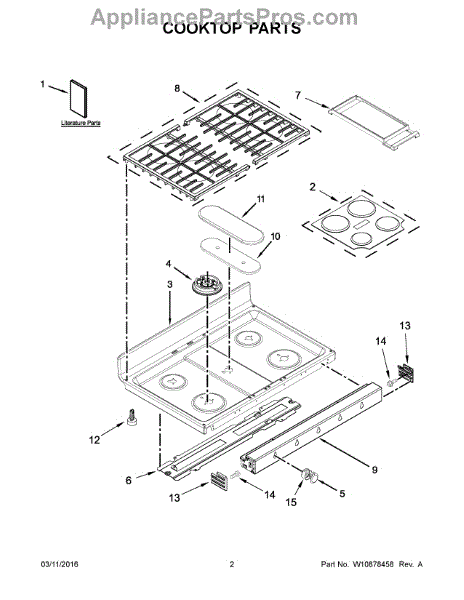

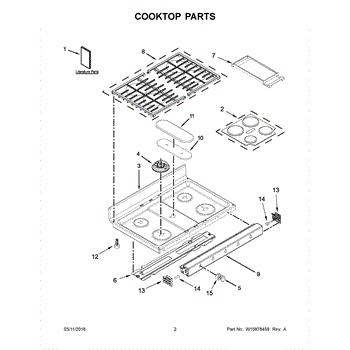

Parts for Whirlpool KFDD500ESS02: 02 - Cooktop Parts

Kit contains 4 burner caps

Color: Stainless

This burner head base is the metal support that sits beneath a cooktop's surface burner, providing a stable mounting point and directing flame for even heating. It replaces damaged or corroded bases to restore safe burner operation. What it does:

• Supports the surface burner cap and burner tube to keep the burner properly aligned
• Directs gas flow from the burner tube to the burner ports for consistent flame pattern
• Helps prevent burner wobble, poor ignition, and uneven heating when functioning correctly
• Fits as the lower portion of the surface burner assembly and works with the burner cap and orifice

• Turn off the appliance and disconnect power and gas supply before service
• Remove burner cap and grate to access the burner assembly; handle components gently to avoid damaging the cap or igniter
• Verify correct alignment of the burner tube and base before reassembly to ensure proper ignition

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

The Knob is an OEM replacement part for Whirlpool ranges. It provides the interface for selecting burner heat settings directly on the cooktop surface.

Causes of a bad knob include cracking, peeling paint, or other wear from repeated use over an oven's lifetime. Internal mechanisms can also fail, preventing proper rotation.

Symptoms of a faulty knob are:

• Difficulty turning or clicking fully into low/medium/high positions
• Loose, wobbly, or disconnected feel during adjustment
• Faded or missing number/temperature labels

Compatible with additional brands including Kenmore, KitchenAid, and Roper gas range, it restores a cooktop's full functionality and customized heating performance.

This replacement griddle sits over your range or cooktop burners to provide a flat, removable cooking surface. Use it to restore a level cooking area when the original is worn, damaged, or missing.

• Creates a flat cooking surface above the burner(s) for items like pancakes and sandwiches
• Helps distribute heat from the burner across the plate for more even contact
• Replace if cracked, warped, chipped, or heavily worn
• Common signs include rocking or poor fit, visible damage, or a degraded cooking surface

• Turn off all burners and allow the cooktop and griddle to cool completely before handling
• Position on the designated grate or locator tabs per your model's orientation
• Follow care and cleaning guidance in your owner's manual

This cooktop grate kit replaces damaged or missing cast-iron grates on compatible gas ranges, restoring stable support for pots and pans and improving safe, even cooking. Fits OEM mounting points for a direct swap. What it does:

• Replaces worn, chipped, or broken cast-iron grates to restore stable cookware support
• Prevents cookware wobble that can cause spills or uneven heating
• Protects the cooktop surface from direct flame contact and wear
• Restores correct clearance and alignment over burners for safer operation

• Disconnect gas supply and/or power to the appliance before beginning work
• Lift old grates straight up; align new grates with burner caps and seating points
• Grates are typically heavy cast iron—use care to avoid dropping and protect surfaces
• Recheck grate alignment and burner cap position

The burner base is the metal burner head that supports the burner cap and directs the cooktop flame. Replacing a damaged burner base helps restore steady ignition and more even heat for everyday cooking. What it does:

• Provides the mounting surface and gas-port pattern for a surface burner and accepts the burner cap.
• Directs the flame for consistent heat across cookware.
• Common symptoms of a failing burner base: uneven or weak flame, burner won't light, visible corrosion or physical damage.
• Can cause repeated ignition attempts or poor heating when cracked, bent, or clogged.

• Turn off electrical power and the gas supply before servicing the range.
• Remove burner grates and caps to access the base; depending on model the base may lift out or be secured with fasteners.
• Inspect the igniter and surrounding components while replacing the base; reassemble and test the burner for proper ignition and flame pattern.

Color: Black

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Note: This is a kit of 5 bezels.

The Power Cord is an OEM part for Whirlpool ranges. It transmits electrical power from the home's outlet to the range, allowing it to function properly. As the power conduit, the cord is essential for powering burners, oven functions, and electronic controls.

Symptoms of a bad power cord include:

• Range not receiving power or not powering on
• Loose, frayed, or damaged appearance of the cord
• Tripped circuit breakers related to the range circuit
• Shock or electrical hazards near the range outlet

Causes of a bad power cord can be normal wear and tear over time, accidental cuts or punctures, bending fatigue from improper storage, or damage from heat if placed too close to the range top.

This OEM replacement cord from Whirlpool ensures safe, reliable power to your range. It is compatible with select models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and Admiral.

Orifice spud secures the burner orifice to the gas valve/manifold and directs fuel to the burner for proper flame performance. Replaces a damaged or corroded spud to help restore correct gas flow at the burner. What it does:

• Holds the burner orifice in place and channels gas from the valve to the burner.
• Helps maintain consistent flame size for even heating and cooking.
• Commonly used when a burner has weak, uneven, or intermittent flame performance.
• Replace if the spud is cracked, corroded, damaged, or leaking.

• Turn off the appliance's gas supply and disconnect power before beginning any repairs.
• Remove burner components per the service manual and install the spud in the same orientation as the original.
• Hand-start threads, then snug with the appropriate wrench—do not overtighten.
• After installation, check fittings for leaks with an approved leak-detection method; if you smell gas or suspect a leak, stop.
