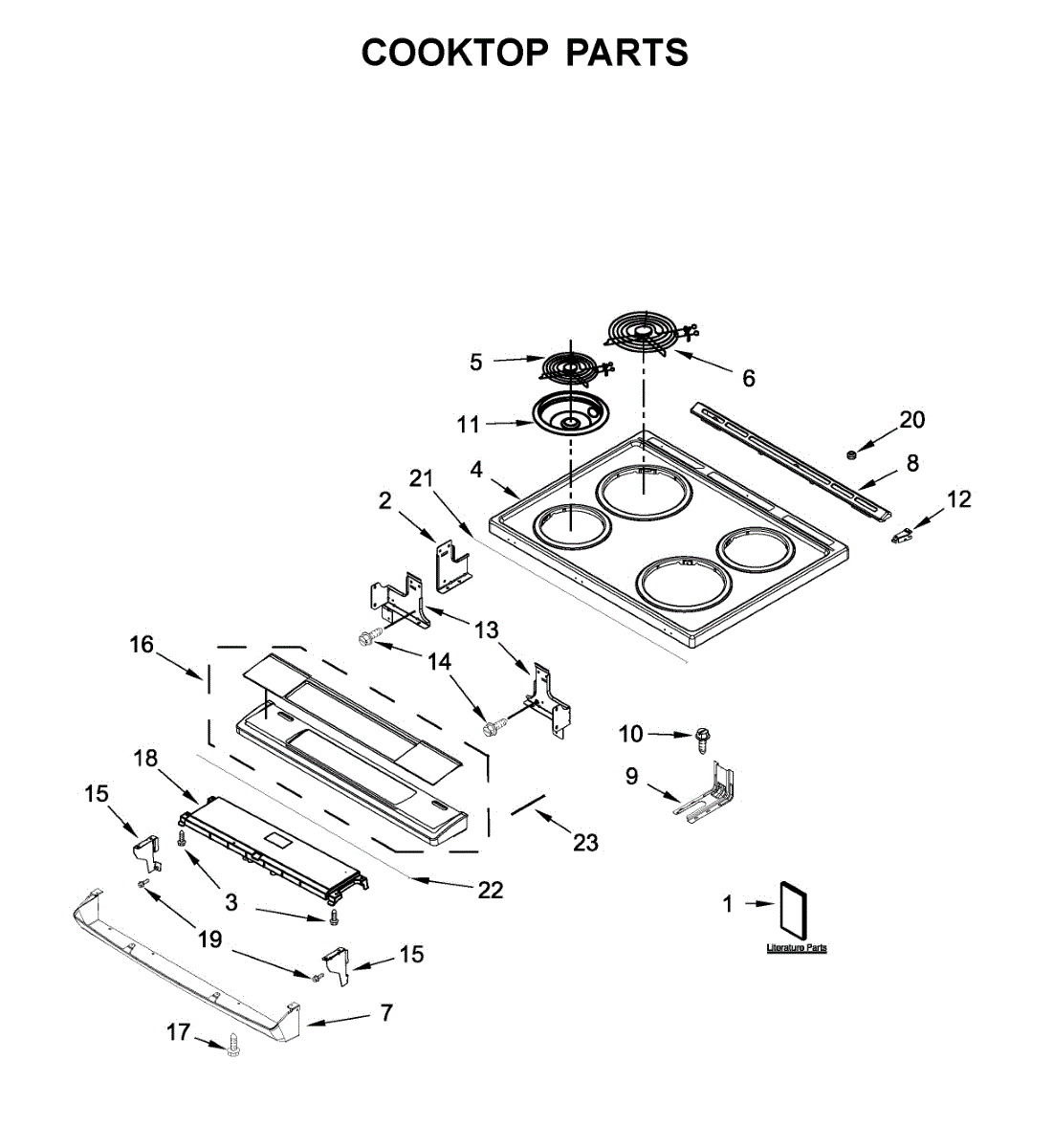

Parts for Whirlpool WEC310S0FB2: Cooktop Parts

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This surface heating element replaces a damaged top burner so your range can heat cookware properly. It reconnects the cooktop's electric heating circuit to restore normal cooking performance and reliable heat. What it does:

• Heats cookware on the cooktop's top burner for boiling, frying and simmering
• Replaces cracked, burned-through or non-heating surface element units
• Commonly used when a burner won't heat, heats intermittently, or shows visible damage
• Matches the OEM element design and mounts at the cooktop surface using existing terminals

• Disconnect power to the range at the breaker before inspecting or replacing the element
• Allow the cooktop and element to cool fully; handle terminals by the insulated ends
• Remove and note connector positions before disconnecting wires to ensure correct reassembly

The Surface Element is an OEM component specifically designed for Whirlpool ranges and cooktops. It provides the heating source for cookware on the stove surface.

Causes of a bad element include deterioration of insulation material over time, carbonization or damage from pans slammed onto the element, or contact with moisture.

Symptoms of a bad element include:

• Inability to heat cookware sufficiently
• Uneven or incomplete heating of pans placed above
• Burn marks or discoloration visible on the element
• Crackling or popping noises heard from below pans

This part is also compatible with some Kenmore, Frigidaire, and select GE range models. Proper cooking performance and safety are maintained with an OEM surface element replacement when needed.

Color: White

The black Control Console is an OEM part for Whirlpool gas ranges. Located at the front of the control panel area, it incorporates touch controls and LED displays for thoroughly customized cooking.

Symptoms of a faulty control console include:

• Unresponsive buttons that do not select temperature settings
• Inoperable cooktop or oven displays and indicators
• Foreign substances obstructing touch sensitivity
• Physical cracks compromising the protective sealing

Causes often involve buildup interfering with circuit boards or residue infiltration degrading electrical paths over time. Impact accidents can fracture components as well.

Compatible models also include those by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore.

This trim vent restores the finished look and airflow at the front base of your refrigerator. It replaces a damaged or missing grille to help maintain proper ventilation and a clean appliance appearance. What it does:

• Covers the front base opening and directs airflow into the refrigerator's vent area
• Helps keep debris and large particles out of the ventilation channel
• Restores a finished, factory appearance to the appliance front
• Common symptom: cracked, broken, or missing grille that exposes the vent area

• Remove power to the appliance before starting any service if panels near electrical components must be removed
• Typically installs with clips or screws—retain fasteners and follow OEM access steps
• Handle part carefully to avoid scratching paint or bending mounting tabs
• Replace damaged hardware to ensure secure fit

The Vent Trim is an OEM part for Whirlpool ranges. It enhances the appearance of your kitchen while providing a finished look to the range vent area. It covers the gaps and edges around the range vent, creating a clean design.

A bad vent trim can occur due to wear and tear, accidental damage, or improper installation. If you notice symptoms such as loose or missing trim, gaps around the vent area, or an uneven and unfinished look, it may be time to replace the vent trim.

Symptoms of a bad vent trim include:

• Loose or missing trim
• Gaps around the range vent area
• Uneven and unfinished appearance

Repair your range by replacing the worn-out or damaged vent trim with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This end cap panel is a replacement trim piece that restores the finished edge and protects the appliance cabinet where panels meet. It helps maintain a clean look and keeps edges covered after repair or panel replacement. What it does

• Covers and protects the outer edge of a cabinet or control panel section to prevent exposed edges and wear
• Restores a flush, finished appearance after removing or replacing surrounding panels
• Helps keep dirt and moisture from reaching internal edges and seams
• Matches OEM fit and attachment points for reliable alignment

• One end cap panel

• Designed to snap or screw into existing mounting points — handle gently to avoid cracking plastic
• Turn off and unplug the appliance before removing nearby panels
• Inspect adjacent clips or fasteners and replace if damaged to ensure secure fit
• No special tools typically required; a screwdriver and trim tool may be helpful

This control panel is the appliance's front user interface that houses the touchpad and display, restoring full control and visible status readout for the appliance. It replaces a cracked, unresponsive, or damaged console to regain normal operation. What it does:

• Provides the push-button/touch controls and display for selecting cycles and settings
• Transmits commands to the appliance's control board so selected functions run correctly
• Restores readable status indicators when the original panel is faded or broken
• Helps resolve symptoms like unresponsive buttons, missing display indicators, or physical damage to the console

• One control panel assembly

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove front cover or trim per service diagram to access the panel; handle connectors gently
• Inspect ribbon cables and connectors for damage; replace any damaged connectors separately

This replacement control panel restores the user interface on select Whirlpool ovens and ranges so you can access bake, broil, timer, and oven settings. Replaces a cracked, faded, or unresponsive front control surface. What it does:

• Houses the oven's buttons/touchpad and display so you can enter temperature, mode, and timer selections.
• Restores responsive controls when buttons or touchpad stop responding or labels become unreadable.
• Helps address cosmetic damage such as cracks, scratches, or worn graphics on the console.
• Works with the existing control electronics when panel-to-board connections are intact.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Some consoles require removal of trim or the oven door for access; handle glass and sharp edges carefully.
• Transfer any electronic modules, overlays, or fasteners from the old panel only if verified to be the same.
• If controls remain unresponsive after panel replacement, check the control board, ribbon cable, and wiring for faults.

The Cntrl-Elec is an OEM part for Whirlpool ranges. It contains an electronic control board that operates and monitors critical cooking functions.

Causes of a bad control board can include exposure to heat, moisture, or grease over time. Accidental damage during cleaning is also possible.

Symptoms of a bad control board include:

• Failure to ignite or maintain burner flames
• Inoperable temperature or timer display
• Inability to select cooking modes or adjust dials/buttons
• Unexpected shut-offs or "no power" situations

This control board replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement bumper cushions and protects the appliance door or panel, helping stop metal-on-metal contact, reduce noise, and prevent chipping or wear. Simple, low-profile part that restores smooth, quiet door operation. What it does:

• Cushions door or panel to prevent hard impacts and protect finishes
• Reduces rattling and vibration-related noise during operation
• Helps the door close more softly and sit flush with the cabinet
• Prevents premature wear where edges contact the cabinet

• Disconnect power to the appliance before starting any repair.
• Inspect the damaged bumper and surrounding area, then remove the old bumper by hand or with a non-marring tool.
• Press the new bumper into the original mounting location until fully seated; no special tools normally required.
• If the bumper mounts to a clip or bracket that's damaged, replace the bracket.

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

This oven door gasket seals the oven cavity to keep heat and moisture in for even cooking and energy efficiency. A worn or damaged gasket can cause heat loss, longer cook times, or visible smoke/odor. What it does:

• Creates a tight seal between the oven door and cavity to retain heat and moisture
• Helps maintain consistent bake and roast temperatures for even cooking
• Reduces heat escaping that can trigger longer cook cycles or cycling issues
• Limits smoke and food odors from leaking into the kitchen

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per the manufacturer instructions if needed to access the gasket channel
• Inspect the gasket channel for debris and clean before installing the new gasket for a proper seal
• The gasket is fully seated along the door perimeter and check for pinched or twisted sections

The Harness Wire is an OEM component specifically designed for Whirlpool and KitchenAid ranges. Located internally, this wire routes electrical connections between range components like the control panel, temperature dials, and ignitor modules. A dependable harness wire facilitates smooth appliance operations.

Symptoms of a faulty harness wire include:

- Intermittent or unreliable ignitions of one or more burners
- Range that turns off or components that stop working unexpectedly
- Error codes displayed or electrical buzzing/humming noises
- Burners or bake/broil elements that will not activate fully

Causes often relate to wire insulation breaks or loose connections due to repeated heating/cooling cycles over time. This OEM Whirlpool replacement ensures safety and performance. Replace yours today.

This OEM part is also compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
