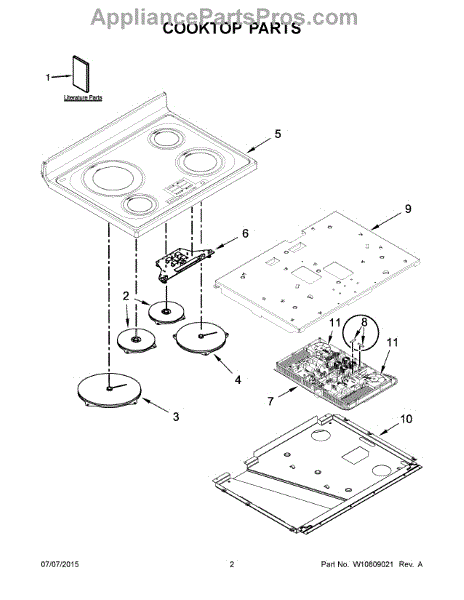

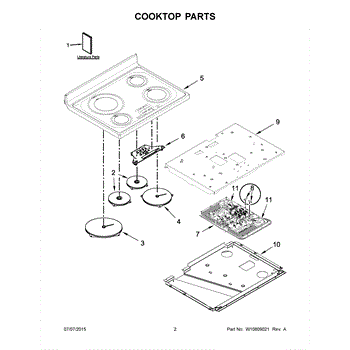

Parts for Whirlpool WGI925C0BS02: 02 - Cooktop Parts

This single hotplate is the surface heating element used on compatible electric ranges and cooktops to provide a reliable cooking surface. It replaces a damaged or non-working element so burners heat properly again. What it does:

• Heats cookware on the cooktop for boiling, frying and simmering
• Replaces elements that fail to power on or produce heat
• Restores even heating when an old element heats unevenly or flickers
• Works with the existing burner receptacle and wiring on compatible ranges

• Disconnect power to the appliance at the breaker before servicing
• Allow the cooktop to cool completely and use gloves to avoid cuts
• Handle electrical terminals carefully; verify tight connections during reassembly

This single radiant hotplate is a direct-replacement surface heating element for compatible electric ranges, restoring dependable cooktop heat for everyday cooking. It fits into the range cooktop to provide a stable cooking surface for pots and pans. What it does:

• Heats cookware on the cooktop surface for boiling, frying, and simmering.
• Replaces a burnt-out or cracked hotplate that no longer reaches temperature.
• Can resolve symptoms such as a burner that won't heat, uneven cooking, or visible element damage.
• Intended for ranges that use a sealed or exposed hotplate-style heating element.

• Disconnect power to the appliance at the breaker before starting any repair.
• Allow the cooktop to cool completely and handle parts carefully to avoid cuts.
• Basic hand tools are typically required; follow your model's service instructions for safe removal and installation.

This ceramic glass cooktop is the smooth cooking surface that sits over a range's burners, providing a durable, easy-to-clean work area and protecting internal components from spills and debris. It restores the flat surface needed for proper cookware contact. What it does:

• Replaces a damaged or worn cooktop surface to restore a flat, stable cooking area
• Protects internal elements and wiring from spills and food debris
• Helps maintain proper heat transfer from burners to cookware
• Commonly replaced for visible cracks, chips, deep scratches, or severe discoloration

• Disconnect power to the appliance before starting work to avoid shock or damage
• Handle with care to avoid chipping; use proper fasteners and gaskets per OEM instructions

The User Control and Display Board for the Whirlpool range is an OEM component designed to operate all control functions and digital displays. Housed in a protective casing, this board contains the sensitive electronic parts that allow the appliance’s control panel to interact with homeowners.

Symptoms of a bad control board may include failure of electronic components through time, water damage from leaks or condensation, or surges disrupting normal operation.

Causes of issues include:

• Non-responsive touch controls
• Glitchy or blank temperature displays
• Inability to select desired functions or settings
• Repeatedly shutting off between uses

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges. Replacing a faulty board restores full functionality to the range’s easy-to-use control panel.

This electronic control board manages and coordinates appliance functions, restoring responsive controls and cycle operation when the original control fails. A direct replacement for the failed module to return normal electronic control to the unit. What it does:

• Replaces a faulty electronic control to restore command and timing between user controls and components
• Controls cycle selection, start/stop commands and power distribution to sensors and motors
• Common symptom resolution: unresponsive control panel, cycles won't start or complete, or intermittent operation
• Works only when the board and associated wiring/harness are the source of the problem

• One electronic control board (module) as pictured/packaged by the manufacturer

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Handle the board by the edges; avoid touching components or connector pins to prevent ESD damage

This thermal fuse is a one-time safety cutoff that stops heat when temperatures rise above safe limits, protecting the appliance from overheating. Replace a blown fuse to restore proper thermal protection and heating control. What it does:

• Opens the circuit to the heating element when overheating is detected to prevent unsafe temperatures.
• Common symptom: dryer runs but produces little or no heat.
• Can cause dryers to stop heating even though the motor and controls seem to work.
• Helps prevent thermal damage or fire by cutting power to the heater when needed.

• Disconnect power to the appliance before accessing the heating assembly.
• Replace with the exact OEM part; match terminals and mounting location.

Comes with three connectors per package.

Size: 10-24X5/16-NI
