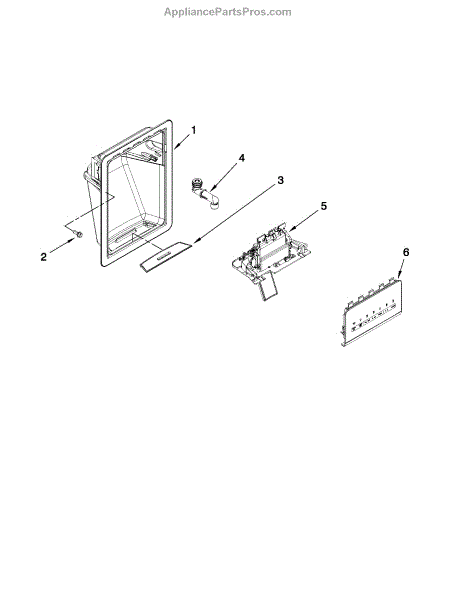

Parts for Kenmore 106.51113210 (10651113210, 106 51113210): Dispenser Front Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This black dispenser grille fits at the base of the refrigerator's ice/water dispenser. It provides a clean, finished surface over the dispenser well and helps catch minor drips when the original grille is cracked, stained, loose, or missing.

• Sits over the dispenser well to catch minor drips and splashes
• Protects and finishes the dispenser recess for a tidy appearance
• Helps keep moisture away from surrounding door surfaces
• Typical failure signs: cracked, warped, discolored, broken tabs, or won't stay seated

• Disconnect power and shut off the water supply before servicing.
• Lift or slide the old grille out of the dispenser recess.
• Clean the area; align the new grille with the locating tabs.
• Press down until fully seated and flush with the surrounding trim.

Single water tube/fitting used in refrigerator water and ice systems to route supply water. Replacing a damaged tube restores reliable water flow and helps stop leaks and puddling under the appliance. What it does:

• Directs water from the household supply to the dispenser or ice maker.
• Common repair for visible leaks, puddles under the refrigerator, or intermittent dispenser flow.
• Restores consistent water flow so the dispenser and ice maker can fill properly.
• Replaces cracked, brittle or kinked factory tubing at the connection point.

• Shut off power and turn off the water supply before beginning work.
• Have a towel or small container ready to catch any remaining water in the line.
• Inspect connection seals and replace worn O-rings or gaskets as needed.
