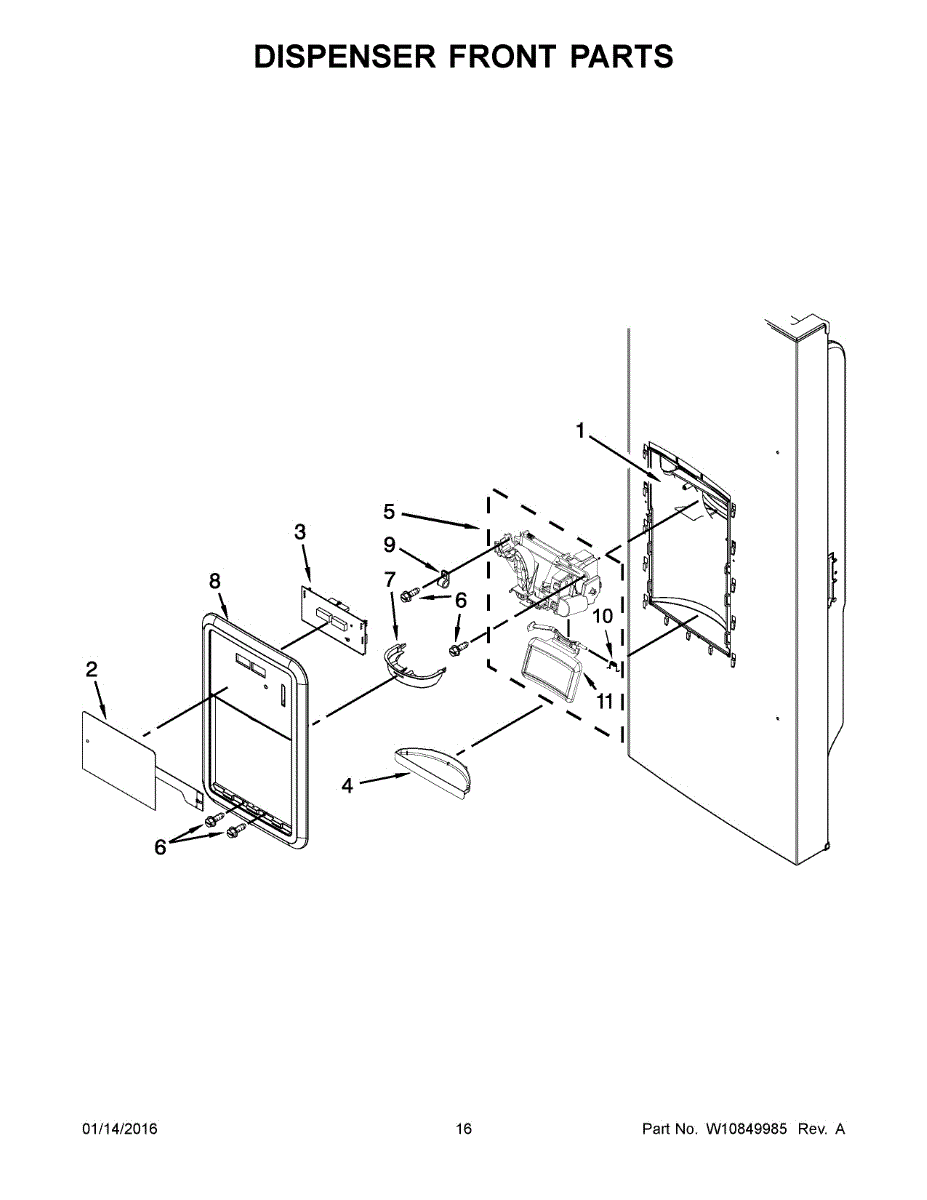

Parts for Whirlpool GI0FSAXVY012: 09 - Dispenser Front Parts

Replacement drip tray that collects and channels defrost and condensation water away from the cabinet to help prevent puddles and water damage. Sits under the freezer/drain area to guide meltwater to the evaporator or drain. What it does:

• Collects defrost and condensation water to prevent leaks and pooling beneath the appliance.
• Directs meltwater toward the evaporator/drain so it can evaporate safely.
• Helps reduce odors and ice buildup caused by standing water.
• Common signs you may need this part: water pooling under or behind the appliance, visible cracks or warped pan, or ice forming where water should drain.

• One drip tray

• Disconnect power before accessing the tray and remove any stored items from nearby compartments.
• Tray is typically accessed from the rear or behind the lower grille/panel—remove the appropriate access panel first.
• Inspect the drain channel for clogs or debris before installing the new tray and seat the pan flat to ensure proper drainage.
• Replace the tray if you see cracks, warping, or severe corrosion; use only manufacturer-recommended parts.

This chute extension yoke links the dispenser actuator/solenoid to the ice chute door/extension so the flap opens and closes reliably, directing ice through the chute and helping the door seal to reduce frost and warm-air intrusion.

• Couples the dispenser actuator/solenoid to the ice chute door/extension for proper movement
• Helps the chute door seal to limit frost and condensation around the dispenser
• Replace if cracked, worn, or missing
• Common symptoms: ice not dispensing or intermittent dispensing, chute door not opening/closing, frost/moisture at the dispenser, rattling/loose dispenser mechanism

• Disconnect power to the refrigerator and shut off water to the dispenser before servicing
• Remove dispenser trim/escutcheon to access the chute area; support wiring and controls
• Note the orientation of any springs/clips and transfer them to the new yoke
• Reassemble, restore power, and test for smooth door operation and proper sealing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This target ring is a small trim piece that restores the original fit and appearance around a control button or panel opening. Replacing a damaged ring helps ensure clean button engagement and a finished look. What it does:

• Serves as the trim/target around a control button or panel opening
• Keeps the button aligned for consistent engagement and operation
• Restores finished appearance when the original ring is cracked, warped, or missing
• Prevents debris from collecting around the control area

• One replacement target ring

• Disconnect the appliance from power before attempting replacement
• Usually installs by snapping into place or securing with retained fasteners — handle gently to avoid breaking tabs
• Confirm proper button movement and secure fit before returning appliance to service

The Ice Chute Door Spring is an OEM part for Whirlpool refrigerators. This part returns the ice chute door to its closed position after ice has been dispensed, ensuring the door remains sealed to maintain proper temperature and efficiency.

Causes of a bad ice chute door spring can include wear and tear over time, corrosion from exposure to moisture, or damage due to repeated use or mishandling.

Symptoms of a bad ice chute door spring include:

• The ice chute door not closing properly
• Ice or frost buildup around the ice chute
• Warm air entering the freezer compartment
• Difficulty in dispensing ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Pad is an OEM part for Whirlpool refrigerators. This part activates the dispensing mechanism for water and ice when pressed.

Causes of a bad pad can include repeated use leading to wear and tear, accumulation of dirt or debris, or damage from accidental impacts.

Symptoms of a pad include:

• No water or ice dispensing when the actuator is pressed
• The actuator feeling loose or unresponsive
• Intermittent or inconsistent dispensing
• Strange noises during activation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
