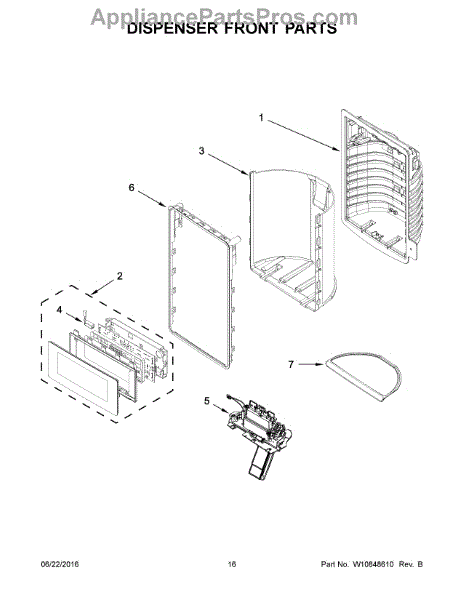

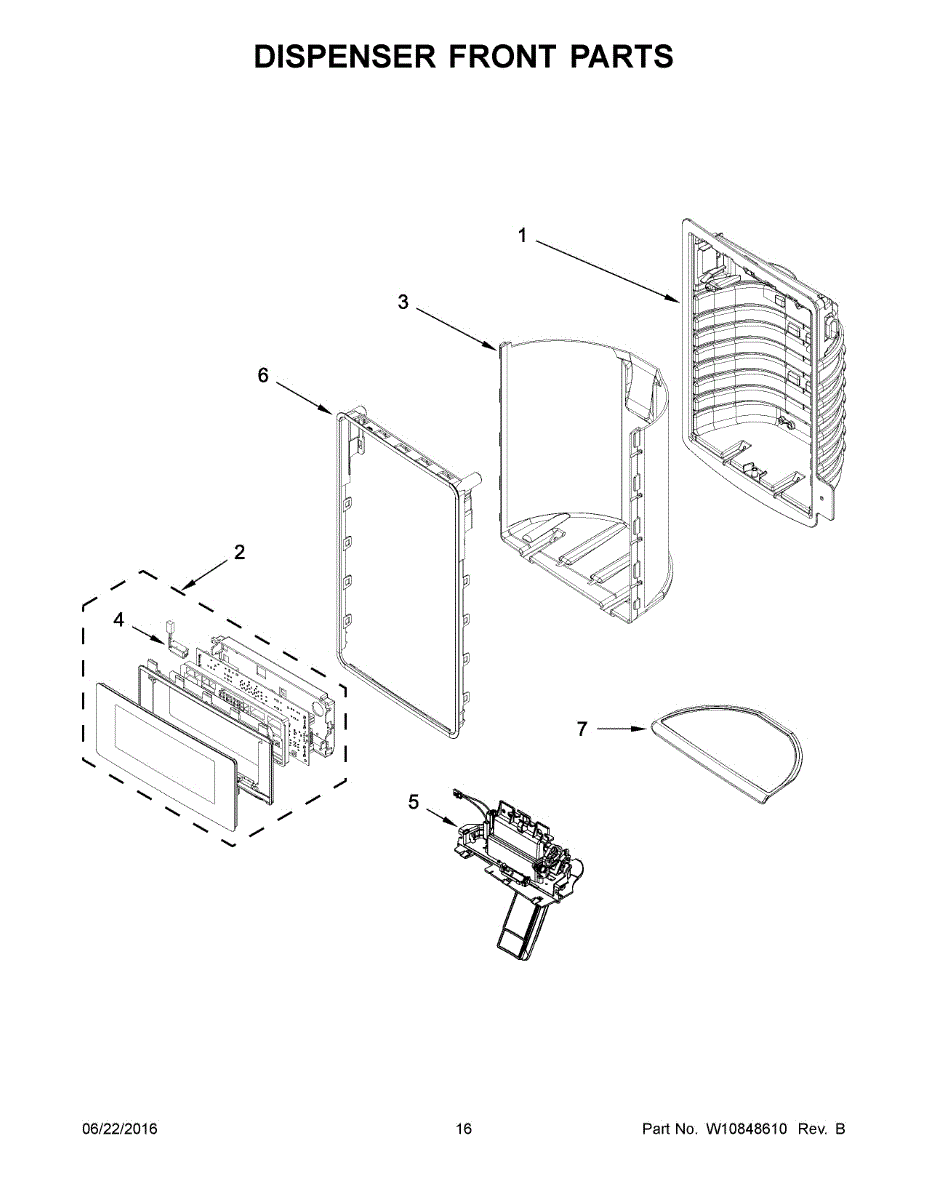

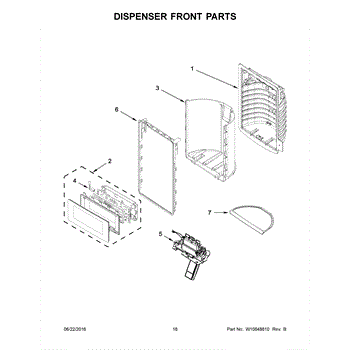

Parts for Whirlpool WRF757SDEE01: 09 - Dispenser Front Parts

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This separator directs ice from the freezer ice maker into the dispenser and helps control airflow to reduce melting. It replaces a cracked, warped, or missing ice door to restore reliable dispensing and ice containment. What it does:

• Guides ice through the dispenser chute so cubes drop cleanly into the cup or bin
• Helps seal the ice chute to limit warm air entering the ice compartment
• Reduces ice jams and sticking by maintaining proper chute alignment
• Restores proper operation if the original door is broken, warped, or not closing

• One separator

• Basic hand tools required; locate and access the ice maker/dispenser area before starting
• Handle plastic parts carefully to avoid cracking; align door on its hinge before securing
• Disconnect power to the appliance before beginning work to avoid injury

This ice door replaces the flip/cover on the refrigerator ice dispenser to help control ice flow and keep the ice chute sealed. Restores proper opening and closing so ice dispenses cleanly and helps reduce warm air entering the compartment. What it does:

• Covers and seals the ice chute to help keep ice inside the bin and reduce melting or clumping
• Opens and closes with the dispenser mechanism to allow ice to pass through while minimizing drafts
• Prevents debris from entering the ice chute and helps maintain dispenser hygiene
• Helps restore normal dispensing if the original door is cracked, broken, or sticking

• Disconnect power to the appliance before starting any repair
• Remove ice bin and any obstructing parts per your model's service instructions to access the door
• Typically secures with clips or a small screw; handle plastic tabs carefully to avoid breakage

This control trim ring replaces the decorative bezel around a console control or knob, restoring a finished appearance and protecting the control opening from dirt and wear. Fits where the control meets the console for a clean look. What it does:

• Covers the gap around a control or knob to improve appearance and keep debris out
• Protects the control area from spills and grime that can affect operation
• Restores a secure, finished edge if the original trim is cracked, warped, or missing
• Matches OEM fit and mounting style for straightforward replacement

• Remove power to the appliance before beginning any work.
• Installation generally requires removing the knob and snapping or fastening the trim into place; follow your model's service instructions.
• Handle trim carefully to avoid scratching finish; use trim-safe tools if prying is needed.
• If mounting clips or screws are damaged or missing, replace them before completing installation.
