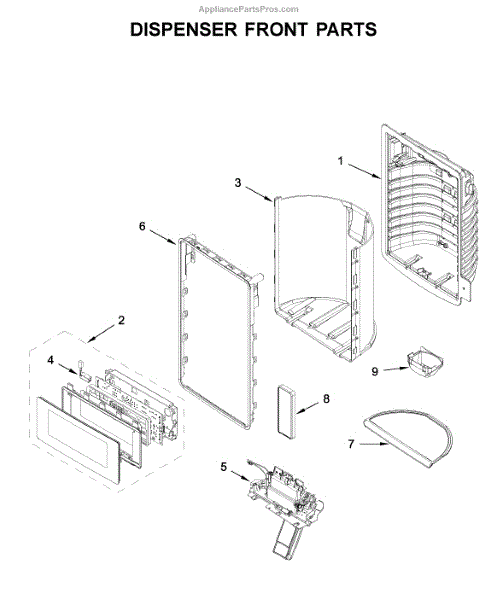

Parts for Whirlpool WRF757SDHV02: Dispenser Front Parts

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This door ice separator assembly guides ice from the dispenser chute to the dispenser tray, helping prevent jams and misfeeds. It replaces a cracked, warped, or broken separator to restore smooth ice dispensing. What it does:

• Directs ice through the dispenser chute so cubes drop cleanly into cups or glasses
• Helps prevent ice clumping and jams at the door dispenser
• Restores proper alignment of the dispenser path after damage or wear
• Useful when ice falls unevenly or gets stuck in the dispenser area

• Basic removal of the dispenser inner door panel may be required; keep track of fasteners and clips.
• Disconnect power to the appliance before starting work to avoid electrical or mechanical hazards.
• Inspect surrounding chute and dispenser components for damage and clean any ice buildup before reassembly.
• Use gentle force when snapping the new separator into place to avoid breaking tabs—do not force misaligned parts.

This control trim ring replaces the decorative bezel around a console control or knob, restoring a finished appearance and protecting the control opening from dirt and wear. Fits where the control meets the console for a clean look. What it does:

• Covers the gap around a control or knob to improve appearance and keep debris out
• Protects the control area from spills and grime that can affect operation
• Restores a secure, finished edge if the original trim is cracked, warped, or missing
• Matches OEM fit and mounting style for straightforward replacement

• Remove power to the appliance before beginning any work.
• Installation generally requires removing the knob and snapping or fastening the trim into place; follow your model's service instructions.
• Handle trim carefully to avoid scratching finish; use trim-safe tools if prying is needed.
• If mounting clips or screws are damaged or missing, replace them before completing installation.

Drip tray that catches defrost and condensation water to prevent leaks and floor damage. Replaces a cracked or missing tray to restore proper water collection and reduce standing water beneath the appliance. What it does:

• Collects melted frost and condensation from the cooling system so water is contained and managed.
• Channels water toward the appliance's evaporation/drain area so it can evaporate safely.
• Helps prevent puddles and potential floor damage caused by a damaged or missing tray.
• Replace when tray is cracked, warped, leaking, or shows visible damage.

• Disconnect power to the appliance before performing any service.
• Access is typically through the lower toe grille or a rear access panel.
• Inspect mounting tabs and surrounding supports for damage and ensure the new tray seats properly.
• Wear gloves and take care around sharp sheet-metal edges during removal/install.

This small pad fits under a cooktop/range burner grate to cushion and stabilize it, helping prevent wobble and surface scratches. Replacing worn or missing pads keeps the grate level and protects the cooktop finish. What it does:

• Supports and levels the burner grate at its contact points
• Reduces rattling and movement during cooking
• Helps prevent metal-on-metal scraping and scratches on the cooktop
• Replace if pads are missing, flattened, brittle, or the grate rocks

• 1 pad

• Allow the appliance and grates to cool completely; disconnect power/gas if servicing near burners
• Remove the grate; clean old pad residue and thoroughly dry the contact area
• Press the new pad firmly into place; replace all pads on a grate for even height
• Avoid harsh solvents that can damage enamel or stainless finishes

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing
