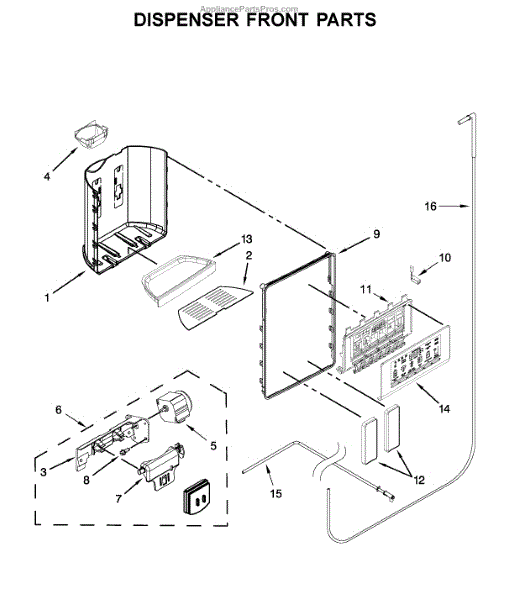

Parts for Whirlpool WRS586FIEM04: Dispenser Front Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This replacement cooktop grate with an integrated drip lip supports cookware on gas burners and helps contain spills for easier cleanup. It restores a stable cooking surface and keeps the burner area neater. What it does:

• Supports pots and pans over a single gas burner
• Channels minor spills away from the burner with the built-in drip area
• Helps prevent direct contact between spills and the burner cap
• Restores even, stable cookware placement for safer cooking

• One grate with attached drip

• Make sure the range is turned off and completely cool before handling
• Lift old grate straight up; set the new grate into place so it seats on the cooktop supports
• Wear gloves to protect hands from sharp edges and residual grease

This grille fits over the drip tray to protect internal components and help catch spills, keeping the cooktop area cleaner and easier to maintain. It restores proper fit and appearance when the original grille is damaged. What it does:

• Covers and protects the drip tray from food and liquid spills
• Helps contain messes so spills are easier to wipe away
• Prevents debris from contacting components beneath the cooktop
• Addresses symptoms like visible damage, warped or missing grille, and recurring food buildup

• One grille/drip tray cover

• Disconnect power to the appliance before attempting any service
• Remove surrounding components to avoid damage
• Handle carefully to avoid bending or scratching the grille
• If hardware is not visible, verify if existing clips or screws are reused; only parts explicitly listed ship

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Screw for control panel.

This dispenser trim is the exterior bezel that surrounds a refrigerator's ice/water dispenser, restoring a finished appearance and protecting internal dispenser components from daily wear. It replaces cracked, chipped, or faded trim pieces. What it does:

• Provides a finished, protective bezel around the dispenser opening
• Helps keep the dispenser area aligned and prevents gaps that trap dirt or moisture
• Commonly replaced when trim is cracked, broken, loose, or cosmetically damaged
• Restores proper fit and appearance after impact or wear

• Disconnect power to the appliance before starting work; shut off the water supply if the dispenser is connected to plumbing
• Installation typically requires removing the inner dispenser panel or door trim; keep track of all fasteners
• Handle edges carefully — trim pieces or adjacent metal can be sharp

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

Color: White

Color: Midnight Grey

This drip tray collects and channels defrost and condensation water to the refrigerator's evaporation area, helping prevent puddles and water damage under the appliance. Durable plastic design fits beneath the freezer/refrigerator cabinet. What it does:

• Catches defrost and condensation runoff so water doesn't pool on the floor
• Directs water toward the evaporator or drain to allow controlled evaporation
• Reduces risk of leaks and related floor damage when installed correctly
• Helps maintain proper drainage and prevents water from contacting components

• One drip tray

• Disconnect power to the appliance before accessing the tray or removing panels
• Remove the toe kick or rear access panel as needed to reach and replace the tray
• Ensure the tray seats fully and drain channels align with the refrigerator's drain path
• If you see persistent leaking, check the drain tube and evaporator area for clogs or damage

This dual water tube routes water along two separate paths inside the refrigerator, supplying components such as the dispenser and ice maker. Replacing a cracked, kinked, or clogged tube restores steady flow and helps prevent leaks. What it does:

• Carries pressurized water to two internal destinations
• Helps supply the dispenser and/or ice maker
• Replaces tubing that is cracked, brittle, kinked, or leaking
• Typical symptoms: leaks behind/under the fridge, slow/no dispenser flow, ice maker not filling or making small/hollow cubes

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water when disconnecting lines
• Note original routing and connection points; transfer any guides/clips as needed
• Fully seat tubing in quick-connect fittings, tug-test for engagement, restore water, and check for leaks

This replacement water dispenser valve tube routes water from the dispenser valve to the dispenser outlet so your appliance can deliver water and ice correctly. It restores a proper, leak-free flow path for the dispenser. What it does:

• Connects the dispenser valve to the dispenser outlet, directing water flow for dispensing and ice-making functions
• Replaces cracked, pinched, or deteriorated tubing that can cause leaks or weak/blocked water flow
• Helps stop visible leaks under the dispenser area and restore normal dispensing performance
• Compatible with factory valve connections and dispenser fittings when the OEM tube is specified

• One replacement water dispenser valve tube

• Disconnect power and shut off the water supply before starting work
• Inspect matching fittings and clamps; reuse only if undamaged — replace clamps if corroded
• Route the tube following factory routing to avoid kinks and ensure secure connections
