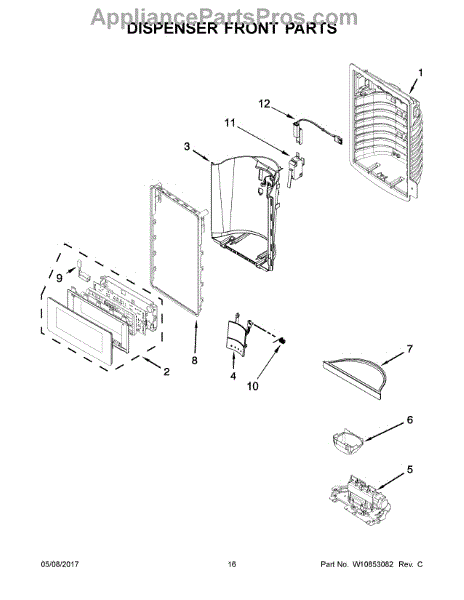

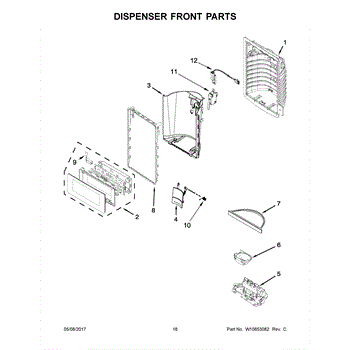

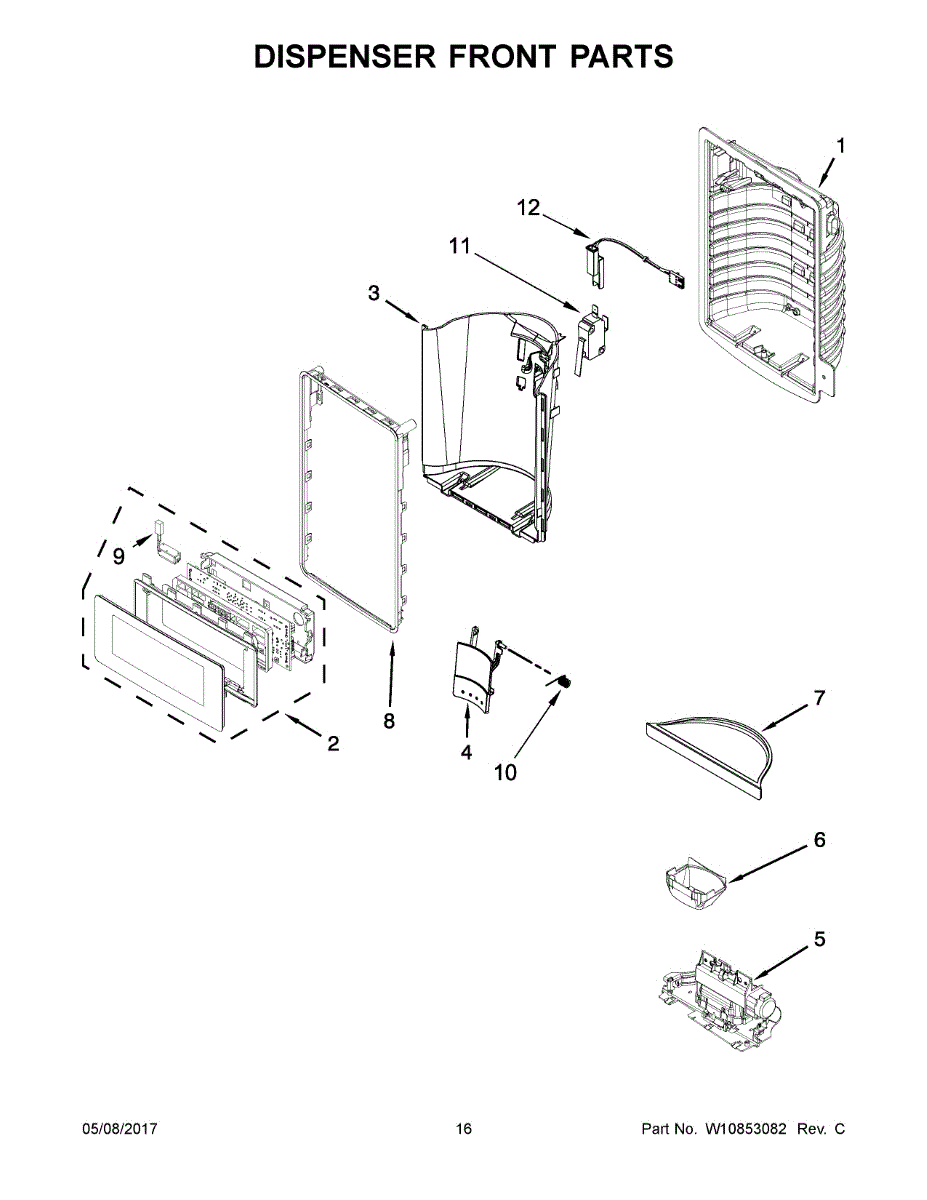

Parts for Whirlpool WRV986FDEM01: 09 - Dispenser Front Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This ice door is the replacement chute cover that opens and closes inside the refrigerator dispenser to release ice while helping block warm air and debris. Restores proper ice dispensing and helps keep ice colder and cleaner. What it does

• Opens to allow ice to drop into the dispenser and closes to help block warm air and contaminants.
• Helps prevent ice clumping and melting caused by warm air entering the dispenser.
• Stops small objects and pests from entering the ice chute when the dispenser is not in use.
• Restores proper dispenser operation when the original door is cracked, warped, or stuck.

• One ice door (dispenser chute) as shown.

• Disconnect power to the refrigerator before beginning any service to avoid injury.
• Remove the dispenser housing or inner door panel to access the chute; handle plastic parts carefully to avoid cracking.
• Inspect surrounding mounts and actuator components; replace any damaged clips or springs to ensure correct door movement.

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This drip tray collects and channels condensation and defrost water away from refrigerator components to prevent pooling. It helps keep the fresh-food and freezer compartments dry and reduces the risk of water damage or odors. What it does

• Catches condensation and defrost runoff under the evaporator/ice area to prevent water from pooling inside the cabinet.
• Redirects water into the evaporator drain or designated drain channel for normal disposal.
• Commonly replaces trays that are cracked, warped, or full of debris causing leaks or slow drainage.
• Can reduce musty or moldy odors when damaged or clogged.

• One drip tray

• Disconnect power before accessing evaporator or removing interior panels.
• Remove any shelves, drawers, or ice components that block access; handle plastic panels carefully to avoid breakage.
• Clean the drain path and surrounding area before installing the new tray to ensure proper drainage.

This trim piece is a decorative bezel that restores the appliance's finished look and covers the cabinet or panel edge. It helps keep the front appearance neat and protects the underlying edge from wear. What it does

• Provides a finished cosmetic edge and restores appearance after damage or removal
• Covers gaps between panels or doors to improve visual alignment
• Protects the exposed edge from chips, scratches, and everyday wear
• Can reduce light or draft leakage around the panel area when properly seated

• One trim piece as shown

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Remove any surrounding panels or fasteners as needed to access the trim mounting points
• Align the trim carefully and secure with existing screws or clips; do not flex or force the part
• If metal edges are sharp, wear gloves and handle with care to avoid cuts

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

A replacement tension/return spring that restores proper tension and return action to the appliance component it supports. Helps stop sagging, reduce noise, and return moving parts to their intended position for reliable operation. What it does

• Provides tension and controlled return for a door, latch, lever or similar moving part.
• Restores correct alignment and helps parts stay closed or in their resting position.
• Reduces rattling, popping or grinding noises caused by a weakened or broken spring.
• Common symptom: parts that sag, fail to stay closed, or don't return smoothly after use.

• Disconnect power (and gas/water if applicable) before starting any repair.
• Use proper hand protection and avoid overstretching the spring during installation.
• Inspect surrounding components (clips, brackets, hinge points) and replace any worn pieces.
• Follow OEM instructions for safe removal and correct routing/attachment.

The Switch is an OEM replacement part for Whirlpool refrigerators. It is designed to control the water dispensing function of your refrigerator, providing a convenient and easy way to access filtered water. It is responsible for activating the water flow when pressed, allowing you to dispense water into your glass or container.

A bad refrigerator water dispenser switch can occur due to wear and tear, physical damage, or electrical malfunction. If you notice symptoms such as the switch not responding when pressed, inconsistent water flow, or a complete lack of water dispensing, it may be time to replace the switch.

Symptoms of a bad refrigerator water dispenser switch include:

• Switch not responding when pressed
• Inconsistent water flow
• Lack of water dispensing

Restore your refrigerator's water dispenser by replacing the faulty or damaged water dispenser switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
