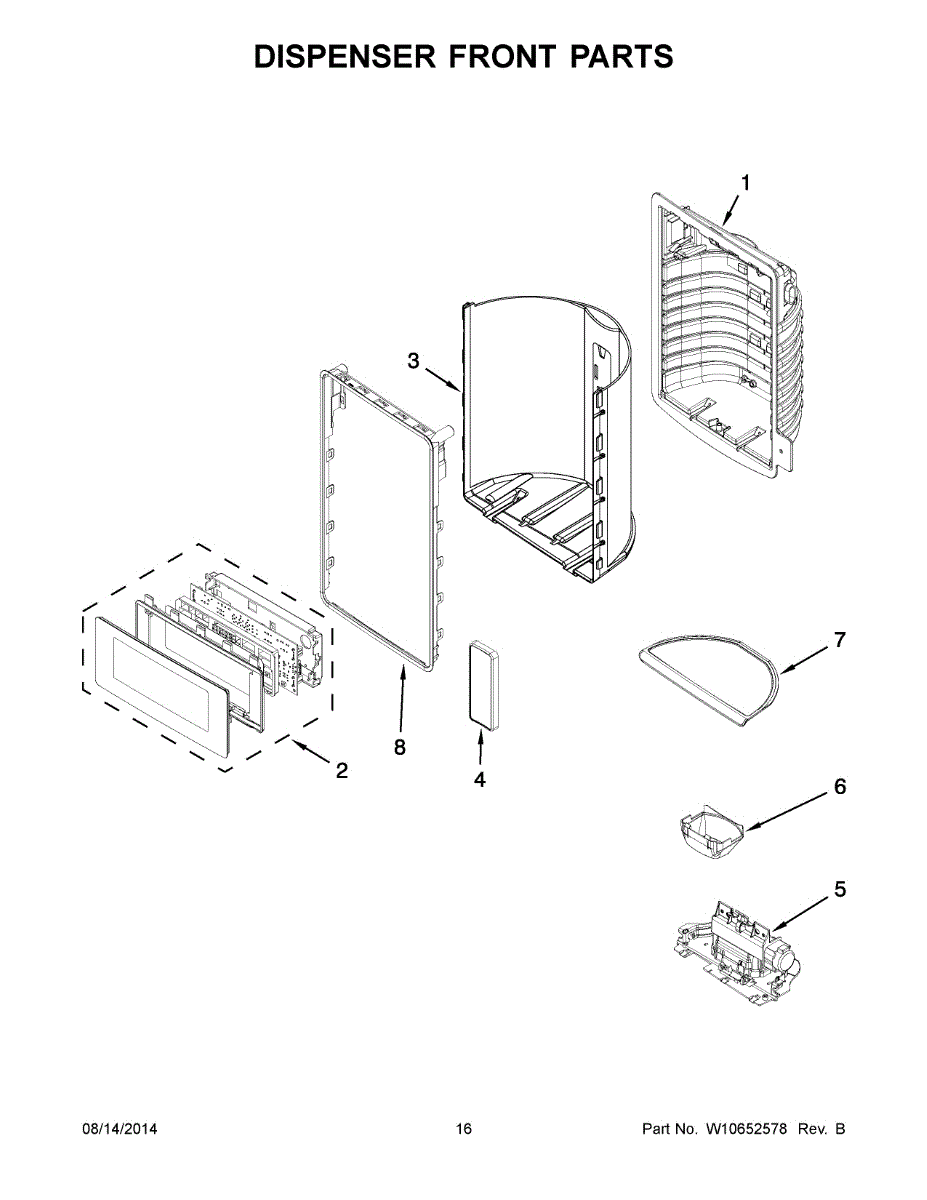

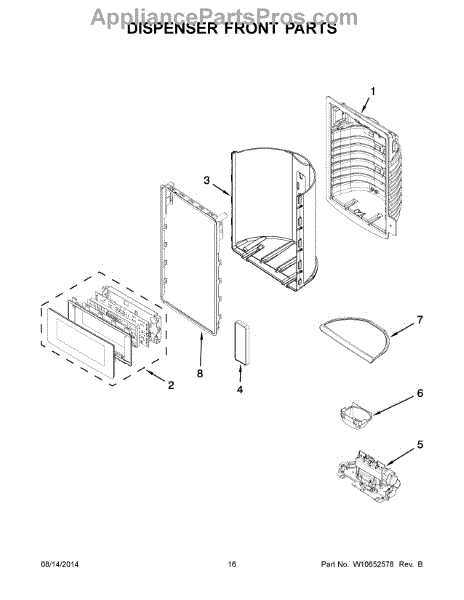

Parts for Whirlpool WRX988SIBB01: 09 - Dispenser Front Parts

The Control Board is an OEM part specifically for the ice dispenser function found on some Whirlpool refrigerators. Featuring precise circuitry and electronic components housed in a protective casing, this board monitors ice production and controls dispensing operations through interaction with the user interface.

Causes of issues may include failure of sensitive ice maker components over time, water infiltration affecting electrical circuits, or power surges disturbing board function.

Symptoms of a bad control board can include:

• Inability to dispense crushed or cubed ice
• Ice maker failing to recognize ice bucket or dispense requests
• Error codes displayed for ice maker malfunctions
• Repeated icemaker failures post-repair affecting components

This OEM replacement ensures the ice dispenser restores convenient ice access through the refrigerator door. Compatible models include KitchenAid, Maytag, and select Kenmore French door refrigerator units.

Color: Black

This small pad fits under a cooktop/range burner grate to cushion and stabilize it, helping prevent wobble and surface scratches. Replacing worn or missing pads keeps the grate level and protects the cooktop finish. What it does:

• Supports and levels the burner grate at its contact points
• Reduces rattling and movement during cooking
• Helps prevent metal-on-metal scraping and scratches on the cooktop
• Replace if pads are missing, flattened, brittle, or the grate rocks

• 1 pad

• Allow the appliance and grates to cool completely; disconnect power/gas if servicing near burners
• Remove the grate; clean old pad residue and thoroughly dry the contact area
• Press the new pad firmly into place; replace all pads on a grate for even height
• Avoid harsh solvents that can damage enamel or stainless finishes

This door ice separator assembly guides ice from the dispenser chute to the dispenser tray, helping prevent jams and misfeeds. It replaces a cracked, warped, or broken separator to restore smooth ice dispensing. What it does:

• Directs ice through the dispenser chute so cubes drop cleanly into cups or glasses
• Helps prevent ice clumping and jams at the door dispenser
• Restores proper alignment of the dispenser path after damage or wear
• Useful when ice falls unevenly or gets stuck in the dispenser area

• Basic removal of the dispenser inner door panel may be required; keep track of fasteners and clips.
• Disconnect power to the appliance before starting work to avoid electrical or mechanical hazards.
• Inspect surrounding chute and dispenser components for damage and clean any ice buildup before reassembly.
• Use gentle force when snapping the new separator into place to avoid breaking tabs—do not force misaligned parts.

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This dispenser drip tray sits beneath the ice/water dispenser recess to catch small drips and spills. Replacing a cracked or missing tray helps protect the door and floor while keeping the dispenser area neat and easier to clean. What it does:

• Collects water and beverage drips from the dispenser area
• Helps prevent moisture from running down the door or onto the floor
• Restores a clean, finished look if the original is cracked, warped, stained, or missing
• Improves fit if the old tray no longer sits securely

• One dispenser drip tray

• Unplug the refrigerator and turn off the water supply before servicing
• Lift the old tray straight out; clean the recess of debris and residue
• Align and press the new tray in until it sits flush and secure
• Do not force or pry against surrounding trim to avoid damage

This control trim ring replaces the decorative bezel around a console control or knob, restoring a finished appearance and protecting the control opening from dirt and wear. Fits where the control meets the console for a clean look. What it does:

• Covers the gap around a control or knob to improve appearance and keep debris out
• Protects the control area from spills and grime that can affect operation
• Restores a secure, finished edge if the original trim is cracked, warped, or missing
• Matches OEM fit and mounting style for straightforward replacement

• Remove power to the appliance before beginning any work.
• Installation generally requires removing the knob and snapping or fastening the trim into place; follow your model's service instructions.
• Handle trim carefully to avoid scratching finish; use trim-safe tools if prying is needed.
• If mounting clips or screws are damaged or missing, replace them before completing installation.
