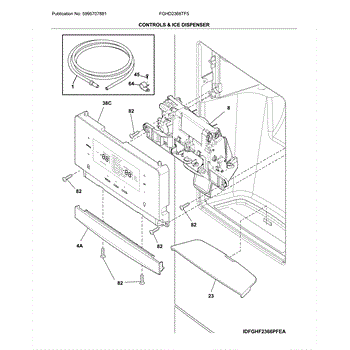

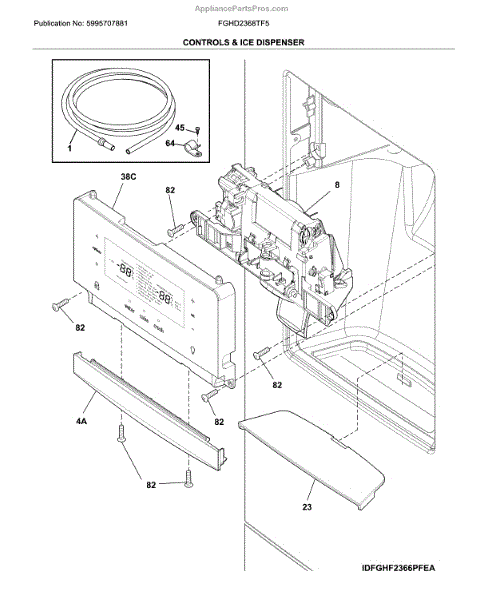

Parts for Frigidaire FGHD2368TF5: Dispenser Parts

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replacement water tube that carries water to your refrigerator's dispenser and ice maker. Restores proper water flow and helps stop leaks or poor dispenser/ice maker performance when the original tube is damaged or clogged. What it does:

• Directs water from the inlet/fill valve to the dispenser and/or ice maker.
• Replaces cracked, split, or clogged tubing that can cause leaks or reduced water flow.
• Helps address symptoms such as visible leaks, no water from the dispenser, or an ice maker that won't fill.
• Fits inline with existing fittings and clamps.

• Shut off the refrigerator power and water supply before beginning work.
• Remove necessary panels or shelving for access; handle tubing and fittings carefully to avoid damage.
• Inspect and replace any worn clamps, gaskets, or fittings.
• After installation, restore water and power, check all connections for leaks, and run the dispenser/ice maker to confirm proper operation.

Color: Stainless Steel
The Dispenser Trim is an OEM part for Frigidaire refrigerators. It surrounds the ice and water dispenser area located externally on the refrigerator door.

Causes of a faulty dispenser trim can include cracks, chips or damage from impacts or general wear over time.

Symptoms of failure include:

• Water leaks developing around the dispenser opening
• Loose or detached trim that does not sit flush
• Access to dispenser functions being obstructed

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dispenser Module is an OEM component specifically designed for Frigidaire refrigerators. This module dispenses filtered water and crushed ice through the refrigerator door.

Causes of a bad dispenser module can include worn gears or levers that impair water or ice dispensing, broken components that prevent proper operation of the dispenser function, or failure of electronic parts that control dispensing.

Symptoms of a bad dispenser module include:

• Slow, inconsistent, or no water dispensing
• Ice crushing mechanism not working
• Dispenser door not opening or closing smoothly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This dispenser drip tray sits at the base of the refrigerator's ice/water dispenser. It catches small drips and splashes to help keep the dispenser recess and door front cleaner and drier. What it does:

• Collects minor drips and splashes from the ice and water dispenser
• Helps protect the door finish and surrounding area from moisture
• Replace if the tray is cracked, warped, stained, or missing
• Common signs include water pooling in the dispenser recess or a loose, ill-fitting tray

• 1 dispenser drip tray

• Pull the old tray straight out of the dispenser recess; no tools are typically required
• Clean any mineral deposits or debris in the recess before installing the new tray
• Align and seat the new tray flat and flush in the opening
• Disconnect power and shut off water

The Dispenser Control Board is an OEM part for Frigidaire refrigerators featuring interior dispensers. It oversees dispensing of ice and water according to user selection. Located within the refrigerator door panel, it activates motors and solenoids.

Symptoms of a bad dispenser control board include:

• Inability to dispense ice or water from lever/button
• Dispenser motors or solenoids not activating properly
• Unresponsive or stuck dispenser lights and selection buttons
• Water or ice volumes not measured accurately

Causes can be long-term moisture exposure degrading circuitry or power surges overloading sensitive components. Proper drying and periodic cleaning help prevent issues.

This genuine OEM control board is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

Color: Black/natural. Nylon

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This wire harness is an electrical connector assembly that links appliance components so circuits can carry power and signals. It helps restore reliable electrical connections and proper operation when the original harness is damaged or worn. What it does:

• Provides factory-style electrical connections between components to enable power and signal flow
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation
• Helps stop symptoms like components that won't power on, erratic cycles, or loss of function traced to wiring
• Maintains correct connector fit and routing for safe, reliable performance

• One wire harness assembly as pictured

• Disconnect all power to the appliance before starting any repair
• Compare the replacement harness to the original to ensure connectors, length, and routing
• Route harness to avoid sharp edges, heat sources, and moving parts; secure with factory clips or ties

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely
