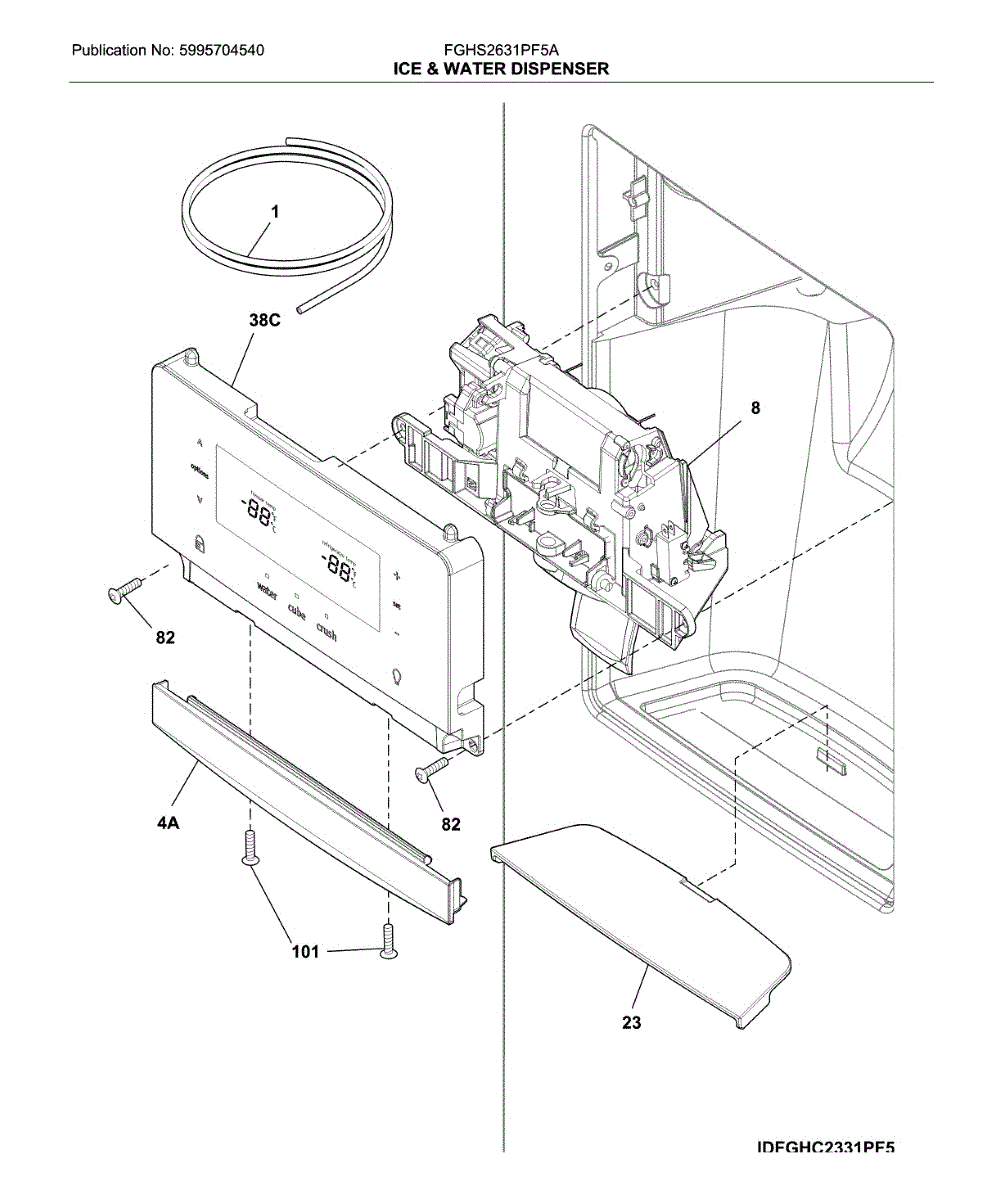

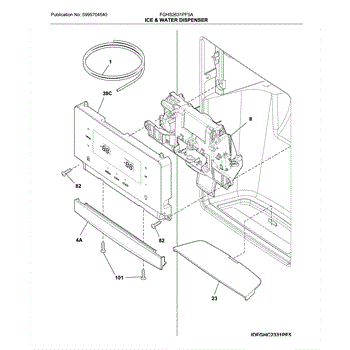

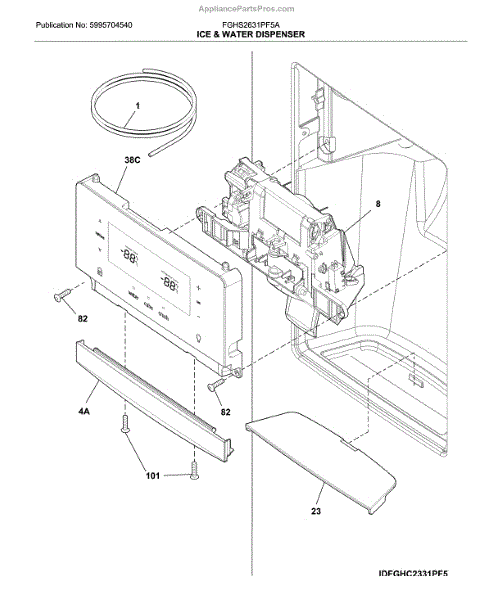

Parts for Frigidaire FGHS2631PF5A: Dispenser Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

Color: Gray
The Dispenser Trim is an OEM part for Frigidaire refrigerators. It is a trim piece that surrounds the dispenser area and adds an aesthetic flair. The dispenser trim helps complete the look of the refrigerator door panel, framing in the key dispensing functionality.

Causes of a bad dispenser trim can include damage from opening and closing the refrigerator door repeatedly over time, accidental impacts that crack or dent the trim, or normal wear and tear that leaves it loose or misaligned.

Symptoms of a bad dispenser trim include:

• Gaps or misalignment around the dispenser opening
• Loose fit that allows for movement when touching the trim
• Cracks, dents, or other exterior damage
• Discoloration from prolonged sunlight exposure

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dispenser Module is an OEM part for Frigidaire refrigerators. It functions to dispense filtered water and ice through the refrigerator door. The module works with the water filtration system as well as ice maker components like the evaporator and ice accumulator, to monitor water levels and release ice or water on demand.

Symptoms of a bad dispenser module include:

• Inconsistent or failing water or ice dispensing
• Water leaks inside refrigerator compartments
• Fault codes or error messages related to dispensing issues
• Repeated trips requiring door access for dispenser system checks

Causes of failure can be worn electronic contacts, failures in water or ice level sensors, or moisture damage over time. Replacement maintains integrated controls for convenient filtered water access.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This dispenser drip tray sits at the base of the refrigerator's ice/water dispenser. It catches small drips and splashes to help keep the dispenser recess and door front cleaner and drier. What it does:

• Collects minor drips and splashes from the ice and water dispenser
• Helps protect the door finish and surrounding area from moisture
• Replace if the tray is cracked, warped, stained, or missing
• Common signs include water pooling in the dispenser recess or a loose, ill-fitting tray

• 1 dispenser drip tray

• Pull the old tray straight out of the dispenser recess; no tools are typically required
• Clean any mineral deposits or debris in the recess before installing the new tray
• Align and seat the new tray flat and flush in the opening
• Disconnect power and shut off water

The User Interface is an OEM part for Frigidaire refrigerators. This component allows users to adjust temperature settings, control the water and ice dispenser, and access the refrigerator's various features and diagnostics.

Causes of a malfunctioning User Interface can range from electrical issues, such as short circuits or power surges, to physical damage, like cracks or wear from frequent use.

Symptoms indicating the need for a replacement include:

• Inconsistent or non-responsive touchpad inputs
• Dimmed or non-working display lights
• Incorrect temperature readings or failure to adjust settings
• Unexpected behavior or error codes displayed

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This water inlet tube routes potable water from the refrigerator's inlet/valve to the dispenser and ice-making components, helping restore normal water delivery and prevent leaks when damaged. What it does

• Channels water from the inlet valve to the dispenser/ice maker assembly.
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow.
• Helps stop visible dripping, puddling, or intermittent water flow at the dispenser.
• Works as a direct-fit plumbing replacement when the original tube is damaged.

• One water inlet tube

• Turn off refrigerator power and shut off the water supply before starting.
• Inspect fittings and seals; replace any damaged ferrules or gaskets for a watertight connection.
• Use basic hand tools; avoid sharp bends or kinks when routing the tube.
• After installation, restore water and power, then check all connections for leaks.

This refrigerator water inlet tube channels water from the valve into the internal dispensing/ice system. Replace a cracked, kinked, or clogged tube to restore proper flow and help stop leaks at the rear or inside the cabinet.

• Routes water from the inlet valve to the refrigerator's water system
• Helps resolve leaks, weak/no dispenser flow, or no ice production due to damaged or restricted tubing
• Replaces brittle, cracked, or kinked tubing that can cause drips or water damage
• Maintains a sealed path when properly seated in the existing fittings

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure; place a towel/pan to catch residual water
• Note the original routing; transfer any reusable clips/fittings from the old tube
• Cut ends square if required, push fully into couplers, restore water, and check carefully for leaks before reconnecting power

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

This water fill tube directs water from the inlet valve into the ice maker's fill cup. Replace a cracked, kinked, or frozen tube to restore reliable ice production and help prevent leaks or splashing inside the freezer.

• Routes water from the rear inlet valve to the ice maker fill area
• A damaged or blocked tube can cause no ice, small cubes, leaks near the back/freezer, or ice buildup at the fill spout
• Formed design helps aim water into the fill cup for proper filling
• Replace if the tube is cracked, brittle, kinked, or repeatedly freezing

• Disconnect power and shut off the water supply before servicing
• Access the rear and freezer liner; disconnect the old tube at the valve and liner/fill area
• Seat the new tube fully through the liner and into the ice maker fill cup; reconnect to the valve and secure any reused clips/seals
• Restore water and power, then check for proper fill and leaks

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
