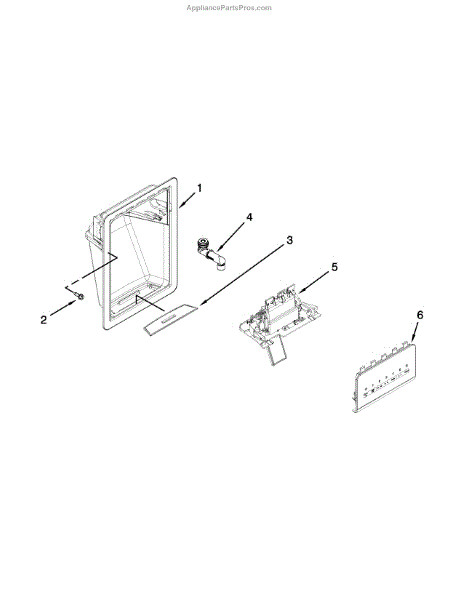

Parts for Kenmore 106.51129212 (10651129212, 106 51129212): Dispenser Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This black dispenser grille fits at the base of the refrigerator's ice/water dispenser. It provides a clean, finished surface over the dispenser well and helps catch minor drips when the original grille is cracked, stained, loose, or missing.

• Sits over the dispenser well to catch minor drips and splashes
• Protects and finishes the dispenser recess for a tidy appearance
• Helps keep moisture away from surrounding door surfaces
• Typical failure signs: cracked, warped, discolored, broken tabs, or won't stay seated

• Disconnect power and shut off the water supply before servicing.
• Lift or slide the old grille out of the dispenser recess.
• Clean the area; align the new grille with the locating tabs.
• Press down until fully seated and flush with the surrounding trim.

Single water tube/fitting used in refrigerator water and ice systems to route supply water. Replacing a damaged tube restores reliable water flow and helps stop leaks and puddling under the appliance. What it does:

• Directs water from the household supply to the dispenser or ice maker.
• Common repair for visible leaks, puddles under the refrigerator, or intermittent dispenser flow.
• Restores consistent water flow so the dispenser and ice maker can fill properly.
• Replaces cracked, brittle or kinked factory tubing at the connection point.

• Shut off power and turn off the water supply before beginning work.
• Have a towel or small container ready to catch any remaining water in the line.
• Inspect connection seals and replace worn O-rings or gaskets as needed.

This ice door replaces the chute cover that opens and closes during ice dispensing, helping keep cold air in the freezer and preventing spills. Restores proper ice flow and helps stop warm air and odors from entering the ice bin. What it does:

• Acts as the moving cover for the ice dispenser chute to control ice release
• Helps maintain freezer temperature by sealing the dispenser opening when closed
• Prevents moisture, debris, and kitchen odors from entering the ice compartment
• Can resolve symptoms like ice jamming, sticky or non-closing dispenser door, or unusual freezer air exchange

• One ice door (single chute cover) as shown

• Disconnect power to the appliance before beginning any work
• Remove ice bin and any obstructing shelves or panels
• Handle plastic parts carefully to avoid cracking; use proper tools for fasteners
• If door does not align after install, check linkage/hinge and adjust per instructions

Color: Black
