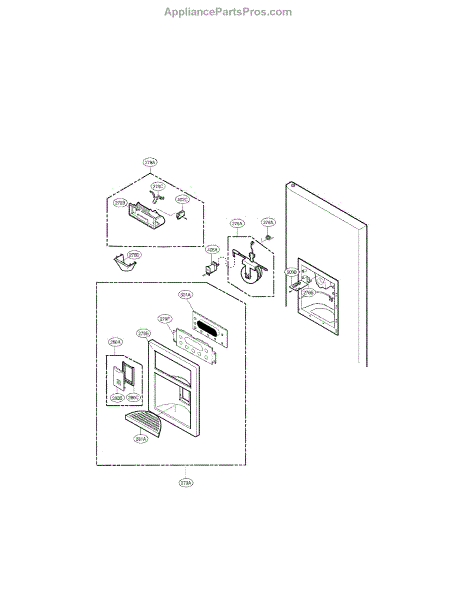

Parts for Lg LMX25964SS: Dispenser Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

This small torsion spring restores tension to the dispenser ice door lever so the chute door snaps closed after dispensing. It helps keep warm air and moisture out, reducing frost, condensation, and stray ice from the dispenser.

• Provides return tension for the dispenser ice chute door/lever
• Helps the chute door seal properly to limit warm air infiltration
• Worn or broken springs may cause the ice door to stay open or close slowly
• Symptoms can include frost/ice buildup in the chute, moisture at the dispenser, or cubes dropping/clumping

• Unplug the refrigerator or switch off the circuit breaker before servicing
• Remove the dispenser trim/panel to access the ice door mechanism; note spring orientation with a photo
• Use needle-nose pliers and eye protection—small springs are under tension and can snap
• After installation, cycle the dispenser to confirm the door opens/closes freely and seals

The Ice Door Solenoid Assembly is an OEM replacement part for LG refrigerators. This assembly controls the opening and closing of the ice door, which allows ice to be dispensed from the freezer to the exterior of the appliance. When you request ice, the solenoid activates, opening the ice door and permitting ice to pass through.

Symptoms of a bad Ice Door Solenoid Assembly include:

• Ice door not opening or closing properly
• Failure to dispense ice
• Ice accumulating or jamming at the dispenser

Causes for a malfunctioning Ice Door Solenoid Assembly can include electrical issues such as faulty wiring, wear and tear from frequent use, or mechanical problems affecting the solenoid's ability to move the ice door.

This OEM LG part is also compatible with Sears/Kenmore models.

This is the main power control board assembly that manages appliance electronics and user functions, restoring proper control and responsiveness when a failed board causes power or control issues. It replaces the factory control module to regain normal operation. What it does:

• Regulates power distribution to motors, valves, and display components
• Processes user commands and runs the appliance's control logic
• Can resolve symptoms such as no power to controls, unresponsive buttons, or intermittent operation
• Helps stop erratic cycles caused by a damaged or burned control board

• Disconnect power before removing the old board to prevent shock or damage
• Handle the board by edges and avoid touching components or connector pins
• Verify connector orientation and seating during reassembly; replace any damaged wiring or connectors
