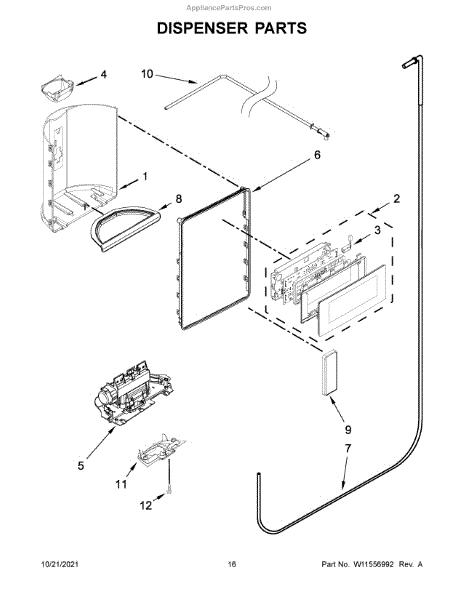

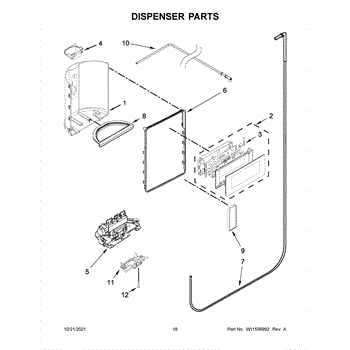

Parts for Maytag MSC21C6MFZ05: Dispenser Parts

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

Replacement ice door that fits in the freezer door dispenser to control ice flow and reduce warm-air infiltration. Restores proper dispensing action and helps prevent ice jams and frost buildup in the dispenser chute. What it does:

• Acts as the dispenser shutter to open and close the ice chute during dispensing
• Directs ice pieces into the cup to reduce spills
• Helps block warm air and moisture when the dispenser is idle to limit frost
• Common symptoms: ice won't dispense, door stuck open/closed, or frost/icing in dispenser area

• Disconnect power to the appliance before beginning any service
• Remove the dispenser bezel or cover to access the door
• Handle the plastic door and hinge carefully to avoid breakage; align hinge pins when installing
• After installation, restore power and test the dispenser operation to ensure proper fit and movement

The Dispenser Drip Tray is an OEM part for Whirlpool refrigerators. It is a plastic tray located below the ice and water dispenser that catches any accidental spills or drips during use.

Symptoms of a bad drip tray can include:

• Ice or water accumulation under the dispenser area
• Overflow or leakage onto surrounding counter surfaces
• Stains or moisture damage below the refrigerator

Causes of drip tray issues occur from cracks, punctures, or breakage rendering it unable to hold liquid. Normal wear over extended use may also cause trays to develop leaks.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, and Kenmore brands.

The Dispenser Pad is an OEM part for Whirlpool refrigerator dispensers. It attaches under the dispenser lever to activate water and ice functions with light finger pressure.

Symptoms of a bad dispenser pad include:

• Unable to dispense water or ice by pressing the lever
• Leaks or water drips around the dispenser area
• The dispenser mechanism making noises when engaged

Causes of a bad dispenser pad can be wear over time, tears in the rubber material, or failure of the electrical contacts on the pad.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal
