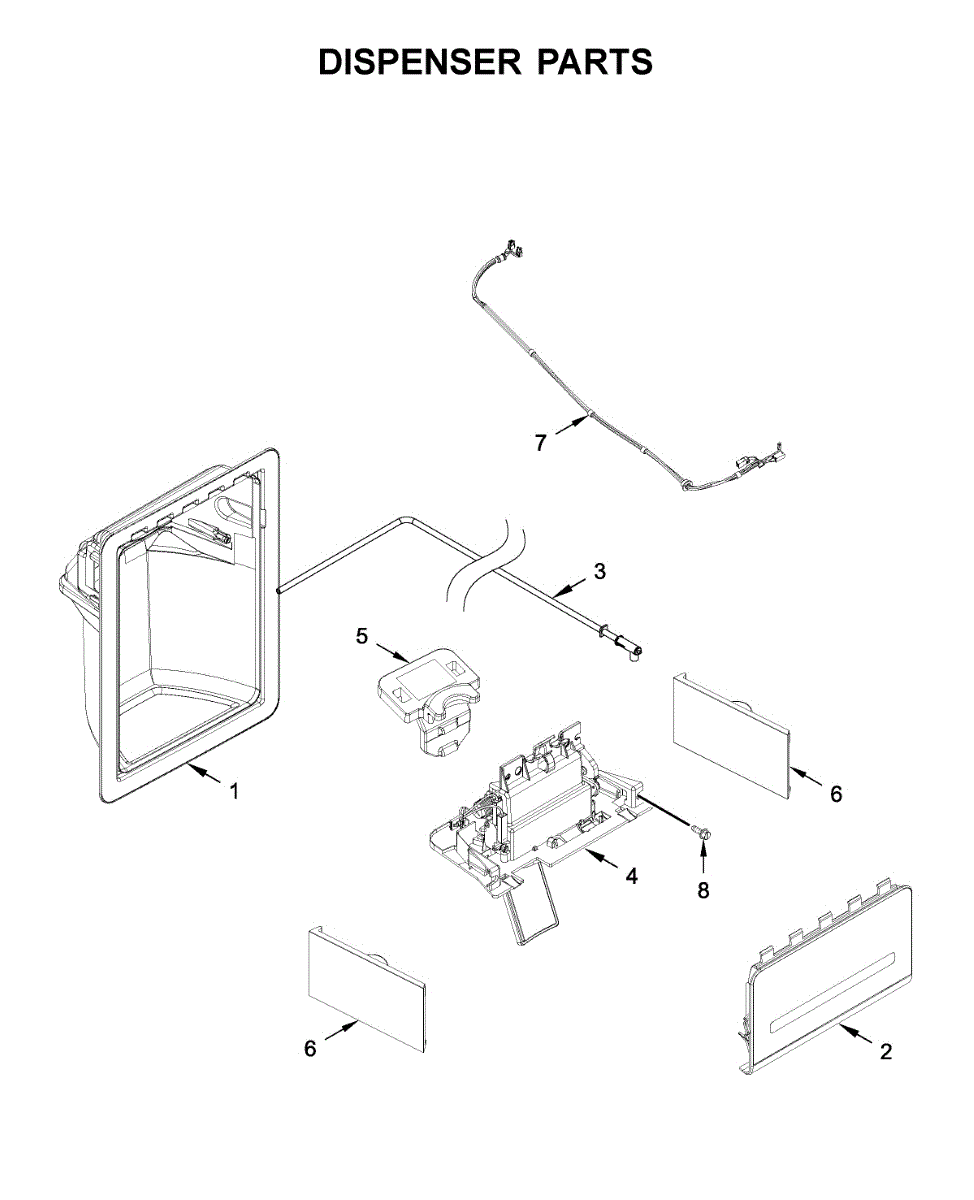

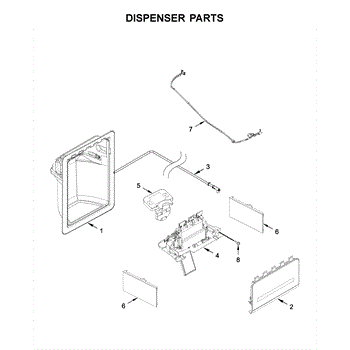

Parts for Whirlpool WRS315SDHM02: Dispenser Parts

This electronic control board manages the appliance's user interface and cycle functions, restoring reliable control of settings, timers, and electronic diagnostics. Replaces a failed main control to recover normal machine operation. What it does:

• Receives input from the control panel and tells the appliance when to start, stop, and run cycles
• Controls timers, relays, and electronic sensors for correct cycle sequencing
• Common symptom: appliance won't start or complete cycles, or cycles act erratically
• Common symptom: display is blank, shows error codes, or buttons are unresponsive

• Disconnect all power (unplug or switch off at the breaker) before starting
• Label wiring and take photos to ensure correct re-connection
• Handle the board by the edges and avoid static discharge; do not touch component leads
• Test operation before reassembling trim panels.

This genuine replacement fitting connects appliance water or fluid lines to internal plumbing, restoring a secure seal and proper flow. Use it to replace a worn or damaged connector and stop leaks or loose hose connections. What it does:

• Provides a sealed connection between a hose and the appliance plumbing
• Helps stop leaks from cracked, corroded, or loose fittings
• Restores reliable water or fluid flow through the supply line
• Fits where the original factory connector was used

• One replacement fitting as shown

• Turn off water and disconnect power to the appliance before starting
• Inspect and replace any worn O-rings or gaskets as needed
• Hand-start threads, then tighten to factory torque; avoid over-tightening

This retainer is a small mounting clip that secures an appliance component or assembly in place to prevent shifting and reduce noise or wear. It restores proper fit and alignment where a worn or broken clip allows movement. What it does:

• Holds panels, trim, or small assemblies securely to their mounting points
• Prevents rattling, shifting, or misalignment caused by a missing or damaged clip
• Helps maintain proper spacing so seals and connections stay aligned
• Works as a direct-fit replacement when the original retainer is broken or missing

• One retainer

• Disconnect power and, if applicable, water supply before starting any repair
• Remove surrounding fasteners or trim gently to access the clip; avoid forcing plastic tabs to prevent breakage
• Replace with the exact part number and ensure the component is seated fully before reassembling

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing
