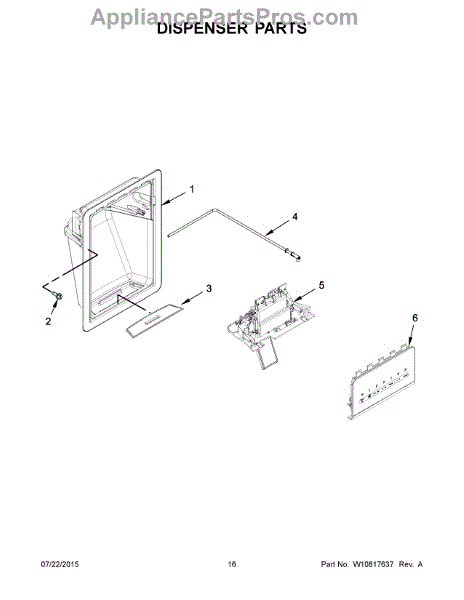

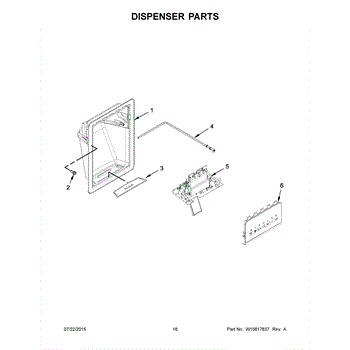

Parts for Whirlpool WRS342FIAB04: 09 - Dispenser Parts

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This black dispenser grille fits at the base of the refrigerator's ice/water dispenser. It provides a clean, finished surface over the dispenser well and helps catch minor drips when the original grille is cracked, stained, loose, or missing.

• Sits over the dispenser well to catch minor drips and splashes
• Protects and finishes the dispenser recess for a tidy appearance
• Helps keep moisture away from surrounding door surfaces
• Typical failure signs: cracked, warped, discolored, broken tabs, or won't stay seated

• Disconnect power and shut off the water supply before servicing.
• Lift or slide the old grille out of the dispenser recess.
• Clean the area; align the new grille with the locating tabs.
• Press down until fully seated and flush with the surrounding trim.

Single water tube/fitting used in refrigerator water and ice systems to route supply water. Replacing a damaged tube restores reliable water flow and helps stop leaks and puddling under the appliance. What it does:

• Directs water from the household supply to the dispenser or ice maker.
• Common repair for visible leaks, puddles under the refrigerator, or intermittent dispenser flow.
• Restores consistent water flow so the dispenser and ice maker can fill properly.
• Replaces cracked, brittle or kinked factory tubing at the connection point.

• Shut off power and turn off the water supply before beginning work.
• Have a towel or small container ready to catch any remaining water in the line.
• Inspect connection seals and replace worn O-rings or gaskets as needed.

This component is a display control board used for the water dispenser on refrigerators. It sits above the ice and water dispenser in the door of the appliance. It's used to control various parts of the refrigerator to ensure the dispenser operates correctly. Buttons are included on the display control board for users to change settings, indicate a filter has been changed, and select the refrigerator temperature.If there is an issue with the display control board, the dispenser may no longer work. The dispenser's buttons may stop making changes to the dispenser settings. If this occurs, the display control board should be replaced. Unplug the refrigerator before using a screwdriver to depress the retaining tabs holding it in place. Make a note of where the wires are connected before taking them off. Remove the old display control board before connecting the wires to the new component. Insert the tabs on top into the housing and snap it into place. At this time, power can be restored to the refrigerator.This part is sold on an individual basis and directly sourced from the manufacturer. The display control board is a genuine OEM replacement component used for several refrigerators by Whirlpool.
