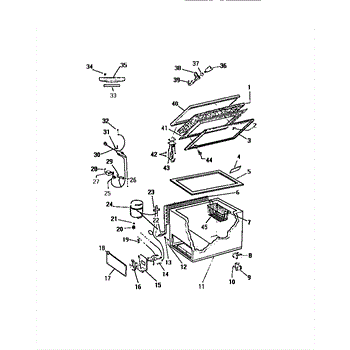

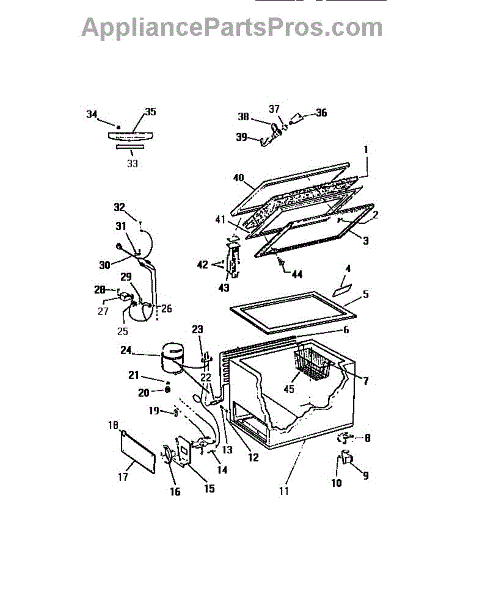

Parts for Frigidaire CFS83SM2: 02 - Door, Cabinet, Unit Parts

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

The Gasket is an OEM part for Frigidaire freezers. It creates an airtight seal around the freezer door, preventing warm air from entering and cold air from escaping. This seal is vital for maintaining the correct internal temperature, ensuring the freezer operates efficiently and keeps food properly frozen. The gasket measures 19 1/2 inches wide by 28 inches tall.

Causes of a bad gasket can include normal wear and tear, exposure to extreme temperatures, or damage from frequent opening and closing of the freezer door. Dirt and debris accumulation can also compromise the gasket's sealing ability.

Symptoms of a bad gasket include:

• Frost buildup inside the freezer
• The freezer running more frequently or continuously
• Higher than normal energy bills
• Warm spots inside the freezer
• The door not closing properly or a visible gap between the door and the frame

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This cold control kit replaces the mechanical temperature control thermostat that regulates your refrigerator or freezer's cooling. Restore proper temperature regulation and consistent cycling when the original control sticks, drifts out of calibration, or fails intermittently.

• Senses compartment temperature with a capillary bulb and opens/closes contacts to maintain the set temperature
• Cycles the cooling system on and off for steady, reliable performance
• Common symptoms: too warm or over-cooling/freezing items, unit won't start unless the dial is moved, runs constantly, erratic temperature swings, unresponsive temperature dial
• Helps correct intermittent cooling caused by worn or pitted thermostat contacts

• Disconnect power before servicing; work in a dry area
• Access the control housing, note wire locations, and transfer wires to the new control one at a time
• Route and secure the sensing bulb/capillary exactly as original; do not kink or sharply bend it
• Set to a mid-range setting after installation and allow up to 24 hours for temperatures to stabilize

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

Includes service line.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This part has been discontinued by the manufacturer and is no longer available.

The Freezer Door Key is an OEM replacement part for Frigidaire refrigerators. This small but essential component is designed to securely lock the freezer door, preventing accidental openings or unauthorized access.

Symptoms of needing to replace the freezer door key include:

• Difficulty in locking or unlocking the freezer door
• The key not fitting properly or becoming stuck in the lock
• Visible wear, damage, or breakage of the key itself

Causes of a faulty freezer door key can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the locking mechanism itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This part has been discontinued by the manufacturer and is no longer available.

Kit of 24 clips
