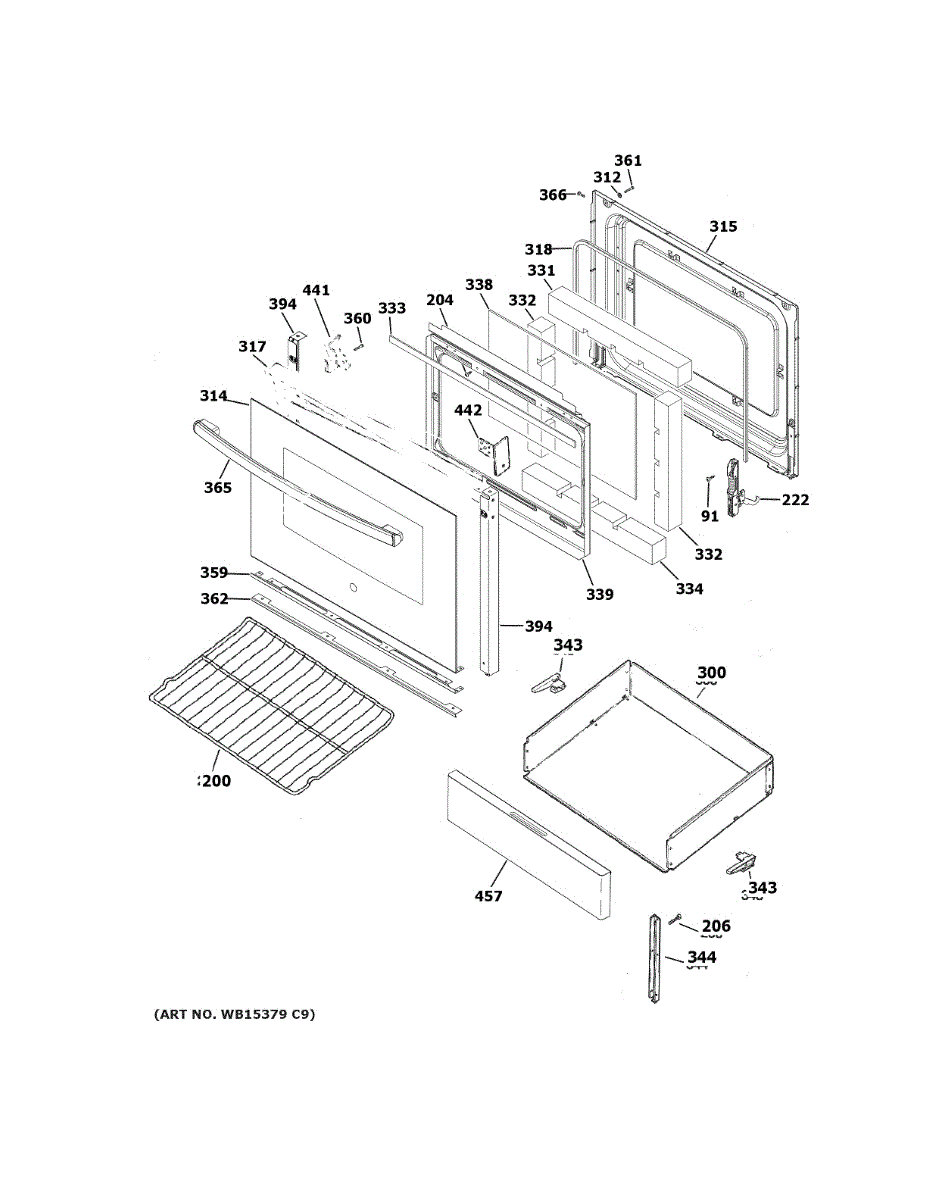

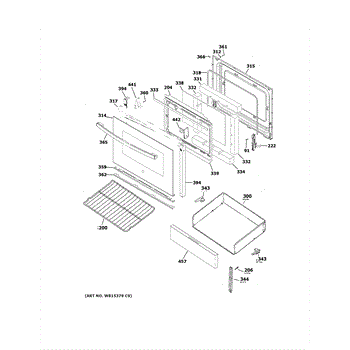

Parts for Ge JBS360DM2BB: Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This door hinge replaces a worn or damaged hinge to restore proper door alignment and smooth opening/closing. It helps prevent door sagging and improves the door seal to keep interior temperatures consistent. What it does:

• Supports the refrigerator/freezer door so it opens and closes smoothly
• Restores proper door alignment to help maintain an even seal
• Reduces rubbing, scraping, or excessive noise from a failing hinge
• Helps prevent stress on door seals and exterior trim from a sagging door

• Disconnect power to the appliance before starting and remove food from the door
• Support the door while removing/installing the hinge to avoid injury or damage
• Use basic hand tools; handle sharp edges and hardware carefully
• Check door alignment after installation

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

The outer door glass is an OEM part for GE ovens. It serves as the protective barrier for the oven door, providing insulation and a visually appealing finish. It is designed to maintain the desired temperature inside the oven while keeping the exterior cool to the touch.

A bad outer door glass can result in issues such as cracks, shattered glass, or loose trim. Causes of a bad assembly can include accidental impacts, exposure to extreme temperatures, or wear and tear over time.

Symptoms of a bad outer door glass include:

• Visible cracks or shattered glass on the oven door
• Loose or damaged trim around the glass panel
• Heat escaping from the oven door
• Difficulty in cleaning or removing stains from the glass

Replace your worn-out or damaged outer door glass with this genuine OEM GE part to restore your oven.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


A welded door liner assembly that replaces a damaged or dented inner door shell to restore proper sealing and appearance. Designed as a direct-replacement inner surface for affected appliance doors. What it does

• Replaces a cracked, dented, or otherwise damaged inner door liner that can allow drafts or interfere with proper door closure.
• Restores the door's interior surface so gaskets and inner components mount correctly.
• Helps eliminate cold or heat leaks caused by a compromised liner.
• Improves door appearance and prevents further damage to internal door parts.

• Disconnect power and follow OEM service manual instructions before starting work.
• Use safe handling practices — edges may be sharp and assembly can be heavy; use gloves and eye protection.
• May require removing door panels, trim, and hardware; retain mounting screws and check gasket seating during reassembly.

Color: Black

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This top-door insulation replaces the foam insert behind the refrigerator/freezer door panel to help maintain interior temperature and reduce heat transfer. Restores proper door insulation for more consistent cooling. What it does

• Provides thermal insulation behind the top door panel to help keep cold in and heat out
• Helps reduce frost buildup and temperature fluctuations near the door area
• Limits air transfer that can increase compressor run-time and energy use
• Restores proper fit and support for the inner door panel

• Disconnect power to the appliance before starting any repair.
• Remove the inner door panel fasteners and lift the panel to access the old insulation; handle panels carefully to avoid damage.
• Replace with the exact OEM insulation and resecure the inner panel per manufacturer instructions.
• If clips, adhesive, or fasteners are damaged or missing, replace them before reassembly.

This side door insulation panel installs inside a refrigerator door to help maintain internal temperature and reduce heat transfer. It replaces damaged or missing insulation to help the door seal and cooling performance. What it does:

• Fills the cavity inside a refrigerator door to limit air and heat transfer
• Helps the gasket maintain a consistent interior temperature by supporting proper door structure
• Commonly replaced when the original insulation is cracked, waterlogged, or missing
• Works as a direct-fit replacement for the specified OEM part number

• One side door insulation panel

• For safety, unplug the appliance or shut off power before starting repairs
• Remove the interior door panel or liner to access the insulation; handle foam carefully to avoid tearing
• Use manufacturer-recommended fasteners/adhesives if reattaching insulation; do not compress or overfill the cavity

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This drawer mounting bracket secures the lower storage or warming drawer to the range cabinet, keeping it aligned so it opens and closes smoothly. Replace a bent, broken, or missing bracket to restore proper drawer tracking and stability.

• Anchors the drawer to the range frame and supports correct slide alignment
• Helps prevent binding, rubbing, and uneven gaps
• Replace if the drawer wobbles, sags, falls off the track, or rattles
• Use when the original bracket is bent, cracked, or missing

• Disconnect power; for gas models, also shut off the gas supply
• Remove the drawer and note the bracket's orientation and mounting points
• Retain and transfer mounting hardware from the original bracket if needed
• Reinstall the drawer and verify smooth, level operation before restoring power/gas

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

The Black Handle and Endcap is an OEM part for GE ranges. It includes both the oven door handle as well as the decorative endcaps on either side. Providing a sophisticated look, these parts play an important aesthetic role.

The handle and endcaps are responsible for a sleek modern style. Made from durable black materials, they can resist everyday wear without showing fingerprints or other marks as easily as lighter tones.

Symptoms of a bad handle and endcaps include:

• Cracked, chipped or broken surfaces
• Loose fit that enables dirt/grime behind the endcaps
• Dull, faded or stained appearance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a 10-16 Phillips pan point screw used to secure panels and components on compatible GE appliances. It replaces a missing or stripped fastener to restore proper fit and reduce vibration or rattling. What it does:

• Secures panels, brackets, or trim pieces to the appliance cabinet or internal assemblies
• Restores secure mounting when original screw is lost, damaged, or stripped
• Helps stop loose parts from vibrating or shifting during operation
• Matches the original fastener type and drive style for a proper fit

• One 10-16 Phillips pan point screw

• Use the correct Phillips screwdriver size to avoid cam-out or stripped heads
• Tighten until snug; avoid over-torquing which can strip threads or crack plastics
• Replace any stripped or damaged mating nut/threads for reliable fastening
• Disconnect power and follow appliance-specific safety steps before servicing

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

This replacement drawer panel restores the finished front appearance of the appliance drawer and covers the drawer opening for a clean, like-new look. It's a direct-fit cosmetic panel made to match the appliance's original finish. What it does

• Replaces a cracked, dented, scratched, or faded drawer front to restore appearance
• Covers and protects the drawer opening from dust and debris
• Provides the correct mounting surface for existing trim, handles, and clips
• Helps maintain consistent appearance across the appliance front

• High-level replacement; remove drawer assembly to access mounting screws or clips
• Keep small fasteners and mounting clips; verify orientation before tightening
• Use hand tools and avoid over-tightening to prevent panel damage
• Follow safety procedures and disconnect power if instructed by the manufacturer
