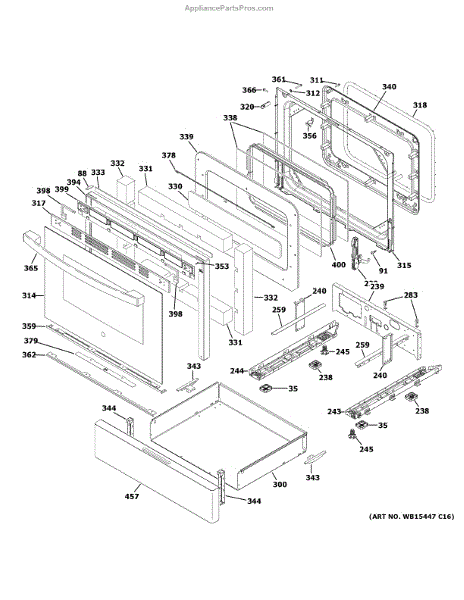

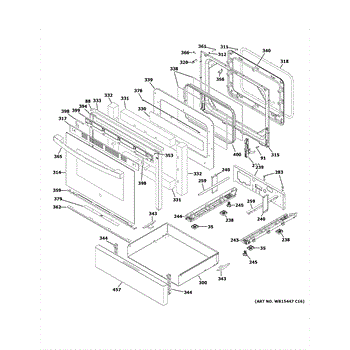

Parts for Ge JGB660DEJ5WW: Door & Drawer Parts

This door hinge restores smooth, secure door movement so the door aligns and seals properly. Replace a worn or damaged hinge to correct doors that sag, rub, or won't close all the way.

• Supports the door and guides controlled opening and closing
• Keeps the door aligned for a proper latch/gasket seal
• Helps prevent heat/steam escape caused by poor closure
• Common symptoms: door won't close fully, door drops or feels loose, uneven sealing, squeaking or binding at the hinge

• Disconnect power at the breaker or unplug; allow the appliance to cool completely
• Support the door while removing screws/retainers; note hinge orientation for reassembly
• Use care—hinge mechanisms can be under tension and edges may be sharp; wear gloves/eye protection
• After installation, verify door alignment and closure; replace the opposite hinge if needed for even action

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

The GE Glass Door is an OEM part for GE ranges. It allows users to view food from outside without opening the door, helping maintain optimal cooking temperatures.

Symptoms of a bad glass door include:

• Leaks or drafts felt around the door seal when the oven is in use
• Condensation or film buildup on the interior glass surface
• Cracks or chips in the glass that compromise structural integrity
• Warping of the door frame affecting a proper seal

The causes of a bad glass door can be normal wear and tear over many heating and cooling cycles. Exposure to cleaning chemicals may also deteriorate the door seal more quickly.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door line weld assembly secures and reinforces the oven door structure to maintain alignment and a stable seal during use. It replaces a damaged or bent welded door line to restore proper door fit and operation. What it does:

• Provides the welded structural connection used in the oven door assembly
• Restores door alignment and helps maintain an effective seal after damage
• Addresses symptoms like a loose, misaligned, or sagging oven door
• Works as a direct-fit replacement when the original welded door line is worn or damaged

• Requires basic appliance disassembly; follow manufacturer instructions for door removal
• Disconnect power to the appliance before beginning any repair
• Handle sharp edges with care and use appropriate gloves

This vent trim is the exterior trim piece that covers and directs the oven/range vent opening for a finished look and proper airflow path. It restores appearance and seals the vent perimeter. What it does:

• Covers the vent opening to hide internal components and improve the appliance's appearance
• Helps guide exhaust airflow from the oven cavity to the external vent area
• Replaces cracked, warped, discolored, or missing vent trim that causes unsightly gaps
• Prevents small debris from entering the vent opening

• One vent trim

• Turn off power to the appliance before starting work to avoid electrical hazards
• Remove any damaged trim and retain fasteners; inspect mounting area for damage before installing the new trim
• Align trim carefully and secure using the original screws or clips; avoid over-tightening to prevent cracking

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spacer sets the correct gap and alignment between appliance components so panels, brackets, or handles mount securely and operate quietly. Replacing a worn or missing spacer helps prevent rubbing, noise, and premature wear. What it does:

• Maintains proper clearance between mating parts for accurate alignment
• Positions mounting hardware at the correct depth
• Helps prevent rattling, rubbing, or uneven gaps
• Replaces a missing, cracked, warped, or heat-damaged spacer

• 1 spacer

• Disconnect power and allow the appliance to cool before service
• Note the original order/orientation of washers and spacers during disassembly
• Install the new spacer in the same position; reuse hardware if undamaged
• Tighten fasteners evenly and avoid overtightening; verify clearances before restoring power

This front door insulation pad fits behind the oven door to help reduce heat loss and lower the exterior door temperature for safer, more consistent cooking. It replaces worn or damaged insulation to help the oven maintain oven cavity heat. What it does:

• Provides thermal barrier behind the oven door to reduce heat transfer
• Helps the oven hold temperature more consistently during use
• Reduces exterior door heat, improving user safety
• Replaces torn, compacted, or missing insulation that can cause heat loss

• Disconnect power to the appliance before starting any repair.
• Allow the oven and door to fully cool; handle insulation with gloves if soiled.
• Some installs require removing the oven door or inner door panel—keep screws and fasteners organized.
• If you encounter damaged clips or fasteners, replace them with OEM parts for a secure fit.

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Drawer Glide is an OEM replacement part for GE electric and gas ranges. It functions as the suspension mechanism facilitating smooth extension and retraction of range drawer shelves.

Causes of a bad drawer glide can include wear from years of use, damage from heavy pots or pans straining the glide, or loose mounting fixtures failing to securely support shelf weight.

Symptoms of a bad drawer glide include:

• Difficulty accessing or storing items within drawers
• Squeaking or grinding noises when opening/closing
• Drawers failing to fully extend or retract
• Risk of entire drawer assembly detaching over time

This OEM GE part is also compatible with some Hotpoint, RCA and select Kenmore electric and gas range models.

This drawer bracket secures and supports a refrigerator/ freezer drawer, restoring proper alignment and load-bearing at the front or side mounting point. It's a simple replacement that helps the drawer open and close smoothly. What it does:

• Holds and supports the drawer to prevent sagging or tipping under normal loads
• Keeps the drawer aligned on its track for smooth operation
• Restores proper engagement with the cabinet so the drawer seats and latches correctly
• Helps prevent binding, catching, or uneven gaps when opening or closing

• Disconnect power to the appliance before servicing and work with the drawer empty.
• Remove the drawer and any trim as needed to access the bracket; use appropriate hand tools (screwdriver/socket) for fasteners.
• Reuse existing screws only if undamaged; replace fasteners if stripped or corroded.
• Align the bracket carefully before tightening to avoid binding; do not force or overtighten plastic components.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

The White Handle and Endcap is an OEM part for GE ranges. It includes both the oven door handle as well as the decorative endcaps on either side. Together, these parts play an important aesthetic role in conveying an upscale look.

The handle and endcaps are responsible for providing an elegant oven door design. Made from durable white materials, they are better suited to resist scratches, stains, and discoloration compared to standard grades.

Causes of a bad handle and endcaps can include normal wear over time exposing them to grime, grease and potential stains in the kitchen. Accidental damage from cleaning chemicals is also possible.

Symptoms of needing to replace the handle and endcaps include:

• Dull or stained appearance that no longer looks white
• Cracks, chips or breaks in the material
• Loose fit of the endcaps that enables dirt/grease to accumulate behind

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement door trim restores the finished edge and appearance of the appliance door, covering the perimeter for a clean look and helping keep door components protected from everyday wear. What it does:

• Replaces damaged, cracked, or missing outer door trim to restore appearance
• Covers and protects the door edge and mounting points from chips and dings
• Helps maintain a continuous seal area by keeping trim aligned and secure
• Common symptom: visible cracks, warped or loose trim around the door edge

• Disconnect power to the appliance or unplug before starting work
• Remove the old trim carefully to avoid scratching the door finish or damaging clips
• Use appropriate tools and a helper if the door is heavy; align trim and secure fasteners per OEM instructions
• Wear gloves to protect hands from sharp edges and to avoid fingerprints on finished surfaces

This panel backer is the interior support piece that helps secure and align the appliance control panel, protecting wiring and switches while keeping the panel stable during use. It restores proper fit and prevents rattling or loose controls. What it does:

• Supports and positions the control/display panel so buttons and switches align correctly
• Protects internal wiring and components behind the control panel
• Reduces panel flexing, vibration noise, and intermittent button contact
• Helps maintain a flush, stable control surface for reliable operation

• Disconnect power before starting — follow appliance-specific safety steps
• Remove the outer control/display panel to access and replace the backer
• Transfer any buttons, clips, or switches from the old backer to the new part as needed
• Inspect adjacent wiring and mounting clips; replace any damaged fasteners for a secure fit

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This drawer panel is the front replacement piece that restores the appearance and proper closure of a damaged or worn lower appliance drawer. It provides the visible face and mounting surface needed for normal drawer use. What it does:

• Replaces a cracked, dented, scratched, or warped drawer front to improve appearance
• Provides the mounting surface and edge needed for the drawer to sit and close correctly
• Covers and protects the underlying drawer components from spills and debris
• Matches the OEM shape and hole pattern for straightforward replacement when compatible

• Disconnect power to the appliance and remove any contents from the drawer before starting.
• Handle the panel carefully; edges and mounting tabs can be sharp.
• Remove fasteners and clips from the old panel and transfer any required hardware or brackets to the new panel if applicable.
