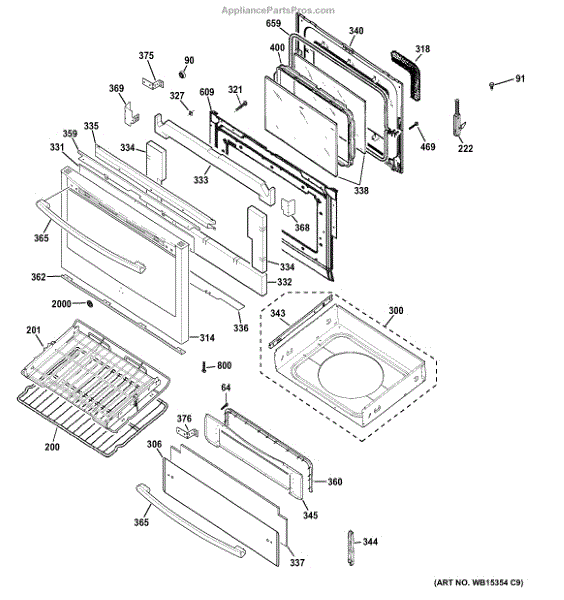

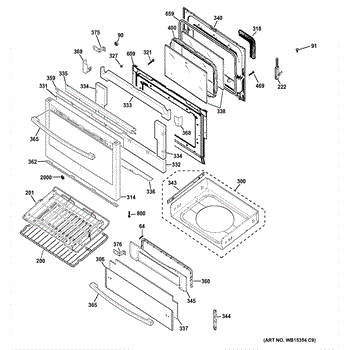

Parts for Ge PGB940SEH2SS: Door & Drawer Parts

This small replacement bumper cushions and protects the appliance frame/trim where panels meet, helping reduce vibration, chipping and rattles for a cleaner, quieter fit. Ideal when the original bumper is worn, cracked or missing. What it does:

• Cushions contact between the frame/trim and adjacent panels to reduce noise and prevent damage
• Helps maintain proper panel alignment and sealing where the trim meets the cabinet
• Reduces rattling or vibration caused by loose or degraded trim pads
• Restores protective spacing that prevents chips or scratches to finished surfaces

• One frame front bumper

• Disconnect power to the appliance before starting work and follow all safety precautions
• Usually installs by pressing into a slot or onto a mounting surface after removing the trim piece; some trim removal may be required
• Inspect mating surfaces for damage or debris and clean before installing the new bumper
• Replace with the exact part number only; do not force or modify the bumper to fit

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This is the flat wire shelf that slides into your oven's side supports to hold bakeware at the right height. Replace a bent or missing rack to restore safe, stable, and adjustable cooking space.

• Provides a sturdy, level surface for pans and dishes at multiple rack positions
• Slides in and out for easy loading and checking of food
• Helps position food correctly for even baking, roasting, or broiling
• Common symptoms: rack is warped, wobbly, missing, or difficult to slide

• Allow the oven to cool completely; wear gloves to protect hands.
• Pull the old rack to the stop, tilt the front up to clear the stop, and remove.
• Align the new rack with both side rails; insert the rear first, lower the front, and slide fully in.
• Refer to your owner's manual for recommended rack positions and any self-cleaning guidance.

The Oven Rack Slide Assembly is an OEM part for GE ovens. It provides the necessary tracks and fittings that allow for easy insertion and removal of oven racks during cooking.

Symptoms of bad rack slides include:

• Difficulty smoothly extending or retracting oven racks
• Racks failing to lock securely in desired positions
• Excessive noise or vibration noticed when racks move

Causes can be normal wear and tear of the metal rollers and tracks over many uses involving high temperatures. Grease buildup is also known to cause sliding and fitting issues.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore wall oven models.

The Door Hinge is an OEM part for GE gas ranges. It acts as the pivot point allowing the range door to smoothly and securely open and close.

Causes of a bad hinge include normal wear over time, damage from excessive door force, or broken coil springs/bearings in the hinge mechanism.

Symptoms of a bad door hinge can include:

• Resistance or difficulty smoothly opening and closing the door
• Noise, squeaking, or squealing coming from the hinge area
• Visual signs of damage or deformation of the hinge itself
• Improper alignment that prevents the door from fully closing

This OEM GE replacement hinge is also compatible with Hotpoint, RCA and select Kenmore gas range models.

This is a replacement drawer panel that restores the front face and appearance of your appliance drawer. Replaces a cracked, dented or worn front surface so the drawer looks and functions as intended. What it does:

• Replaces a damaged, dented or cracked drawer front for improved appearance
• Provides the finished exterior surface that the drawer slides and handle attach to
• Helps keep the drawer aligned and closing smoothly when installed correctly
• Restores original fit and finish without replacing the entire drawer assembly

• Disconnect power to the appliance before beginning work and remove stored items from the drawer.
• Installation typically requires removal of trim/fasteners and careful alignment of clips or screws—use basic hand tools.
• Handle any sharp edges carefully and avoid overtightening fasteners to prevent cracking.

The Oven Gasket Assembly is an OEM part for GE ranges. As the seal between the oven cavity and outer panel, this gasket plays a critical role isolating heat.

Causes of a bad gasket can include break down from prolonged exposure to high baking and broiling temperatures. General wear and cracking develops as it expands and contracts repeatedly during each cooking cycle.

Symptoms of a bad oven gasket assembly include:

• Inefficient or uneven cooking from heat escaping around edges
• Increased energy bills due to lost warm air
• Audible vibrations or squeaking when the oven door is moved
• Gaps appearing where the gasket has pulled away from mounting points

This genuine GE replacement gasket is compatible with Hotpoint, RCA and select Kenmore gas ranges as well.

This 10-24 machine screw secures panels and components on compatible appliances, restoring proper fit and preventing rattles or loose parts. Small, service-grade fastener for repeatable repairs and safe operation. What it does:

• Fastens control panels, trim pieces, brackets, or assemblies that use a 10-24 threaded screw
• Restores secure mounting when a screw is missing, stripped, or damaged
• Helps stop panel rattling, misalignment, or intermittent contact caused by loose parts
• Compatible with repair or replacement tasks requiring the standard 10-24 thread size

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct driver or socket to avoid stripping the head; do not overtighten
• Replace only like-for-like 10-24 fasteners to maintain proper fit and thread engagement
• If threads in the receiving part are damaged, repair or replace the mating component rather than relying on a longer or different screw

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

This replacement oven door window glass restores clear viewing into the oven and helps keep the door assembly performing as designed. Replace when the original pane is cracked, shattered, or permanently stained.

• Clear glass pane used in the oven door window assembly
• Lets you check food without opening the door
• Contributes to proper heat retention as part of the multi-pane door design
• Common failure signs: cracked/shattered glass, loose or rattling window, visibility obscured by damage

• Disconnect power at the breaker or unplug; shut off gas for gas ranges. Allow the oven to cool completely.
• Wear cut-resistant gloves and eye protection; handle glass carefully to avoid injury.
• Access typically requires removing the door and separating inner/outer panels; keep screws organized by location.
• Reinstall any spacers/seals in their original positions and avoid overtightening fasteners against glass.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement handle bracket that secures the oven door handle to the door assembly, restoring a solid, stable grip for opening and closing. Use this bracket to replace a cracked, loose or missing handle support. What it does:

• Secures the oven door handle to the door assembly so the handle stays tight and aligned
• Replaces cracked, bent or broken brackets that cause a loose or wobbly handle
• Helps prevent the handle from detaching during normal use
• Restores safe, confident operation when opening and closing the oven door

• Disconnect power to the appliance before beginning any repair.
• Access may require removing the oven door trim or handle screws—retain all fasteners for reassembly.
• Use the correct screwdriver or socket to avoid stripping screws; align bracket before tightening.

This silicon controlled rectifier (SCR) is an electronic switching component used on appliance control boards to regulate power to heating elements or motors, restoring proper control and operation when the SCR fails. What it does:

• Acts as a power-control switch on control boards to deliver variable current to heaters or motors
• Helps regulate on/off cycles and output under control-board commands
• Failure may cause no heat, intermittent heating, or components not running as expected
• Replacing a faulty SCR can restore consistent power control and appliance function

• Disconnect all power before servicing; risk of electric shock or damage
• Static-sensitive component—use proper ESD precautions when handling
• Replacement typically requires desoldering/soldering on the control board or replacement of the control module
