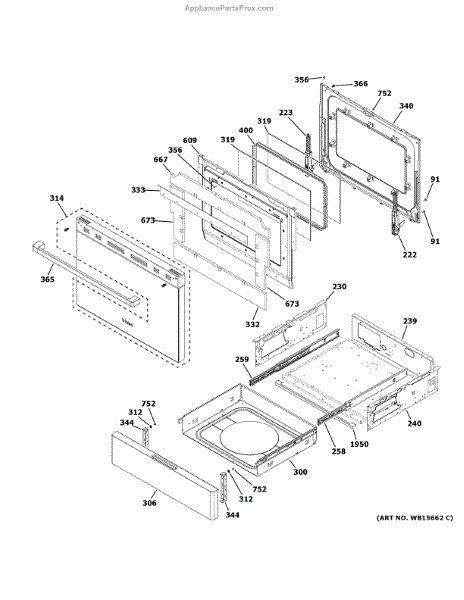

Parts for QSS740BN1TS: Door & Drawer Parts

The Door Hinge is an OEM part for GE gas ranges. It acts as the pivot point that allows the oven door to smoothly and securely open and close.

Symptoms of a bad hinge can include wear and tear over time, damage or bending due to excessive force applied while opening or closing the door, or failure of components that assist the door movement.

Symptoms of a bad door hinge include:

• The door becoming misaligned and no longer closing or sealing properly
• Difficulty or resistance when opening and closing the door
• Noise or squeaking coming from the hinge area
• Visual signs of damage or bending to the hinge itself

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The range door hinge is an OEM part for GE ranges. It acts as the pivot point that allows the range door to smoothly swing open and closed. The hinge must be durable enough to support the weight of the door during opening and closing motions, while also providing smooth movement.

Causes of a bad hinge can include normal wear and tear over time, repeated heavy use, or accidental damage. The stainless steel components that make up the hinge can become worn or misaligned.

Symptoms of a bad range door hinge include:

• Difficulty opening or closing the range door
• The door not sitting properly when closed or open
• Excessive noise or squeaking when operating the door
• The door unable to stay fully open or closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Left hand side

Right hand side

Right hand side

Left hand side

This contoured washer is a shaped fastening washer used on compatible GE top-load washers to secure and cushion mating parts. It helps maintain proper alignment and reduces wear where parts bear against each other. What it does

• Provides a contoured bearing surface to help distribute load and reduce point wear
• Cushions and isolates components to help limit vibration and noise
• Secures fasteners or assemblies in tight, shaped recesses
• Helps maintain correct part alignment for reliable operation

• One contoured washer

• Disconnect power to the washer before servicing to avoid shock or injury
• Use proper tools and observe orientation; tighten fasteners to manufacturer guidance

This is the outer glass and decorative panel assembly for your oven door, restoring the door's appearance and protecting the inner components. Replaces a cracked, chipped or damaged outer door glass to help maintain a proper seal and look. What it does:

• Replaces the outer oven door glass and front panel to restore the door's exterior and help protect the inner door layers.
• Common symptom: cracked, shattered or visibly damaged outer door glass.
• Common symptom: loose or rattling front panel or visible cosmetic damage.
• Helps maintain the door's appearance and prevents further damage to inner layers when intact.

• Turn off and disconnect electrical power and gas supply before starting any repair.
• Handle glass carefully and wear cut-resistant gloves and eye protection; glass edges may be sharp.
• Some models require removing the door and using basic hand tools; two people may be helpful for safe handling.
• Follow the oven's service manual or OEM instructions for proper removal and reassembly.

This replacement oven door window glass restores clear viewing into the oven and helps keep the door assembly performing as designed. Replace when the original pane is cracked, shattered, or permanently stained.

• Clear glass pane used in the oven door window assembly
• Lets you check food without opening the door
• Contributes to proper heat retention as part of the multi-pane door design
• Common failure signs: cracked/shattered glass, loose or rattling window, visibility obscured by damage

• Disconnect power at the breaker or unplug; shut off gas for gas ranges. Allow the oven to cool completely.
• Wear cut-resistant gloves and eye protection; handle glass carefully to avoid injury.
• Access typically requires removing the door and separating inner/outer panels; keep screws organized by location.
• Reinstall any spacers/seals in their original positions and avoid overtightening fasteners against glass.

This liner door weld assembly replaces the damaged or separated inner door liner to restore door strength and alignment. It provides a solid mounting surface and helps the door close properly for reliable operation. What it does:

• Replaces cracked, bent, or separated inner door liner caused by impact or wear
• Restores structural support and mounting points for door components
• Helps eliminate gaps, rattles, or misalignment that can affect door closure
• Returns the door to its intended shape so seals and latches engage correctly

• One liner door weld assembly

• Disconnect power to the appliance before starting any repair
• Handle sharp sheet-metal edges with care and wear gloves and eye protection
• May require partial door disassembly and common hand tools; follow the OEM service instructions

This drawer bracket secures and supports a refrigerator/ freezer drawer, restoring proper alignment and load-bearing at the front or side mounting point. It's a simple replacement that helps the drawer open and close smoothly. What it does:

• Holds and supports the drawer to prevent sagging or tipping under normal loads
• Keeps the drawer aligned on its track for smooth operation
• Restores proper engagement with the cabinet so the drawer seats and latches correctly
• Helps prevent binding, catching, or uneven gaps when opening or closing

• Disconnect power to the appliance before servicing and work with the drawer empty.
• Remove the drawer and any trim as needed to access the bracket; use appropriate hand tools (screwdriver/socket) for fasteners.
• Reuse existing screws only if undamaged; replace fasteners if stripped or corroded.
• Align the bracket carefully before tightening to avoid binding; do not force or overtighten plastic components.

Size: 10-32 GXTT FLP.595 S

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly
