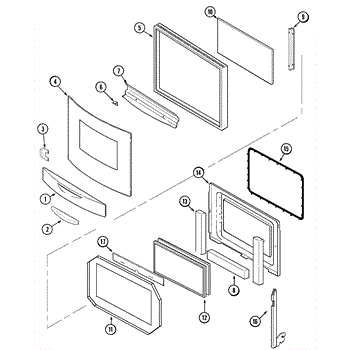

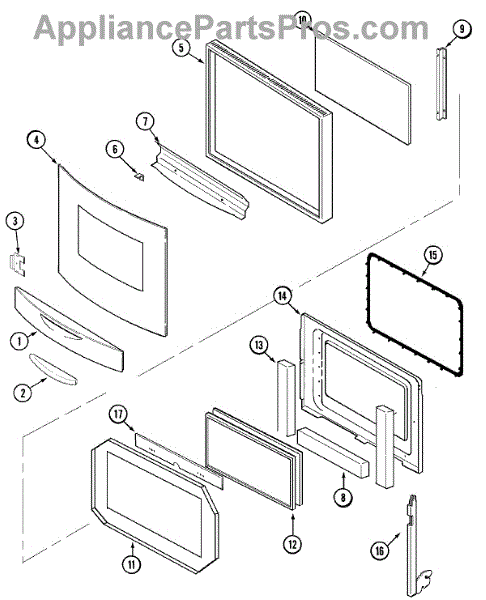

Parts for Jenn-Air JMW9527CAQ: 03 - Door Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Biscuit. For black order WP98008545. For white order WP98008544.

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 10-32

A replacement oven door seal that restores a tight gasket between the oven and door. It helps prevent heat loss, reduce uneven cooking and keep the exterior cooler for safer, more consistent results. What it does:

• Creates an airtight seal between the oven cavity and door to reduce heat escape.
• Helps maintain stable cooking temperatures to minimize hot spots and uneven baking.
• Stops smoke or fumes from leaking around the door during use.
• Visible signs of failure include tears, compressed or brittle material, and gaps along the door edge.

• Disconnect power (or gas supply) and allow the oven to fully cool before starting work.
• Handle the gasket gently to avoid tearing; align and seat it into the door channel per the OEM pattern.
• Some models require removing the oven door or retaining clips — keep and reuse any factory fasteners when possible.
• Refer to the appliance's OEM service instructions for model-specific removal and reinstallation guidance.

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part

The Oven Door Hinge is an OEM part for Whirlpool wall ovens and ranges. Located on both sides of the oven door frame, these metal hinges provide the pivoting connection that allows smooth opening and closing of the door during cooking cycles.

Causes of failure can include wear of the hinge joints from repeatedly bearing the weight of the heavy oven door over thousands of uses. Exposure to high heat during cooking may gradually deteriorate lubricating grease or materials.

Symptoms of faulty hinges include:

• Door rubbing or sticking during opening/closing
• Off-center alignment when shut or inability to fully latch
• Noisy squeaking or grinding emerging from hinges
• Hinges loosened from screws/fastenings or mechanisms seized

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

If looking for Clock please use Item Number: AP4097546 Manufacturer's Number: 74009196 (74009196) Made by Whirlpool
