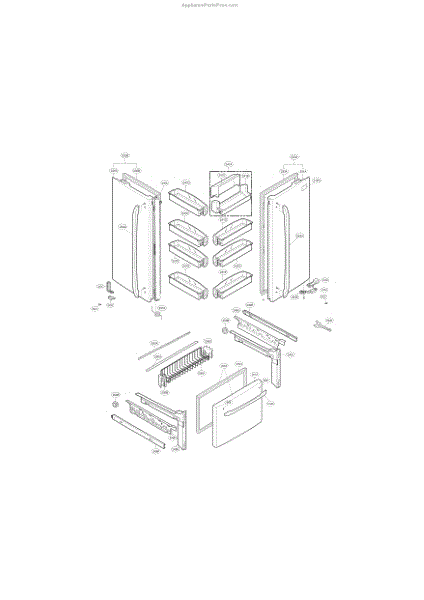

Parts for Kenmore 795.71603014 (79571603014, 795 71603014): Door Parts

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

The Freezer Door Gasket is an OEM part for LG side-by-side and bottom-freezer refrigerators. This gasket forms an important insulating seal around the freezer door compartment, preventing warm air from entering the sealed interior. Maintaining proper freezing temperatures depends on an intact door gasket.

Causes of a bad freezer door gasket can include cracks, deterioration, or compression from repeated opening and closing of the freezer door over time. Food debris trapped against the gasket rim can also damage sealing integrity.

Symptoms of a bad freezer gasket include:

• Difficulty closing or sealing the freezer door properly
• Warm air leaking into the freezer sections
• Frost and ice buildup occurring faster than usual
• Higher energy bills from the freezer running excessively

This replacement freezer door gasket from LG is also compatible with some Kenmore-brand refrigerators.

This genuine replacement basket door assembly restores a dishwasher's silverware basket closure so utensils stay secure during wash cycles. It replaces a broken, cracked, or missing basket door to keep small items contained. What it does:

• Replaces the small hinged door on the silverware basket that opens and closes for loading.
• Keeps forks, knives and spoons from falling out or shifting during a cycle.
• Prevents small items from interfering with spray arms and wash performance.
• Helps the basket maintain its intended fit and alignment in the lower rack.

• One basket door assembly as shown.

• Disconnect power to the appliance before starting any repair.
• Remove the lower rack to access the silverware basket and replace the door; no special tools usually required.
• Inspect hinge clips or pins for wear and replace if damaged to ensure proper operation.

Left Hand side

Right Hand side

The Refrigerator Door Gasket is an OEM part for LG refrigerators. It's designed to create an airtight seal around the refrigerator door, preventing warm air from entering and cold air from escaping. The gasket is made from a flexible material that conforms to the door's edges, ensuring a snug fit against the refrigerator frame.

Causes of a bad door gasket include frequent opening and closing of the refrigerator door, exposure to harsh cleaning chemicals that can degrade the material, and natural wear and tear.

Symptoms of a bad Refrigerator Door Gasket include:

• Condensation or frost buildup near the door edges.
• The refrigerator runs more frequently or for longer periods.
• A noticeable increase in your electricity bill.
• The gasket feels brittle or has visible cracks, tears, or gaps.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Refrigerator Door Gasket is an OEM replacement part for LG refrigerators. It is a crucial component that seals the gap between the refrigerator door and the main body, creating an airtight seal to maintain the desired temperature and humidity levels inside the appliance. It has approximate dimensions of 2" x 41" x 20".

Symptoms of a bad refrigerator door gasket include:

• Warm air leaking into the refrigerator compartment
• Excessive frost or ice buildup in the freezer
• Condensation forming on the interior walls or shelves
• Higher energy consumption due to the refrigerator working harder to maintain the set temperature

Causes of a bad door gasket can include physical damage, such as tears or cracks, due to impact or wear and tear over time. It can also become stiff or lose its pliability, preventing a proper seal.

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

The Refrigerator Door Shelf is an OEM component for LG refrigerators. It provides useful storage space directly on the refrigerator door. This shelf's wire construction allows for versatile item organization while occupying minimal space.

Causes of a bad door shelf can include warping or cracks due to temperature fluctuations over time. Improper cleaning can also damage shelf surfaces.

Symptoms of a failed door shelf include:

• Gaps or separation where the shelf meets the door
• Loss of integrity making the shelf unable to securely hold items

This genuine LG shelf  is compatible with LG and Kenmore French door, side-by-side, and bottom-freezer refrigerator models utilizing a similar door shelf design.

The Refrigerator Door Shelf is an OEM part for LG refrigerators. This component is designed to fit snugly into the door of the refrigerator, providing convenient storage space for frequently accessed items such as drinks, condiments, and snacks. The shelf measures about 15 inches wide, 3 inches high, and 8 inches deep, providing plenty of storage space.

Symptoms of a failing Refrigerator Door Shelf include:

• The shelf becoming loose or failing to hold items securely
• Cracks or breaks in the shelf, which compromise its load-bearing capacity
• Sagging or bending of the shelf, particularly when loaded with heavier items
• Difficulty in fitting the shelf into its designated slots on the refrigerator door

Causes of a bad door shelf can include overloading beyond its weight capacity, frequent adjustment or removal of the shelf, or material fatigue from regular use and exposure to temperature variations within the refrigerator.

This OEM LG part is also compatible with Sears/Kenmore models.

STOPPER ASSEMBLY,DOOR

This hinge cam fits the door hinge and provides the lift/settle action that helps the door open and close smoothly. Replacing a worn cam can reduce clicking and restore consistent door movement and alignment.

• Provides cam action at the hinge for smooth door travel
• Helps the door seat closed and maintain alignment
• Common symptoms include clicking/knocking at the hinge, rough or uneven door movement, or slight door sag
• Visual wear such as flat spots or grooves on the cam is a typical failure sign

• Disconnect power to the appliance before servicing
• Support the door to prevent injury; remove hinge cover and hardware as needed
• Note the cam's orientation and any washers/spacers and transfer them to the new part
• After installation, verify door operation and gasket alignment; adjust hinge if needed

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This connector cover is the small trim piece that shields and conceals the connection area on your refrigerator. Replacing a cracked or missing cover restores a clean, finished look and helps protect connectors from dust and accidental snags.

• Covers and protects the wiring and/or tubing connector cavity
• Helps keep debris out of the connection area
• Maintains proper routing and prevents snagging of harnesses
• Common signs it's needed: cracked or missing cover, exposed connectors, cover won't stay attached, cosmetic damage

• Disconnect power and turn off the water supply before beginning
• Remove any retaining screw(s) or release tabs to take off the old cover
• Position the new cover, ensuring wires/tubing aren't pinched; secure with original hardware
• Restore power/water and confirm the cover is fully seated

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This spanner is the specialized hand tool used to turn and hold slotted nuts, collars, or fittings on compatible appliances, making service and adjustments easier and safer. It gives a secure grip for loosening or tightening components without damaging surrounding parts. What it does:

• Fits and turns slotted or notched appliance fasteners and collars commonly used in assemblies
• Helps hold a component steady while you loosen or tighten the mating fastener
• Reduces slippage and tool marks compared with pliers or improvised tools
• Useful during maintenance tasks such as removing retaining rings, collars, or adjustable fittings

• One spanner tool

• Disconnect power and/or gas and follow all safety precautions before servicing appliances
• Use the correct size spanner engagement to avoid slipping or rounding the fastener
• Apply steady force; do not use cheater bars or excessive torque unless specified by the manufacturer

The Flapper Door Spring is an OEM part for LG refrigerators, designed for the ice dispenser's flapper door mechanism. This spring plays a role in ensuring the flapper door opens and closes properly, providing a tight seal when the ice dispenser is not in use.

Over time, the flapper door spring can lose tension or break due to fatigue or corrosion, leading to issues with the flapper door's operation.

Symptoms of a bad Flapper Door Spring include:

• The flapper door on the ice dispenser fails to close completely
• Ice or frost buildup around the dispenser area
• Difficulty dispensing ice
• Increased energy consumption as the refrigerator works harder to maintain its set temperature

This OEM LG part is also compatible with some Kenmore models.
