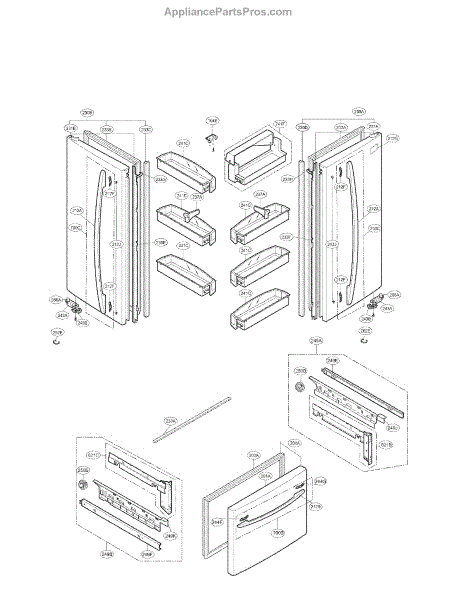

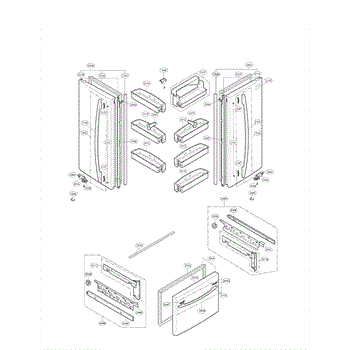

Parts for Kenmore 795.77309601 (79577309601, 795 77309601): Door Parts

This refrigerator door gasket creates an airtight seal between the door and cabinet to keep cold air in and moisture out. Replace a worn or torn seal to restore cooling performance, reduce frost, and prevent temperature fluctuations.

• Forms a continuous seal around the door perimeter to minimize air leaks
• Helps maintain proper temperatures and humidity inside the refrigerator
• Common failure signs: gaps, tears, or hardened/warped corners
• Symptoms may include doors not closing flush, condensation or frost buildup, and longer run times

What's included: 1 door gasket assembly Installation notes:

• Unplug the refrigerator before servicing
• Warm the new gasket in hot water or with a hair dryer on low to improve flexibility
• Pull the old gasket from the retainer channel; press the new gasket into the channel, starting at the corners
• Close the door and check for uniform contact all around; re-seat and adjust as needed

This replacement cover is an exterior access panel that protects internal components and restores the appliance's finished appearance. It keeps wiring and mechanisms enclosed while maintaining the cabinet's original look. What it does:

• Covers and protects internal components from dust, spills, and accidental contact
• Restores the appliance's cosmetic appearance when the original cover is cracked, chipped, or missing
• Helps maintain proper airflow routing and component spacing behind the panel
• Prevents small objects from entering service areas that could cause damage

• One replacement cover

• Disconnect power and water before starting any repair
• Remove fasteners or release retaining clips holding the old cover; keep hardware if re-using
• Align the new cover carefully and secure with the original screws or clips; do not force into place
• If clips or mount points are damaged, replace them before finishing installation

The Gasket Holder is an OEM replacement part for LG refrigerators. It is inside the freezer door and functions to securely seal in cold air. The holder provides a mounting point and compression fit for the door gasket, preventing air leakage along the perimeter.

Symptoms of a bad gasket holder include:

• Cold air escaping around the door seal
• Frost or moisture buildup near the gasket area
• The door not shutting tightly

Note: About 38.5" long

Over time, the holder's mounting points can warp or weaken from repeated opening and closing of the freezer door. This allows for gasket movement and compromised sealing.

This replacement is compatible with Sears/Kenmore models as well.

The Left Door Closing Cam is an OEM replacement part for LG refrigerators. It is a mechanical component located on the inside of the refrigerator door that works with the door closing mechanism. The door closing cam helps ensure the refrigerator door closes and seals properly each time.

Causes of a bad door closing cam can include wear and tear over time, damage from repeatedly closing the heavy refrigerator door, or misalignment affecting the door seal.

Symptoms of a bad door closing cam include:

• The refrigerator door not sealing tightly when closed
• Difficulty closing or opening the door
• Excessive movement or wobbling of the door
• Cool air escaping around the door seal

This OEM LG part is also compatible with Sears/Kenmore fridges.

The Door Closing Cam is an OEM replacement part for LG refrigerators. Positioned at the lower hinge of the right side refrigerator door, this cam assists in the smooth and controlled opening and closing of the door. It ensures that the door closes securely to maintain the internal temperature and energy efficiency of the appliance.

Causes for a malfunctioning Door Closing Cam can include wear and tear from frequent use, damage incurred from forceful opening or closing of the door, or issues with the alignment that prevent the cam from operating smoothly.

Symptoms of a bad Door Closing Cam include:

• The refrigerator door not closing securely
• A sagging or misaligned door
• Unusual noises when opening or closing the door
• Difficulty in opening or a lack of smooth motion when closing the door

This OEM LG part is also compatible with Sears/Kenmore models.

The Door Basket Assembly is an OEM part for LG refrigerators. It is designed to provide additional storage space on the refrigerator door, allowing for the convenient organization of smaller items like condiments, beverages, and snacks. The bin has dimensions of approximately 13 inches in width, 3-1/2 inches in height, and 7 inches in depth.

Causes of a bad door basket assembly can include wear and tear over time, damage from overloading, or accidental impacts that can crack or break the basket.

Symptoms of a bad door basket assembly include:

• Cracks or visible damage to the basket
• Difficulty in securely holding items
• The basket detaching from the door

This OEM LG part is also compatible with Sears/Kenmore.

The Door Stopper is an OEM part for LG refrigerators. It is a component located at the top of the refrigerator door frame. The stopper functions to securely cushion the door in the open position, preventing damage from accidental closing.

Causes of a faulty stopper include wear from the door repeatedly contacting the part during normal use. Forceful door incidents could also bend or loosen the stopper over time.

Symptoms of a problematic door stopper are:

• The door not staying firmly in the open position
• Increased noise or vibration from the door while open
• Potential damage from an unrestrained door closing

This OEM LG part is also compatible with some Kenmore models.

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This connector secures and transmits motion between the drawer drive and the sliding assembly, restoring smooth drawer movement and alignment. It's a direct-fit replacement that helps fix sticking, slipping, or non-moving drawers. What it does:

• Couples the drawer drive mechanism to the sliding gear, allowing the drawer to open and close reliably
• Replaces worn or broken connector teeth or mounts that cause skipping or jammed operation
• Helps correct uneven or noisy drawer movement caused by damaged linkage
• Restores proper engagement so the drawer responds to normal open/close controls

• One connector as shown

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Inspect surrounding gears, tracks, and mounting points; replace any damaged parts for best results
• Basic hand tools are typically required; handle plastic gears carefully to avoid further damage

This is a ring intended for use in refrigerators. The ring is used to adjust the height of the door. Genuine OEM replacement rings are necessary for the repair to ensure a proper fitting.If the refrigerator door no longer opens or closes easily, or if it is not sealing properly, the rings may need to be replaced. Visual inspection can determine if there are problems with the refrigerator door rings. Make sure to unplug the device before starting any of the disassemblies of the machine. Wear gloves.This ring is an authentic OEM replacement part. It is sold as an individual unit. The ring is made of high-quality, durable materials. The replacement piece is sourced directly from the manufacturer. It can be installed in several models of refrigerators. The genuine OEM replacement ring is compatible with refrigerators produced by both LG and Kenmore.

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.
